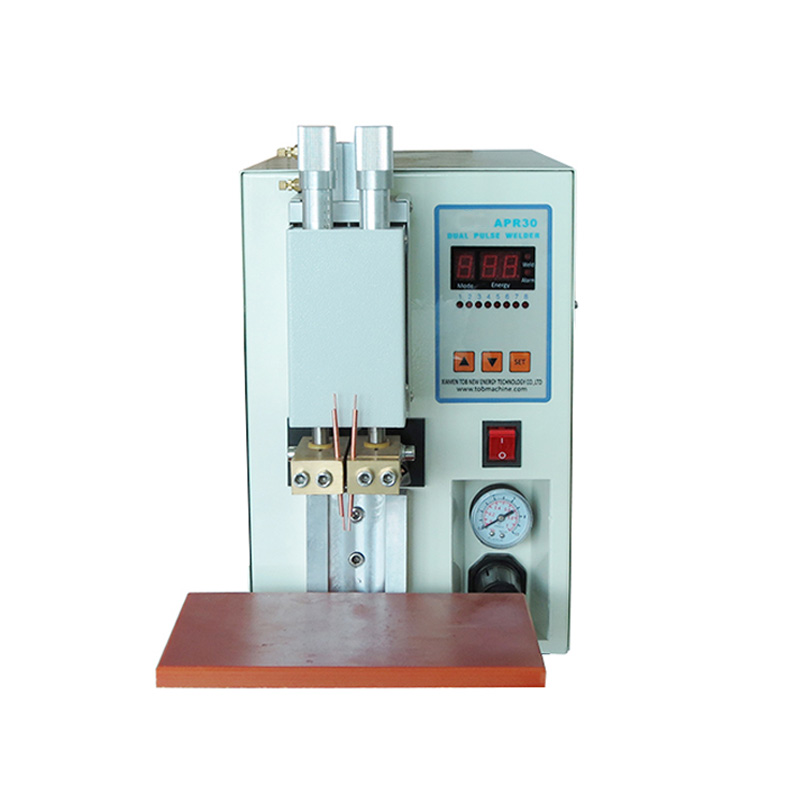

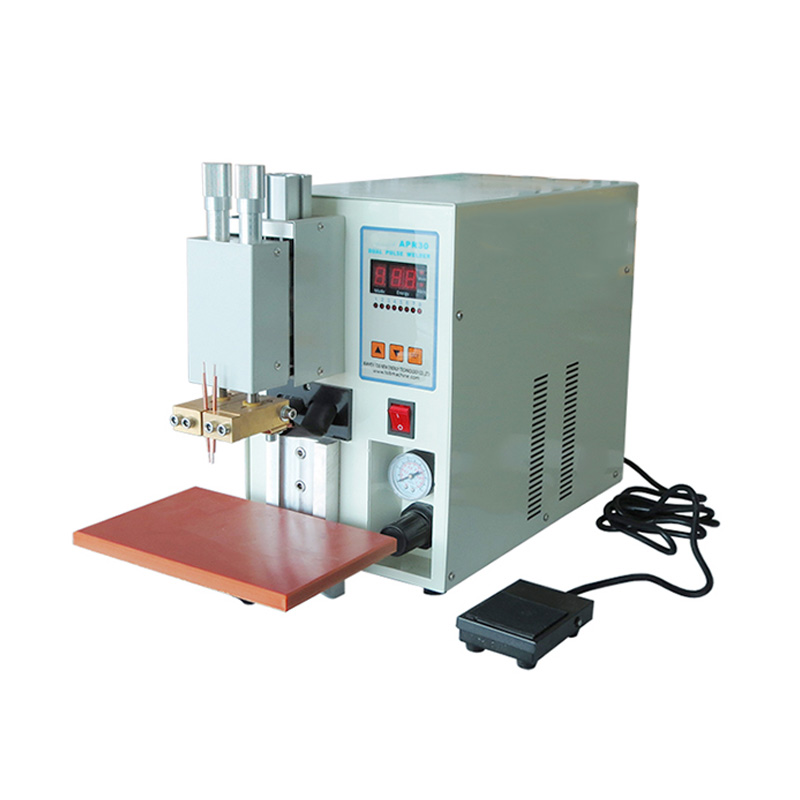

Highly Effective Precision Double Pulse Pneumatic Battery Spot Welding Machine
Introduction:

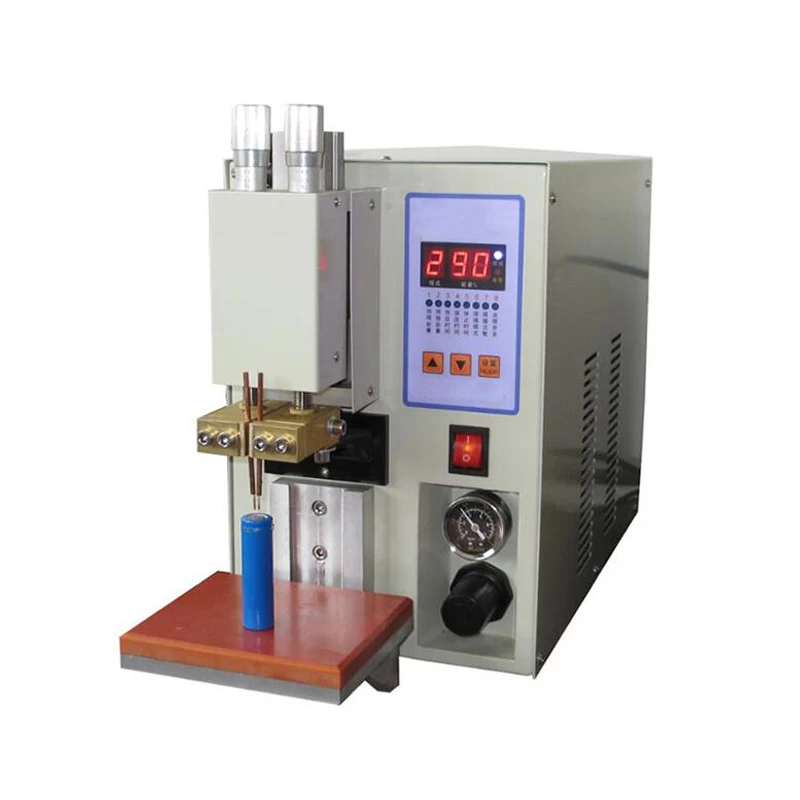

This pneumatic spot welder machine is mainly used for cylindrical battery nickel tab welding, suitable for 0.02-0.2mm welding thickness. It can also used for 18650 21700 32650 small battery pack welding with good welding effect.
Features:

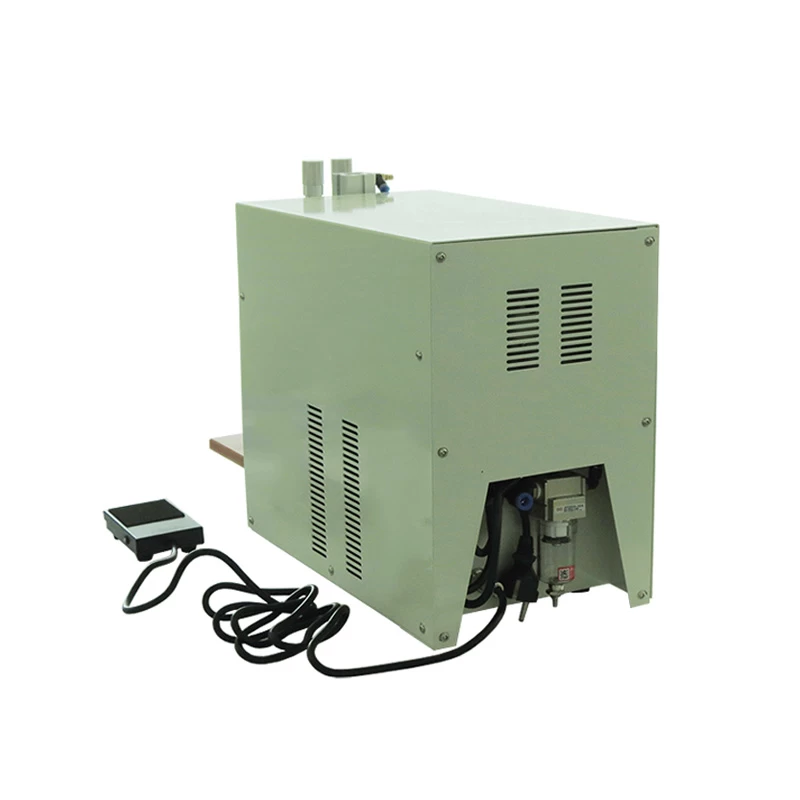

The Pneumatic model is with smaller volume and weight, easy for international shipping.
1 Microcomputer control, CNC current adjust
2 High precision welding power
3 Digital tube display, keyboard control, welding parameters flash storage.
4 Double pulse welding, make welding more firmly.
5 Small welding sparks, solder joint uniform appearance, the surface is clean
6 Welding times can be set
7 Can set preloading time, the holding time, time to rest, the welding speed can be adjusted.
8 Large power, stable and reliable.
9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.
Specifications:
|
Model
|
Small Battery Spot Welding Machine AOT-ARP30
|
|
Voltage supply
|
AC 220V±10% 50Hz±2Hz
|
|
Drving Power
|
Pneumatic
|
|
Welding current
|
3000A
|
|
Welding power
|
0-99% adjustable
|
|
Welding method
|
Double pulse
|
|
Maximum output power
|
15KVA
|
|
Welding way
|
Ordinary welding and continuous automatic welding
|
|
Time setting
|
0-2.55s
|
|
Counting function
|
Automatic
|
|
Weight
|
28KG
|
|
Dimensions(L*W*H)
|
470mm*220mm*320mm
|
|
Warranty
|
One year with life time support
|
