High quality and factory price precision current transformers, we can design current transformers to meet customer's needs. Samples can be sent in 5 days, if samples approved your testing, then we can began from small order to big order, from this process, you can get to know our company.
Quick Details
|

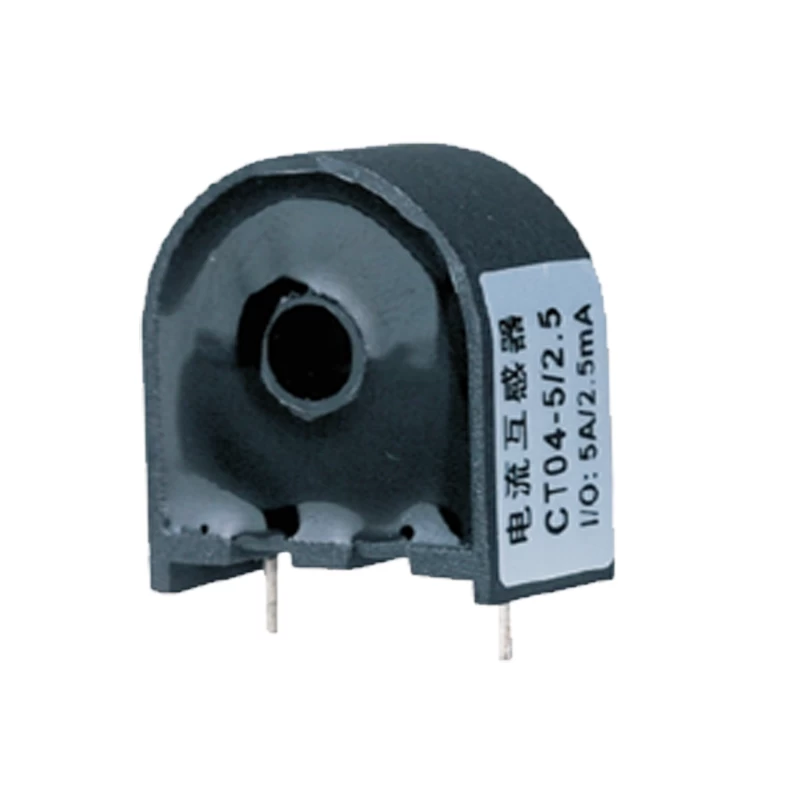

Part No: MCT04A05V Precision Current Transformer
|
|
Brand name: MCT
|
|
Operating temperature：-40°C~50°C
|
|
Custom made: Available
|
|
Storage temperature:-40°C~70°C
|
|
Logo: Can be customized
|
|
Relative humidity:10~95%
|
|
Packing: Carton, can custom
|
|
Rated input current:5A
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: Precision Electronically Compensated Current Transformer
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems.Measuring instruments.Relay protection.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT04A05AV
|
5A/2mA
|
0.5
|
0~15A
|
≤15’
|
≤200Ω
|
3000V
|
Φ4.70
|
|
MCT04A05BV
|
5A/2.5mA
|
0.5
|
0~15A
|
≤15’
|
≤200Ω
|
3000V
|
Φ4.70
|
|
MCT04A05CV
|
5A/5mA
|
0.5
|
0~10A
|
≤15’
|
≤50Ω
|
3000V
|
Φ4.70
|

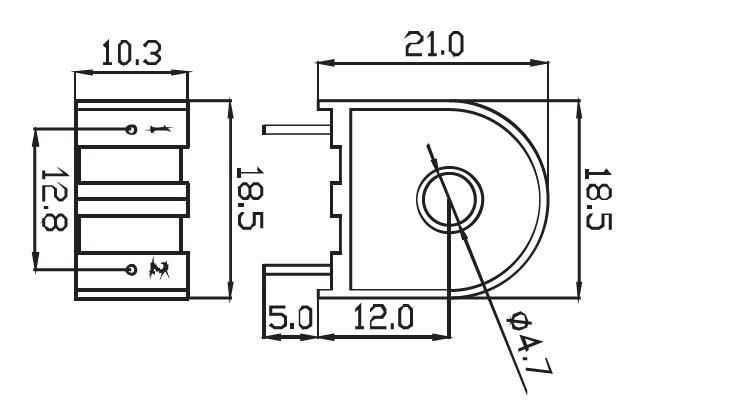

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PM.
Welcome customized type requirements.
More details, welcome to contact us.
