Precision Lab CR20XX Coin Cell Disc Cutter with Optional 6-24mm Punching Die
FAQ
Q:We are using for laboratory coin cell research, what’s your suggestion for diameter of cutting die?
A:Generally speaking, for CR20XX series button battery research, we will choose 14mm-18mm diameter electrode cutting die and 19mm or 20mm cutting die for battery separator.
Q: Do you have any recommendations for the maintenance of the equipment?
A: The most important thing is keeping equipment clean, and avoiding the equipment be rusted, especial the cutting die.
Brief Introduction:

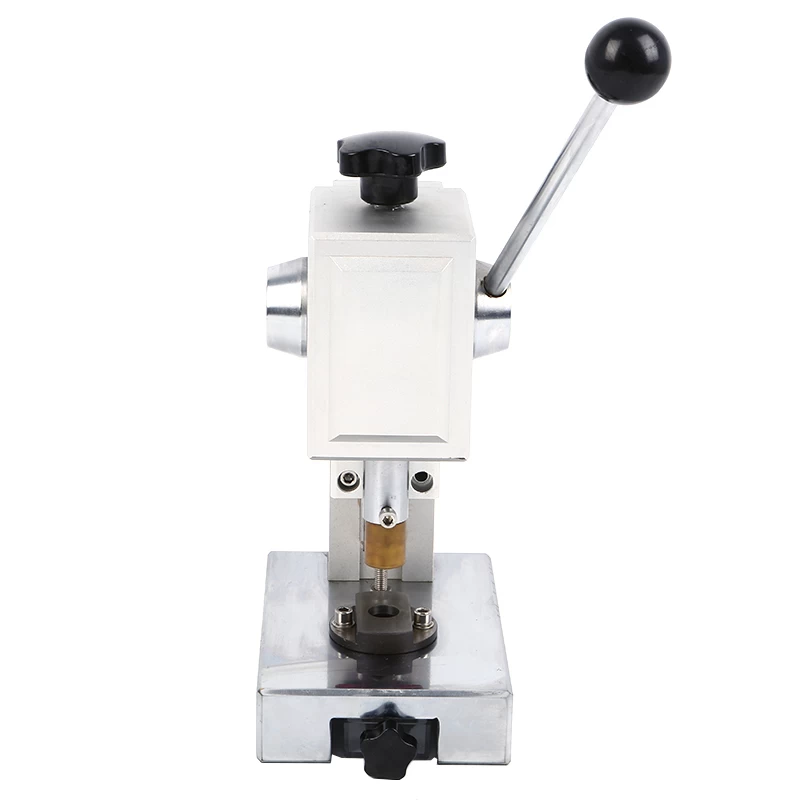

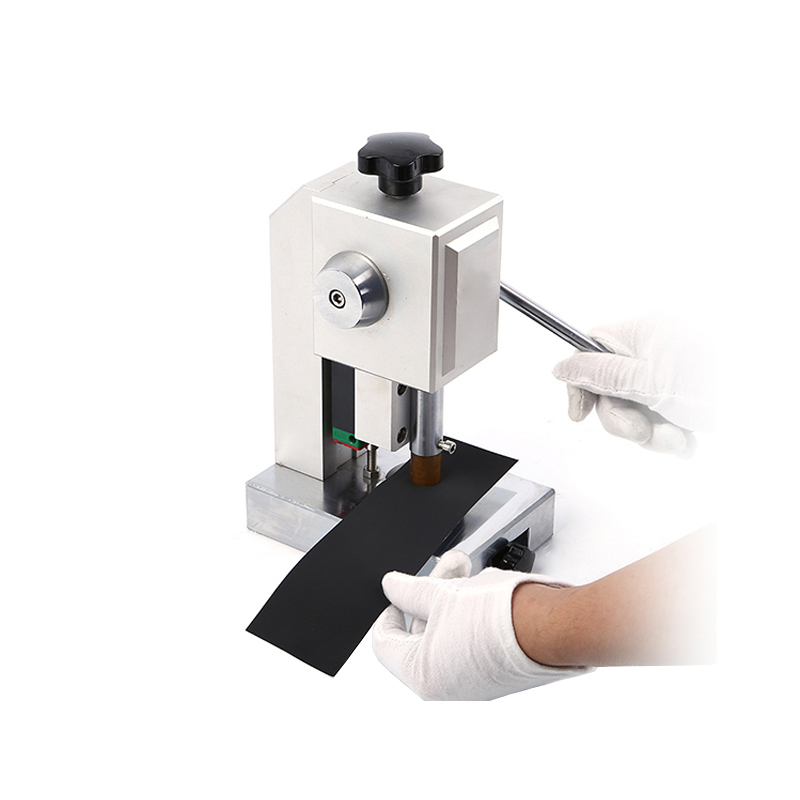

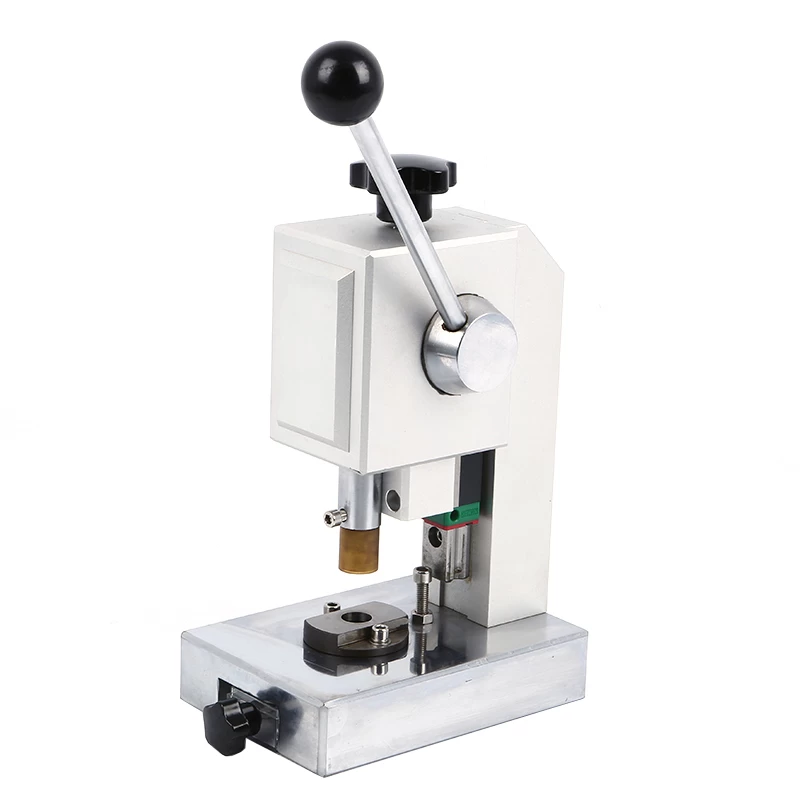

AOT-CP60 button battery punching machine is a patented product independently developed by AOT ELEC Company. It is specially used for coin cell electrode and battery separator round disc cutting. It can punching and blanking on the sheet material with 6-24mm diameter molds. The whole machine is compact in design and flexible in use. It is very suitable for laboratory battery electrode sheet blanking on cathode, anode and PP/PE separator with 0.001-0.5mm thickness.
Features :
1. High accuracy ,no burrs,rag andindentation .
2. It can cut various of battery materil with thinkness 0.001-0.5mm .
3.Compact size,easily operating, quick and flexible use in the glove box.
4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.
|
Machine model
|
Disc cutter for coin cell electrode and separatorpunching AOT-DC60
|
|
Operating
|
By Hand
|
|
Punching size
|
Recommend configuration: φ15mm electrodepunching die andφ19mm separator cutting die. (φ6-24mm customized)
|
|
Laboratory use
|
For making CR20xx series buttonbatteries,
we suggest you can choose three cutting dies:
A 15mm (for negative side case, which is 16.5mm in diameter)
B 19mm (for positive side case, which is 20mm in diameter)
C 20 mm (for separator to fully separate the electrodes)
For CR2450 coin cell:
20mm cutting die is used for cutting electrode disc;
24mm cutting die for either electrode or separator disc.
|
|
Punching stroke
|
Max 30mm
|
|
Punching thickness
|
0.005-0.5mm electrode and separator
|
|
Advantages
|
Simple operation
Light weight
Can both cut electrode and separator
|
|
Dimension(L*W*H)
|
110mm*150mm*220mm(without handle)
|
|
Net weight
|
About 7kg
|
|
Package weight
|
Carton box 10KG
|
|
Warranty
|
One year limited with life time technical support
|
