We design, manufacture and install steel structure house and prefab house.


Our products include prefab house,container house, modified shipping container house,steel structure frame, steel structure workshop, steel structure warehouse,light steel villafolding house, H section steel structure, modular container house,prefab villa.

About our factory

Location Hebei Province, 250km to Beijing airport, 200km to Tianjin Xingang port
History In designing and making prefabricated house & steel structure workshop for more than 10 years
Employees 102 person
High grade Engineer 5 person
Engineer 5 person
Administrator 12 person

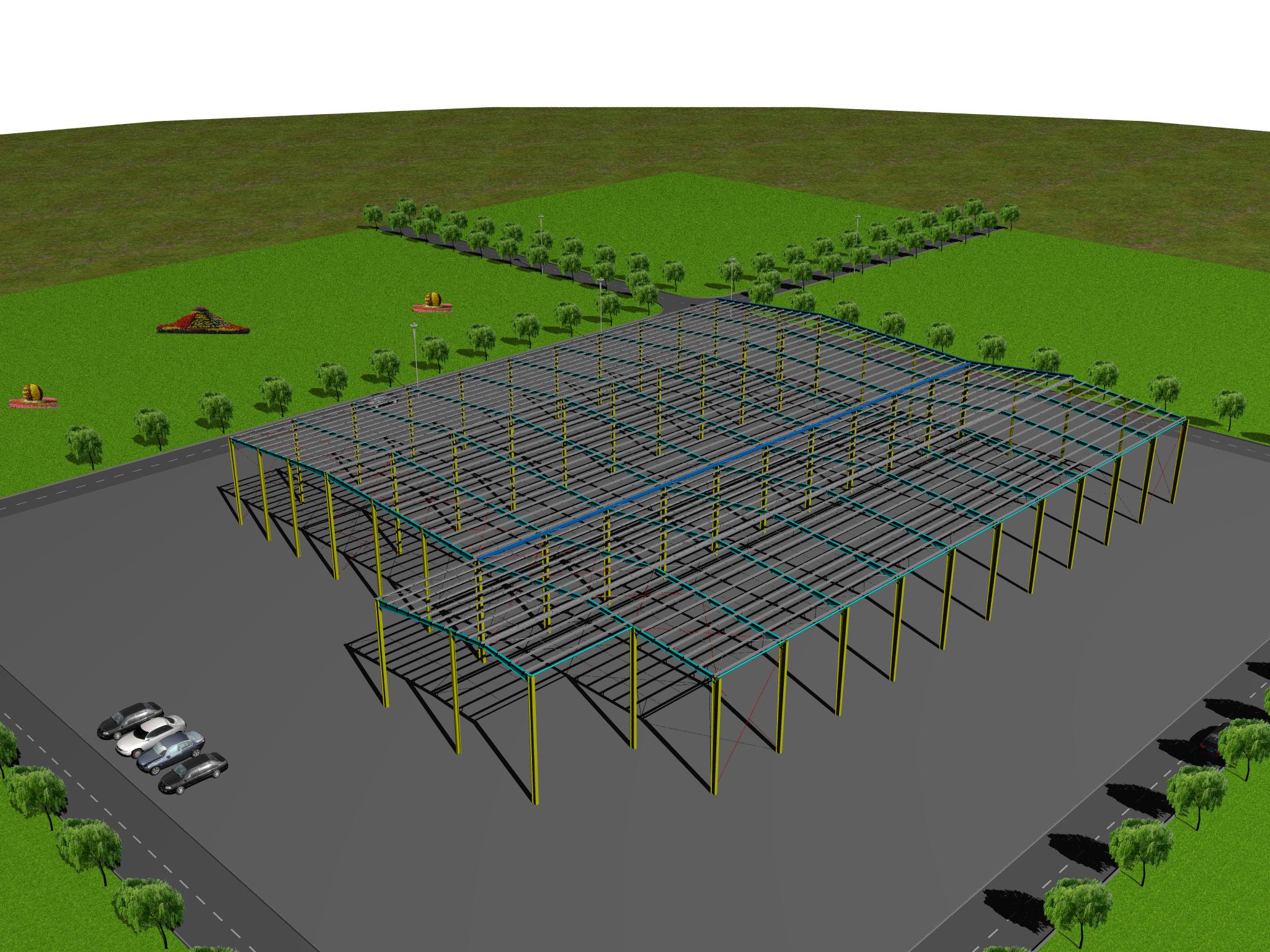

steel structure workshop

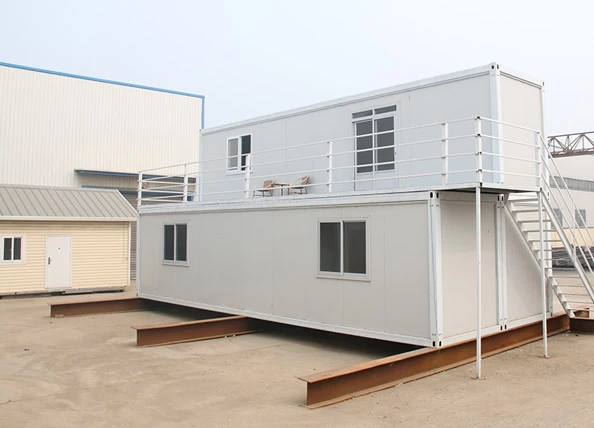

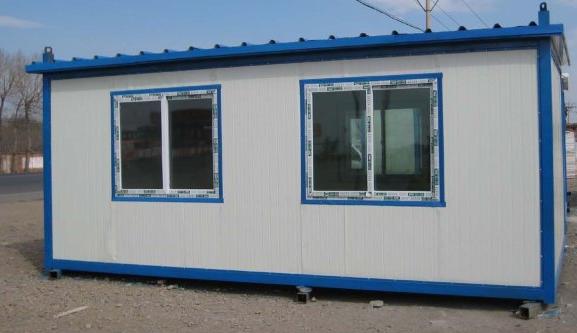

Prefab Steel container house

FAQ

1.Steel structure house includes which components?

 Main steel structures(H beam ,Box Beam, Trusses),

 C purlins,Z purlins,

 Aluminum/PVC door & window,

 Ventilation,

 Fastener (Anchor bolt, High strength bolt, Self-tapping screw), etc.


2.You usually use which raw material to make prefab home or steel structure plant?

Item No. Name Raw material
1 Roof PU / EPS / rock wool / glass wool sandwich panel for option    Thickness: 20 / 50 / 75 / 100 /150 / 200 mm foroption
2 Wall PU / EPS / rock wool / glass wool sandwich panel foroption      Thickness:50 / 75 / 100 /150 / 200 mm foroption
3 Indoor floor board for 2-3 floors buildings 15mmplywood / 18mm calcium silicate board / 18mm cement-fibre board    Or customize
4 Structure Angle steel and profile steel
5 Door Composited steel sandwich panel door or customized
6 Window Alu-alloy window or PVC window for option
7 Connection High tensile strength bolts

staircase Comprise of steel structure


3. Application notice about steel structure modular house

1). Please don't change the structure, don't pick out any screws or parts and don't increase or decrease any partitions after the installation. If really necessary, you must get our agree to avoid any safe accident.



2). The light steel parts should paint every one to two years in order to keep it's service time longer and the external appearance looks as good as new.



3). Prefabricated house is the whole connection of steel construction parts. If you want to use the electricity facilities, please don't bond the lines directly onto the steel structure.


4. What is the advantage of the steel structure house?

1)Lower cost than traditional brick house

2)Fast assembling.

3)Sound insulation

4)Voice insulation

5)Earthquzke – resistance

6)Breeze- resistance

7)Anti- flame

8)Environment-Friendly

9)Raw material recycling 100%


5. How to make Steel modular house?

1).Steel Framework welding

Welding for Peripheral Underpan Steel framework. Use 140*50 channel steel to weld. If the  container house is 3m x 6m, the Peripheral underpan beam uses 4 x 8 x 2 square steel to be welded, the space between the steel beam  is  35cm, 6pcs beam and ring beam of the roof are all 5 x 5 x 2.0 square steel welded.

2). Color steel sandwich panel jointing.

The wall panel and roof panel of the prefabricated house  uses 50mm thickness sandwich panel ,both sides are white, the window is 930 x 1000mm sliding window, the door is color steel door, the size is 930 x 2000mm, the underpan use 18mm building template,in this case, per square meter can bear 200kg.

3). Floor the prefab house .

4). Install lightingfacilities, air conditioner holes.

5). Install security mesh and gap sealing treatment,anti-water gluing.


6.How to get an effective price for the steel structure house?

 how to get an effective price for steel structure house?
