Coloured corrugated wall sheet characteristics
☆ This corrugated sheets are available in long sheet lengths and a big range of colours;
☆ The steel cladding with enduring style,and make your builidng is always in fashion;
☆ CGI Corrugated steel sheet has the advantage of high strength, adaptability and easy handling and installation;
☆ It is a practical and versatile cladding solutions for roofing, walling and fencing,with its special appearance.
Corrugated aluminium roofing application

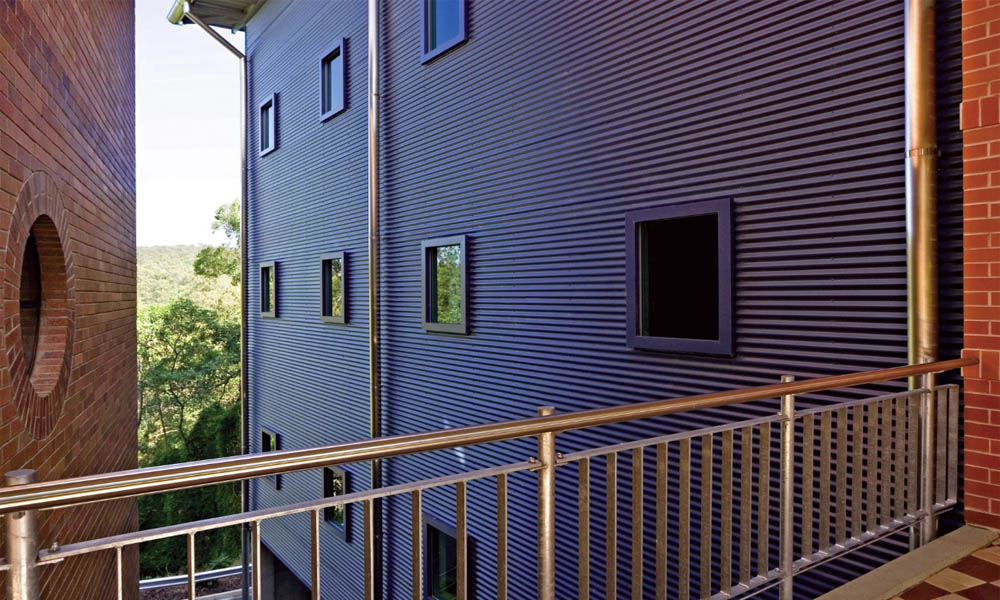

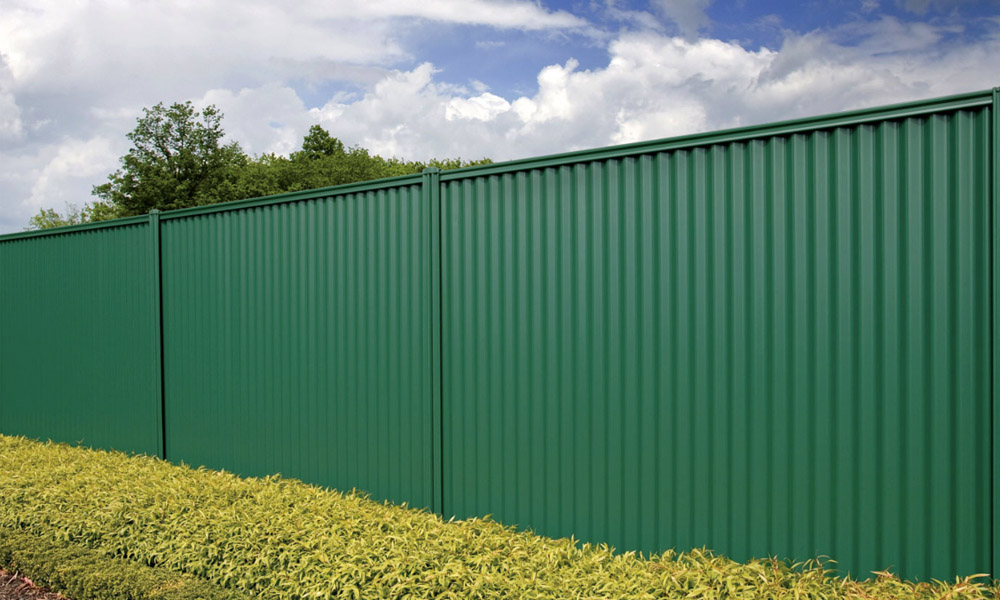

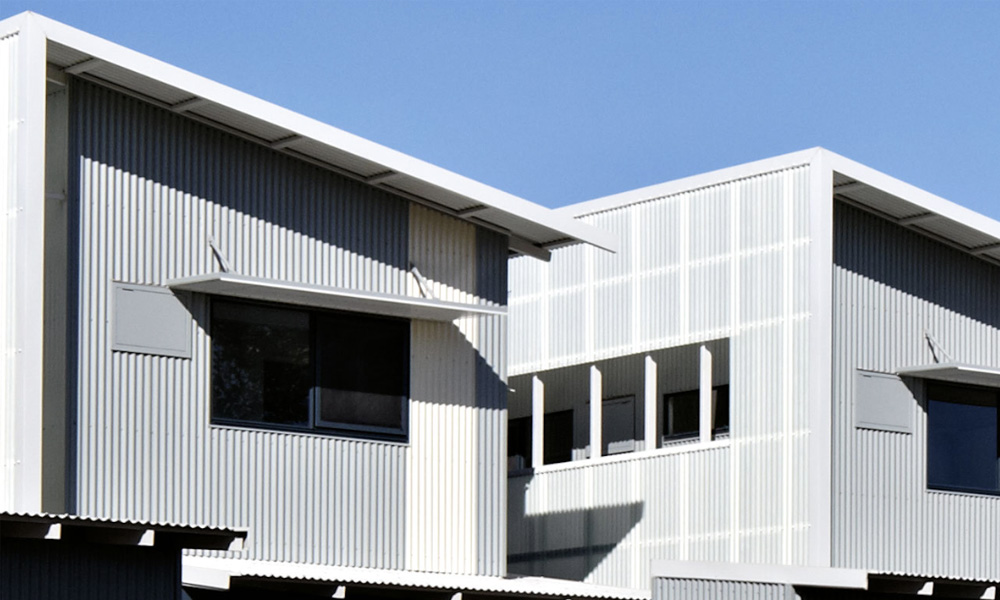

This corrugated metal roofing can be made in GI/PPGI/PPGL/Alu-zinc steel/Aluminum alloy metal sheets,which makes it have wide range of application.Such as wall claddings of 4S car stores,large exhibition centers,roof claddings of steel villas,steel sheds,steel barns,fencing of residential buildings,road enclosure,etc.

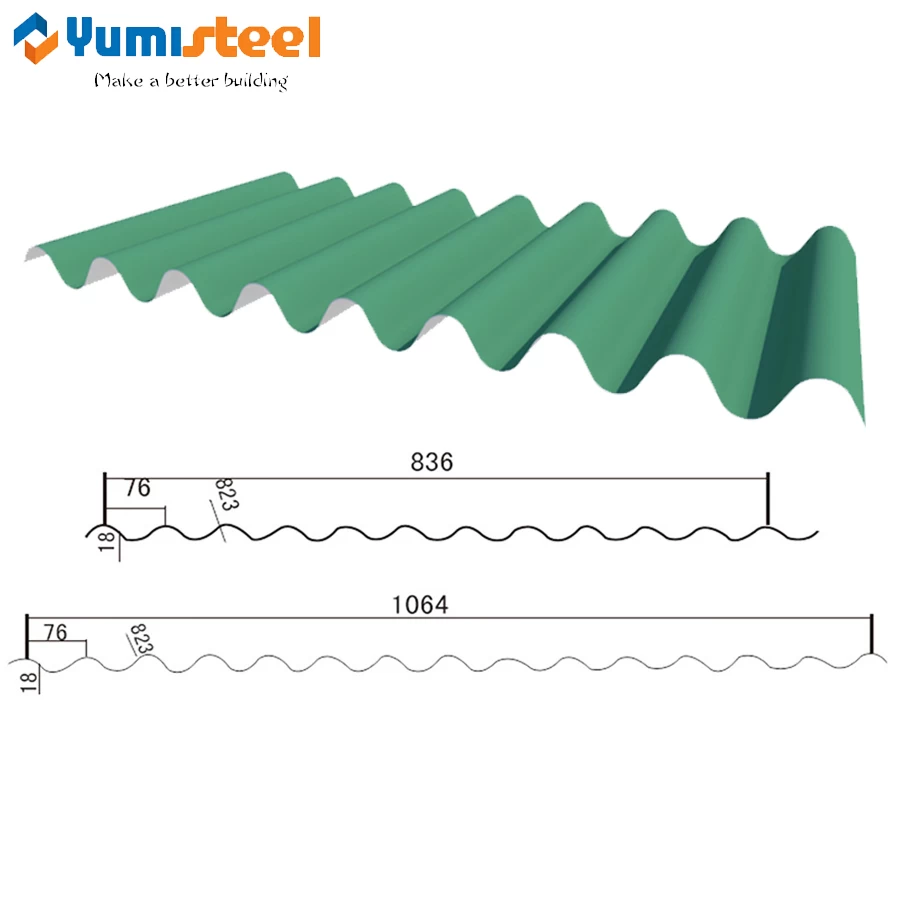

Roofing sheets specifications
|
Model NO. :
|
YX18-76-836
|
YX18-76-1064
|
|
Rib height :
|
18 mm
|
|
Rib distance :
|
76 mm
|
|
Modular width :
|
836 mm
|
1064 mm
|
|
Feeding width :
|
1000 mm
|
1200 mm
|
|
Available thickness :
|
AL-MG-MN alloy metal sheets:0.7 - 1.2mm;
PPGI /PPGL steel sheets:0.30 - 0.75mm;
Galvanized steel sheets:0.30 - 0.80mm;
Alu-zinc steel sheets:0.30 - 0.80mm;
Aluminum color sheets:0.6 - 1.2mm.
|
|
Available length :
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|
Available material :
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
|
Surface treatment :
|
Original pre-painted color or original zinc color
|
|
Coating type :
|
PE, PVDF, HDP, SMP, etc.
|
|
Main difference of two types:
|
The wider effective width,the lower cost
|
Corrugated roof dimensions tolerance
|
Pitch
|
Rib distance
|
Effective width
|
Thickness
|
Panel length
|
|
±1mm
|
±2mm
|
N/A
|
±0.03mm
|
±5mm
|
Lightweight corrugated roofing sheet rendering
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
1)Normal packing:
Packed with moisture-proof kraft paper.
2)Premium packing:
Packed with steel box.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
