Pressure Controllable Electric Rolling Machine For Lithium Battery Electrode Preparation
Specifications
1 TOB-DYG-703A systembattery roll press machineis a high precisionMechanical roller press machine. It has dual rollers of 300mm dia.* 300mm width and Dia400mm*400mm width model.. Thisbattery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing..
2 This modelbattery roll press machineis pressure adjustable roll press, The operator adjust the press pressure to get best effect battery electrode density according to battery design.
|
Model
|
TOB-DYG-703A-300
|
TOB-DYG-703A-400
|
|
Type
|
Vertical 2 Roll Press type
|
|
Source voltage
|
AC110V/220V 50/60HZ
|
|
Power
|
5.5KW
|
7.5KW
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Roller diameter
|
Dia * width=300*300mm
|
Dia * width=400*400mm
|
|
Speed
|
4r.p.m
|
8r.p.m
|
|
Pressure
|
100T, about 980KN
|
|
Rolling press mode
|
Preloading suppression way; Preload pressure by a manual handle
|
|
Roller drive way
|
Gear to gear transmission, planetary gear reducer gear motor drive
|
|
Max rolling gap adjustment
|
0-2mm adjustable
|
|
Structure
|
1 Roll surface roughness, surface roughness of 0.4um
2 Roll hardness: HRC62-65, roll conditioning: HB280-300,
18mm or higher quenching depth and roll cylindricity less than
0.003 mm
3 Adopt p52 precision bearings
4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable
|
|
Dimension(L*W*H)
|
1380*5600*1480mm
|
1819*1000*1817mm
|
|
Weight
|
About 2.8T
|
About 4T
|

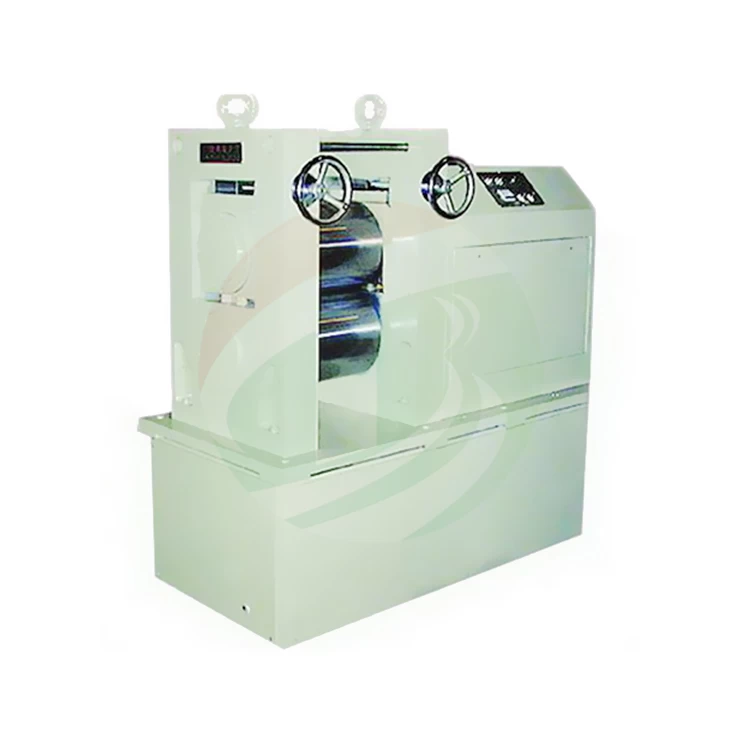

Product Display
Battery electrode roll press process
