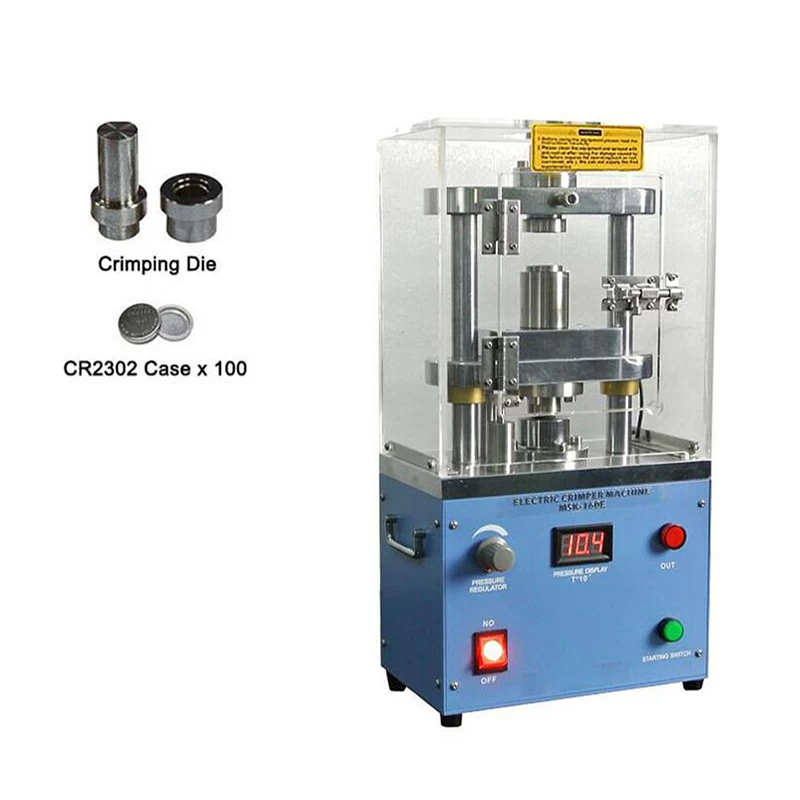

AOT-MSK-160Eis a compact Pressure Adjustable Electric Crimper for CR20XX coin cells, such as CR2016, CR2025, CR2032. The digital pressure controller can keep crimping force consistent at each time. The compact size of crimper machine allows you put it inside the glove box.
|
Model
|
Electric Crimping and Disassemble Machine for Coin Cell AOT-MSK-160E
|
|
Voltage
|
110 - 240V AC 50/60Hz
|
|
Power
|
24VDC motor with reducing gear, 15W
|
|

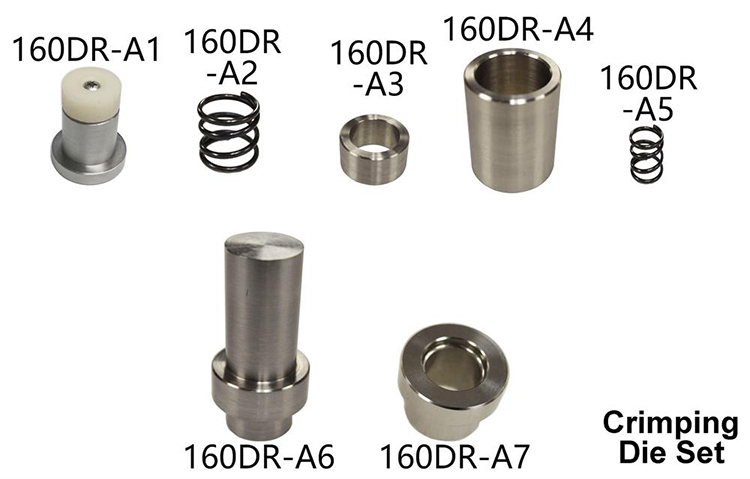

Die Set & Compatibility
|
1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells.
2. Please read operation manual to see how to replace die from crimping to disassembling.
|
|
Structure
|
Heavy Duty Steel Platform
|
|
Pressure Control
|
A built-in load cell with digital display for pressure measurement and control
Pressure adjustment range: 0-1.35T
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Maintenance Notes
|
Electrolytes are highly corrosive materials, and therefore the die set must be cleaned
with alcohol after each use to avoid corrosion and to maintain the equipment's integrity.
|
|
Optional
|
Protection shield / enclosure (plexiglass) with safety interlock is installed
|
|
Net Weight
|
26kg
|
|
Product Dimensions
|
220mm(L) x 130mm(W) x 430mm(H)
|
