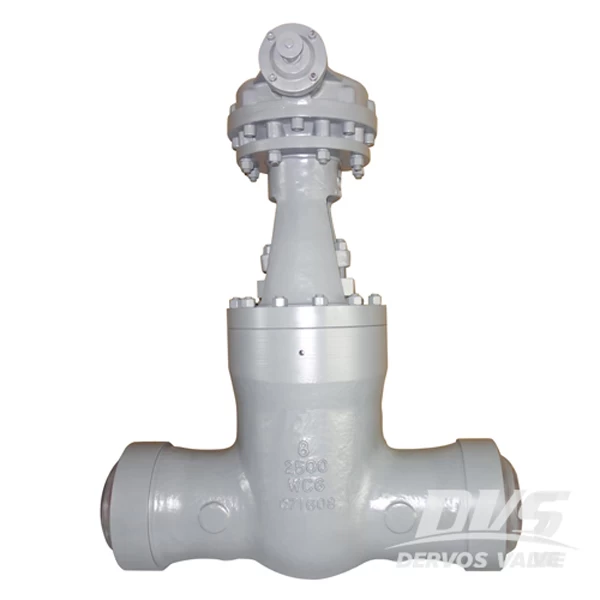

The 8 inch Class 2500 gate valve is designed with pressure seal bonnet, butt weld connection, and gearbox operation. The 8 inch gate valve has carbon steel WCB body and trim 5.
Quick Detail
|
Type
|
Gate
Valve
|
|
Size
|
8''
|
|
Design Pressure
|
ANSI
2500
|
|
Construction
|
Pressure
Seal Bonnet, Flexible Wedge, Metal to Metal Seat
|
|
ConnectionType
|
Butt
Weld (SW)
|
|
OperationType
|
Gearbox
Operation
|
|
Body Material
|
A217
WC6
|
|
TrimMaterial
|
Trim 5
|
|
Design Code
|
API 600
|
|
Face to Face Dimension
|
ASME
B16.10
|
|
End Connection
|
ASME
B16.25
|
|
Pressure & Temp
|
ASME
B16.34
|
|
Medium
|
Water,
Oil and Gas
|
|
Origin
|
China
|

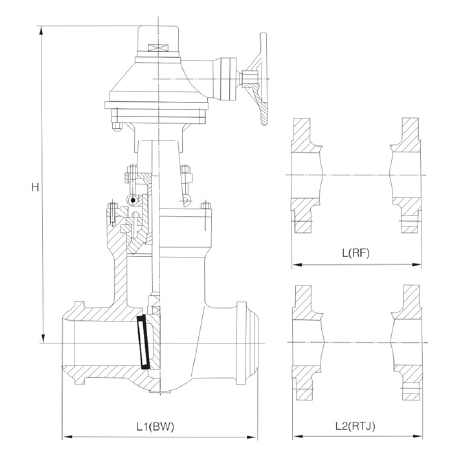

Dimension & Material
|
NPS DN
|
Class
|
2
|
2 1/2
|
3
|
4
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
24
|
|
50
|
65
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
|
L(RF)
|
900LB
|
368
|
419
|
381
|
457
|
610
|
737
|
838
|
965
|
1029
|
1130
|
|
|
|
|
1500LB
|
368
|
419
|
470
|
546
|
705
|
832
|
991
|
1130
|
1257
|
1384
|
|
|
|
|
2500LB
|
451
|
508
|
578
|
673
|
917
|
1022
|
1270
|
|
|
|
|
|
|
|
L1(BW)
|
900LB
|
216
|
254
|
305
|
355
|
508
|
660
|
787
|
914
|
991
|
1092
|
1346
|
1473
|
1600
|
|
1500LB
|
216
|
254
|
305
|
406
|
559
|
711
|
864
|
991
|
1067
|
1194
|
1697
|
|
|
|
2500LB
|
279
|
330
|
368
|
457
|
610
|
762
|
914
|
1041
|
1118
|
1245
|
|
|
|
|
L2(RTJ)
|
900LB
|
371
|
422
|
384
|
460
|
613
|
740
|
841
|
968
|
1038
|
1140
|
|
|
|
|
1500LB
|
371
|
422
|
473
|
549
|
711
|
841
|
1000
|
1146
|
1276
|
1407
|
|
|
|
|
2500LB
|
454
|
514
|
584
|
683
|
927
|
1038
|
1292
|
|
|
|
|
|
|
|
H(Opne)
|
900LB
|
554
|
637
|
680
|
796
|
1084
|
1372
|
1494
|
1550
|
1960
|
2210
|
|
|
|
|
1500LB
|
554
|
637
|
767
|
875
|
1094
|
1372
|
1655
|
1834
|
2150
|
2260
|
2460
|
2721
|
2940
|
|
2500LB
|
610
|
654
|
753
|
850
|
1254
|
1374
|
1685
|
1894
|
2226
|
2382
|
2585
|
|
|
|
W
|
900LB
|
300
|
350
|
350
|
400
|
560
|
460*
|
610*
|
610*
|
610*
|
760*
|
|
|
|
|
1500LB
|
300
|
450
|
450
|
560
|
305*
|
460*
|
610*
|
610*
|
760*
|
760*
|
|
|
|
|
2500LB
|
500
|
500
|
600
|
600
|
460*
|
460*
|
610*
|
|
|
|
|
|
|
|
Weight (RF)
|
900LB
|
50
|
84
|
92
|
154
|
341
|
622
|
950
|
1295
|
1720
|
2380
|
|
|
|
|
1500LB
|
60
|
91
|
128
|
182
|
394
|
795
|
1370
|
2120
|
2800
|
3870
|
|
|
|
|
2500LB
|
121
|
175
|
195
|
229
|
720
|
1295
|
2250
|
|
|
|
|
|
|
|
Weight (BW)
|
900LB
|
39
|
64
|
82
|
120
|
266
|
524
|
760
|
1090
|
1450
|
2018
|
|
|
|
|
1500LB
|
46
|
71
|
85
|
130
|
292
|
578
|
974
|
1615
|
2010
|
2815
|
3315
|
4150
|
5219
|
|
2500LB
|
88
|
135
|
144
|
158
|
500
|
892
|
1550
|
1978
|
2580
|
3780
|
5988
|
|
|
|
*Manual gear operator is recommended
|
|
No.
|
Part
|
WCB
|
WC6
|
WC9
|
C5
|
CF8
|
CF8M
|
|
1
|
Body
|
A216 WCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
|
2
|
Seat
|
A182 F6a
|
A182 F22
|
A182 F22
|
A182 F5
|
A182 F304
|
A182 F316
|
|
3
|
Wedge
|
A216 WCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
|
4
|
Stem
|
A182 F6a
|
SAEHNV3
|
A182 F304
|
A182 F316
|
|
5
|
Stuffing Box
|
A216 WCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
|
6
|
Seal Ring
|
ANSI 316L
|
Flexible Graphite+316
|
|
7
|
Split Ring
|
Steel
|
F6
|
F6
|
F6
|
A182 F304
|
F316
|
|
8
|
Back Ring
|
Steel
|
Steel
|
Steel
|
Steel
|
SS
|
SS
|
|
9
|
Bolt
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B8
|
A193 B8
|
|
10
|
Nut
|
A194 2H
|
A194 2H
|
A194 2H
|
A194 2H
|
A194 Gr.8
|
A194 Gr.8
|
|
11
|
Yoke
|
A216 WCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
|
12
|
Bolt
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B8
|
A193 B8
|
|
13
|
Nut
|
A194 2H
|
A194 2H
|
A194 2H
|
A194 2H
|
A194 Gr.8
|
A194 Gr.8
|
|
14
|
Packing Plate
|
ANSI 410
|
ANSI 410
|
ANSI 410
|
ANSI 410
|
ANSI 304
|
ANSI 316
|
|
15
|
Packing
|
Flexible Graphite(Braided
and Ring) or PTFE
|
|
16
|
Split Pin
|
Steel
|
Steel
|
Steel
|
Steel
|
Steel
|
Steel
|
|
17
|
Eyebolt
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B8
|
A193 B8
|
|
18
|
Gland
|
A182 F6
|
A182 F6
|
A182 F6
|
A182 F6
|
A182 F304
|
A182 F316
|
|
19
|
Gland Flange
|
A105
|
A105
|
A105
|
A105
|
A182 F304
|
A182 F316
|
|
20
|
Nut
|
A194 2H
|
A194 2H
|
A194 2H
|
A194 2H
|
A194 Gr.8
|
A194 Gr.8
|
|
21
|
Stud
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B7
|
A193 B7
|
|
22
|
Stem Nut
|
Ni-resist A439-D2
|
|
23
|
Gear Box
|
Purchased
|
|
24
|
Protector
|
Steel
|
|
25
|
Nameplate
|
ANSI 304
|
|
26
|
Rivet
|
ANSI 304
|
