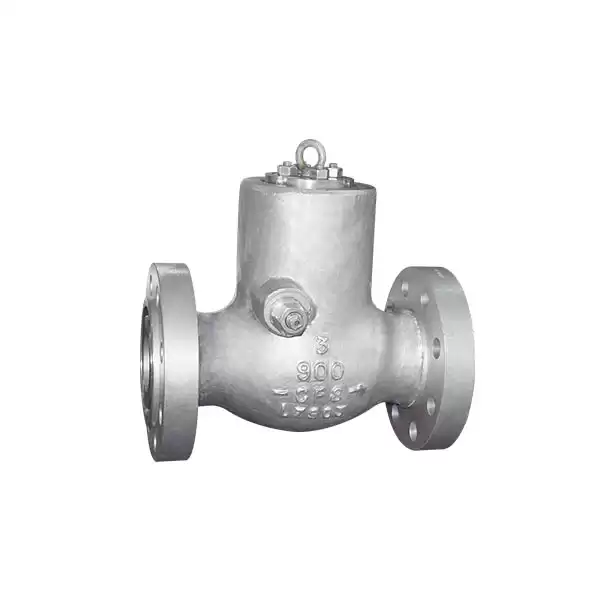

Pressure Seal Swing Check Valve 3Inch 900LB CF8

BS 1868 PSB Swing Check Valve

3Inch,900LB, CF8, CF8+STL

Manufacture STAVAL Factory Offers.

Key Specification

Type	Swing Check Valve
Size	3Inch
Pressure	900LB
Construction	Pressure Seal, Full Bore, Full Open, External Hinge
Connection	RTJ End
Body Material	ASTM A351 CF8
Cover Material	A182 F304
Disc Material	ASTM A351 CF8+STL
Hinge Material	ASTM A351 CF8
Hinge Pin Material	A182 F304
Bolt/Nut	B8/8
Design Standard	BS1868 / ASME B16.34
Face to Face Dimension	ASME B16.10
End Connection	ASMEB 16.5
Inspection & Test Std.	API598
Temperature Range	-29℃~+450℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
