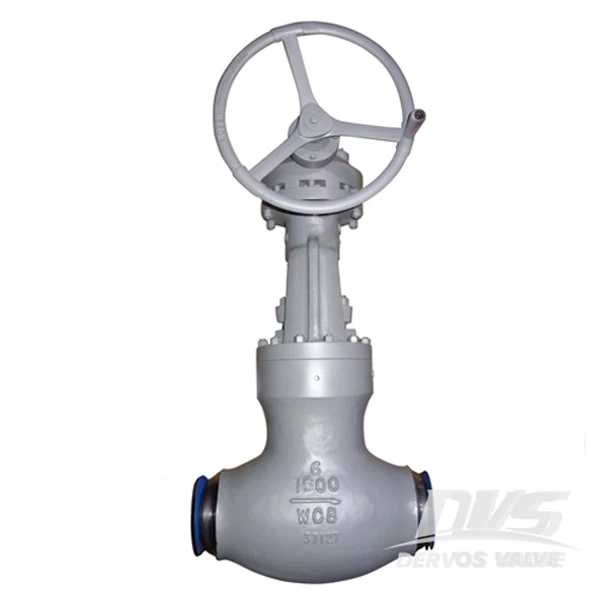

The 6 Inch PSB globe valve has 1500LB design pressure, butt weld end, and gearbox. The full bore globe valve is made of carbon steel WCB body and trim 5 material.
Quick Detail
|
Type
|
Globe
Valve
|
|
Size
|
6''
|
|
Design Pressure
|
Class
1500
|
|
Construction
|
Pressure
Seal Bonnet, Plug Type Disc, Rising Stem
|
|
Connection Type
|
Butt
Weld
|
|
Operation Type
|
Bevel
Gearbox Opearted
|
|
Design Code
|
BS
1873
|
|
End to End
|
ASME
B16.10
|
|
Connection End
|
ASME
B16.25
|
|
Pressure &
Temperature
|
ASME
B16.34
|
|
Test &
Inspection Standard
|
API
598
|
|
Body Material
|
Cast
Steel WCB
|
|
Trim Material
|
Trim
NO. 5
|
|
Temperature Range
|
-29℃~+425℃
|
|
Application
|
WOG
|
|
Origin
|
China
|

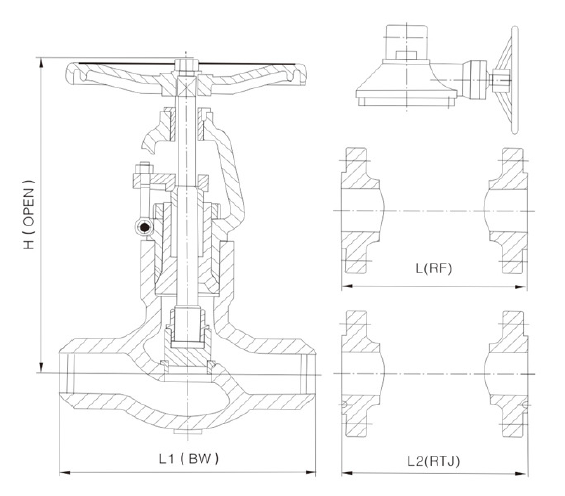

Material & Dimension
|
NPS
DN
|
Class
|
2
|
2 1/2
|
3
|
4
|
6
|
8
|
|
50
|
65
|
80
|
100
|
150
|
200
|
|
L(RF) L1(BW)
|
900LB
|
368
|
419
|
381
|
457
|
610
|
737
|
|
1500LB
|
368
|
419
|
470
|
546
|
705
|
832
|
|
2500LB
|
451
|
508
|
578
|
673
|
917
|
1022
|
|
L2(RTJ)
|
900LB
|
371
|
422
|
384
|
460
|
613
|
740
|
|
1500LB
|
371
|
422
|
473
|
549
|
711
|
841
|
|
2500LB
|
454
|
514
|
584
|
683
|
927
|
1038
|
|
H(Opne)
|
900LB
|
550
|
605
|
678
|
798
|
930
|
1230
|
|
1500LB
|
550
|
605
|
866
|
956
|
1260
|
1263
|
|
2500LB
|
560
|
720
|
755
|
1230
|
1791
|
2086
|
|
W
|
900LB
|
350
|
350
|
400
|
450
|
458
|
610*
|
|
1500LB
|
400
|
400
|
450
|
560
|
610*
|
610*
|
|
2500LB
|
400
|
450
|
560
|
310*
|
610*
|
760
|
|
Weight (RF)
|
900LB
|
78
|
108
|
102
|
142
|
400
|
960
|
|
1500LB
|
85
|
110
|
135
|
230
|
660
|
1590
|
|
2500LB
|
140
|
168
|
247
|
620
|
1500
|
3200
|
|
Weight (BW)
|
900LB
|
66
|
91
|
87
|
128
|
355
|
868
|
|
1500LB
|
77
|
101
|
122
|
209
|
595
|
1440
|
|
2500LB
|
100
|
118
|
180
|
438
|
1148
|
2594
|
|
*Manual gear
operator is recommended
|
|
No
|
Part Name
|
Carbon steel to
ASTM
|
Alloy
steel to ASTM
|
Stainless
steel to ASTM
|
|
WCB
|
WC6
|
WC9
|
C5
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
1
|
Body
|
A216 WCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
2
|
Seat Ring
|
A105
|
A182 F11
|
A182 F22
|
A182 F5
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
3
|
Disc
|
A105
|
A182 F11
|
A182 F22
|
A182 F5
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
4
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
5
|
Disc nut
|
A182 F6
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
6
|
Cap
|
SS Spiral Wound graphite or
SS Spiral Wound PTFE
|
|
7
|
Body Seal
|
Flexible Graphite+316
|
|
8
|
Adjustment Gasket
|
F6
|
F6
|
F316
|
|
9
|
Stem packing
|
Flexible Graphite+316
|
|
10
|
Gland Nut
|
A194 2H
|
A194 8
|
|
11
|
Gland Eyebolt
|
A193 B7
|
A193 B8
|
|
12
|
Pin
|
Carbon steel or Stainless
Steel
|
|
13
|
Cap Nut
|
Carbon steel or Stainless
Steel
|
|
14
|
Gland
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
15
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
|
16
|
Yoke
|
A216 WCB
|
A351 CF8
|
|
17
|
Stem Nut
|
A439 D2 or B148-952A
|
|
18
|
Screw
|
Carbon steel
|
|
19
|
Handwheel
|
Ductile Iron or carbon
steel
|
|
20
|
Name Plate
|
Stainless steel or Aluminum
|
|
21
|
Washer
|
Carbon steel
|
|
22
|
Nut
|
Carbon steel or Stainless
Steel
|
Related Knowledge
Why do we use
pressure seal bonnet?
Pressure sealed
bonnet are often used for valves with high design pressure. The higher the
internal pressure gets, the greater the sealing force beween body and bonnet
become.
For bolted bonnet
valves, the body and bonnet are joined by studs and nuts with a gasket between
the flange faces to facilitate sealing. However,as system pressure
increases,the potential for leakage through the body and bonnet increases.
But for pressure
sealed valve, “bonnet
take-up bolts” to pull the bonnet up and seal against the pressure seal gasket.
That is why when pressure increase, the performance of pressure seal gasket
between body and bonnet becomes better.
