Price P4 Outdoor Full Color LED Display Billboard/LED Display Panel/Video LED

Excellent squeeze waterproof design
The control box and the module adopt a special sealing ring squeeze waterproof design, and the waterproof effect is more reliable;

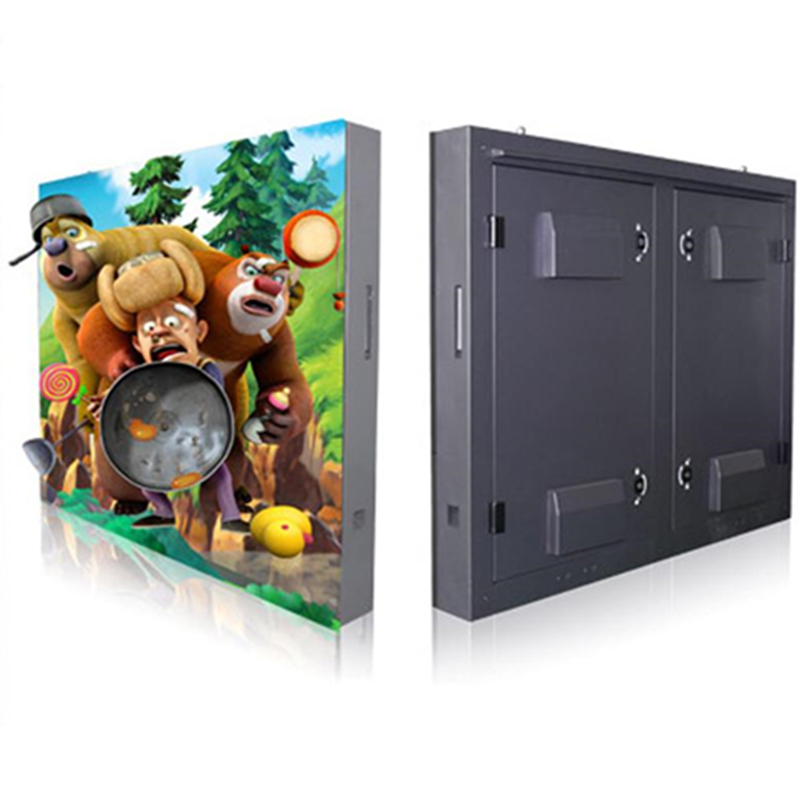

Anti-collision cabinet design
The anti-bumping dip angle design can protect the lamp tube and the mask at the bottom of the module from being damaged by external force, which affects the overall display effect and enables the box to stand firmly.



P4 Outdoor fullcolor led screen main parameters

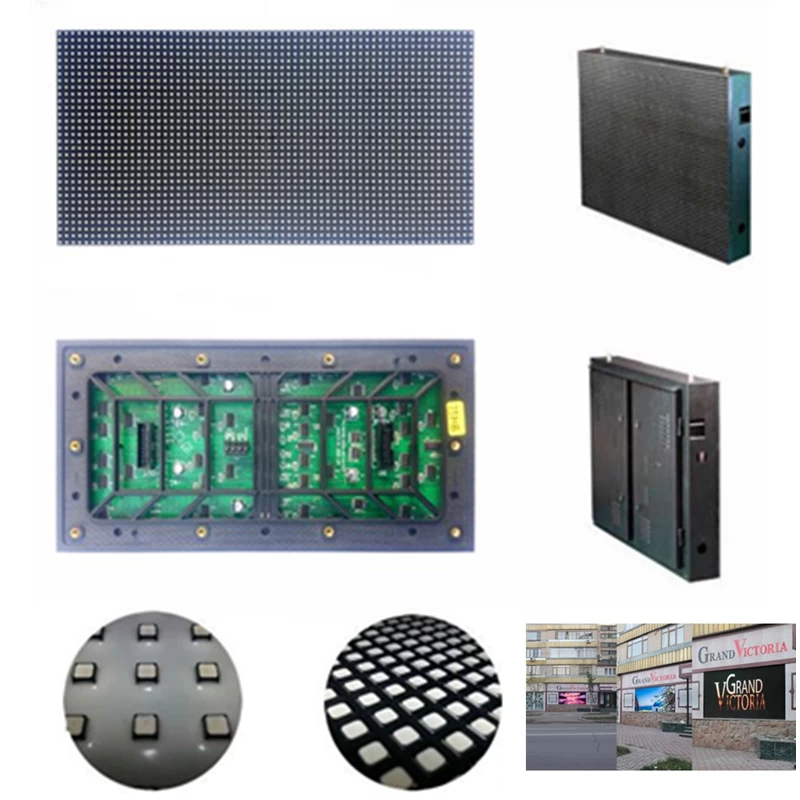

Unit Module

Item Parameter
Model Number CN-P4-8S
Module size 256mm*128mm
Pixel pitch 4mm
Pixels Density 62500pcs/m2
Pixel configuration 1R1G1B
Package mode SMD2727
Pixel resolution 32dots(W)*32dots(H)
Max Power consumpion 30W
Module thickness 17mm
Weight 0.8KG
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
Brightness of white balance ≥5000cd/

bracket

Size 256mm*128mm

LED

Unit Module

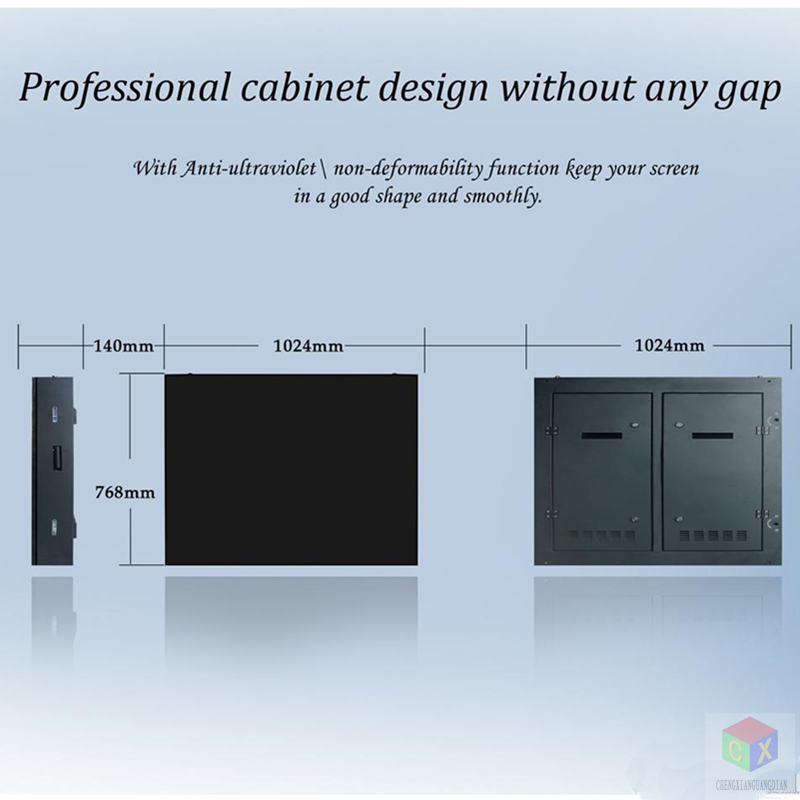

Dimension 1024m*768mm
Quanty of Module 28
Power supply 5V/60A*4 pcs

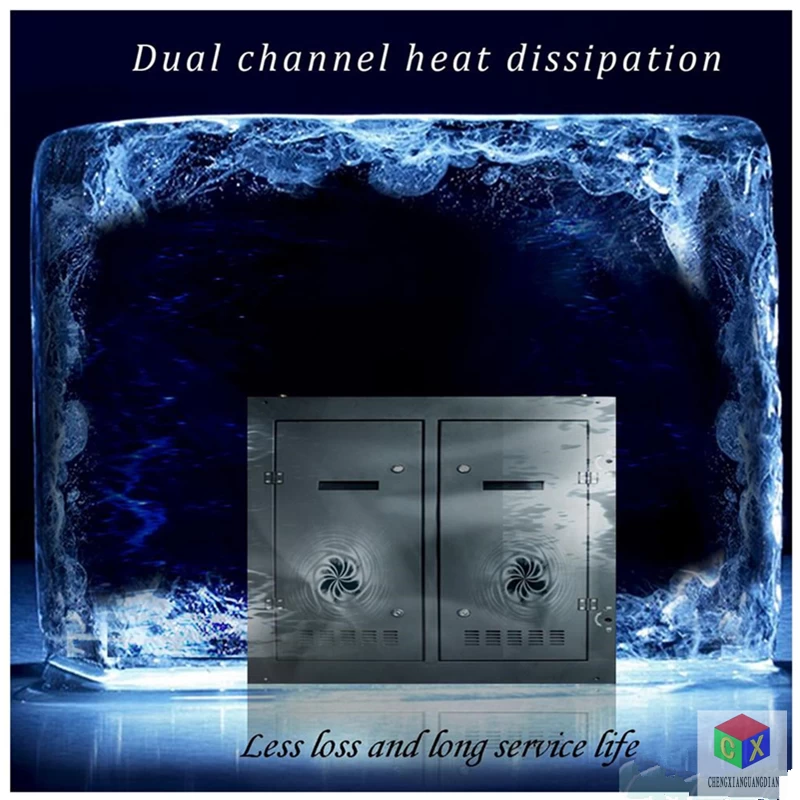

Thermal discharge fan 1pcs
Pixel per cabinet 256*192
Best viewing distance 4M~20M
Best viewing distance 140°(W) 120°(H)
Temperature storage:-35℃~+85 working:-20℃~+50
Opration humidity 10%-95%
Thickness 85mm

Power

Working voltage AC220V±10%
Average Power consumption 260W/
Max.Power consumption 800W/
Current 20mA(single LED)

Control system

CPU Pentium4 or above
Operation system WIN98/2000/NT/XP
Control method Synchronization

Main technical

parameter

Driving device Constant currentdriver
Refresh frequency 400HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
MTBF 9000hours
Power switch Automatic switch
Display Mode 800*600/1024*768
