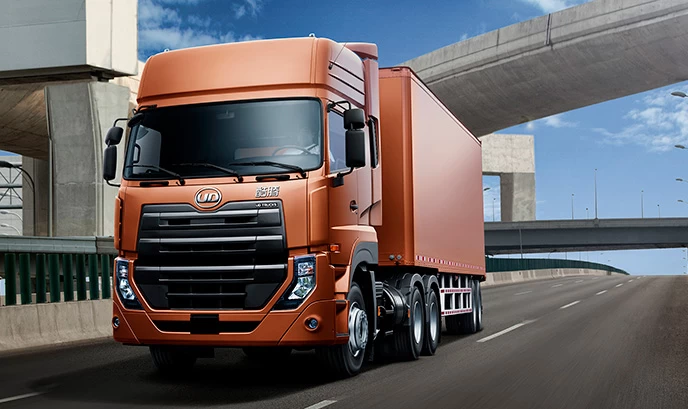

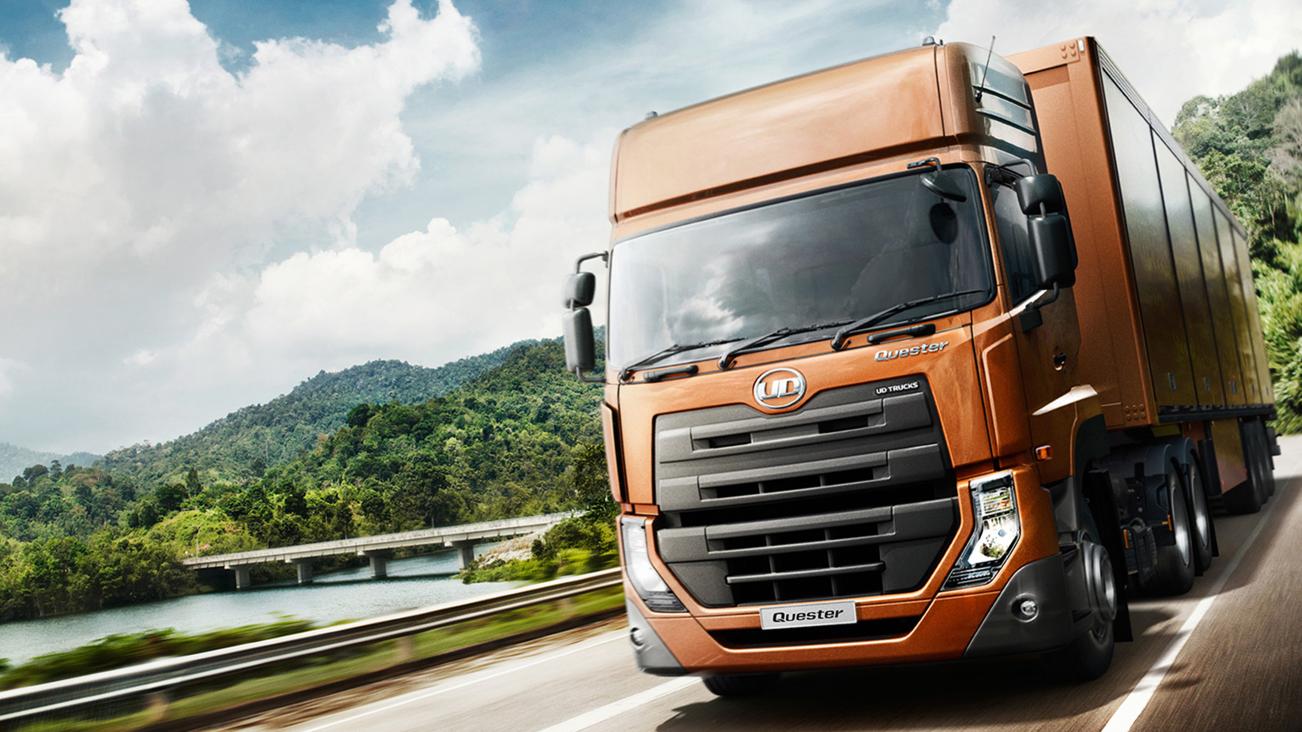

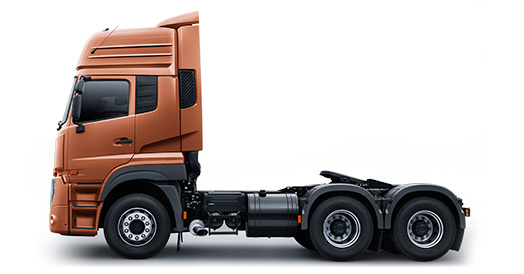

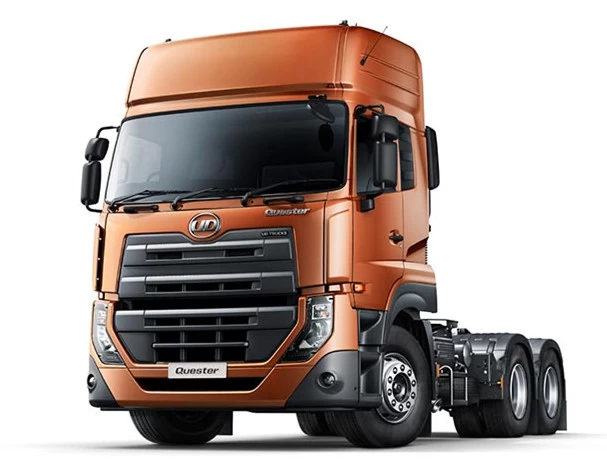

UD Quester Truck Series

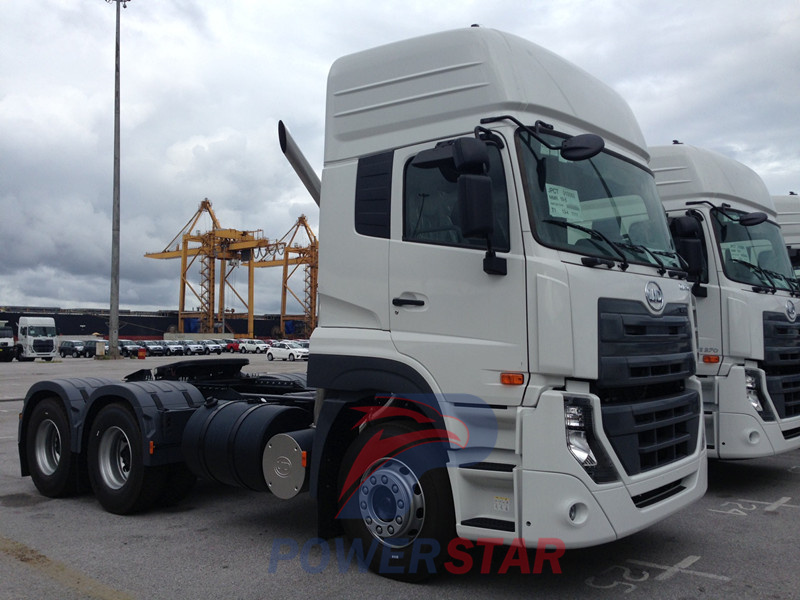

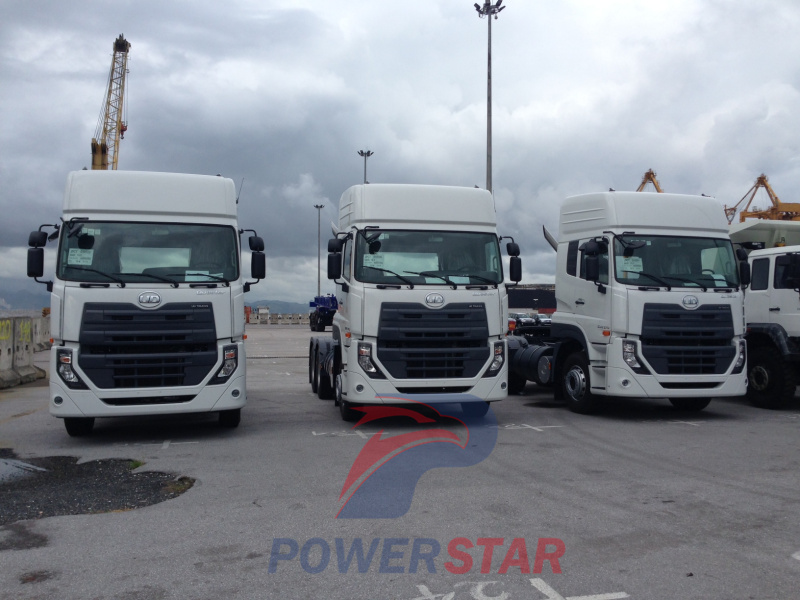

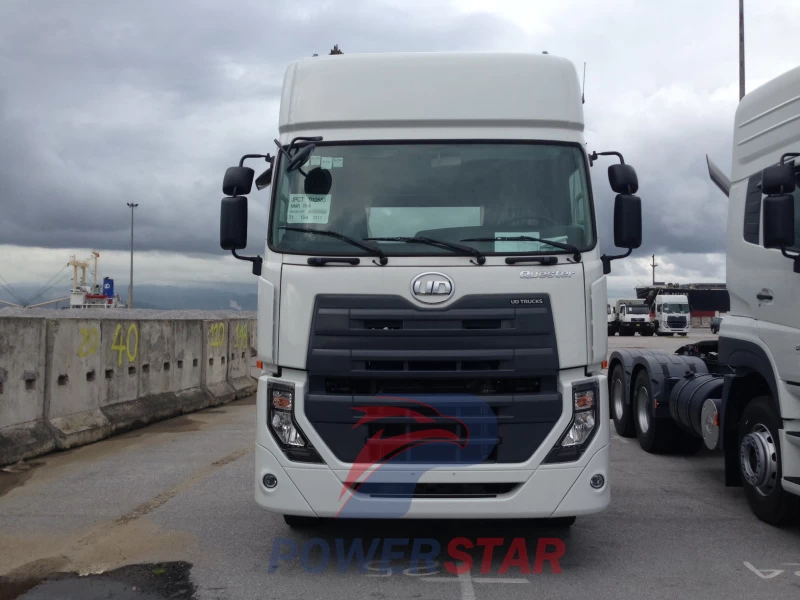

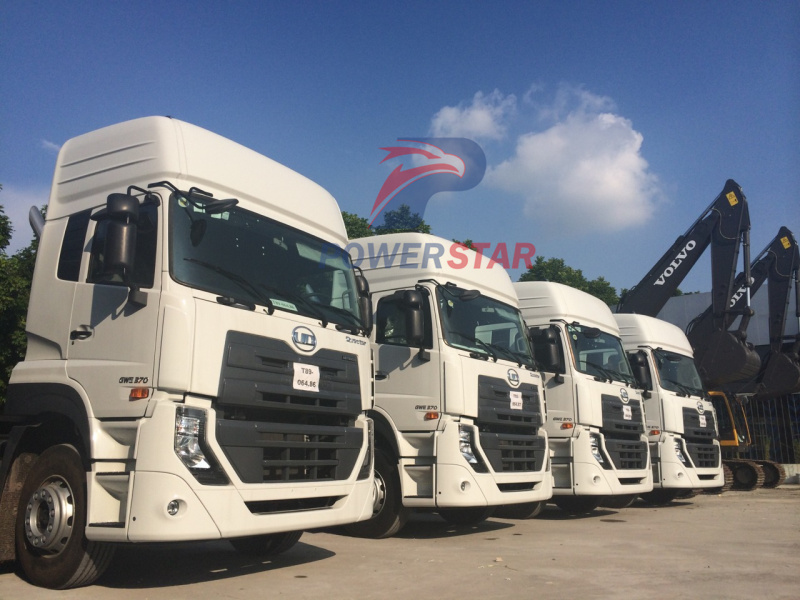

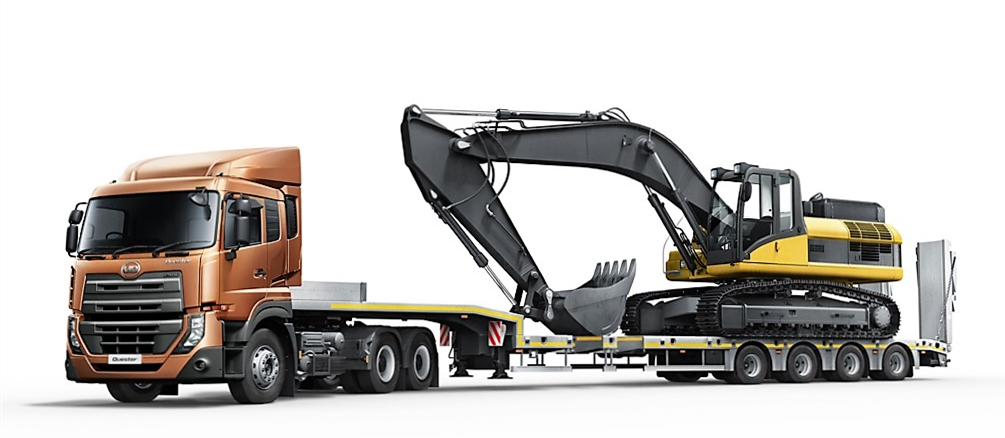

2. Tractor truck Introduction

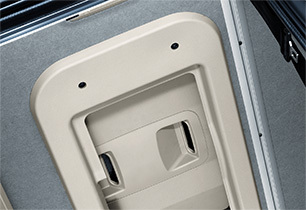

Tractor truck Roof hatch
Emergency exit for any unexpected situations
|

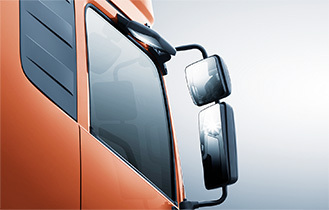

Multi view angle mirror
Considerately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather.
|
|
|

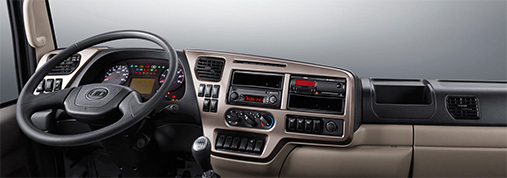

Tractor truck Dashboard with delicate layout
Well laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information
|

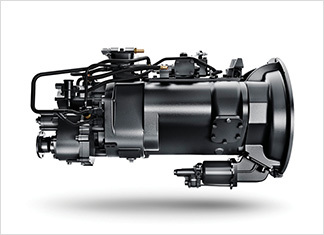

Tractor truck gearbox cooling system
Equipped with transmission oil cooler for longer gearbox life
|
Tractor truck hub reduction axle
For heavy cargo transportation and poor working condition, hub reduction axle as optional.
|
Specification:

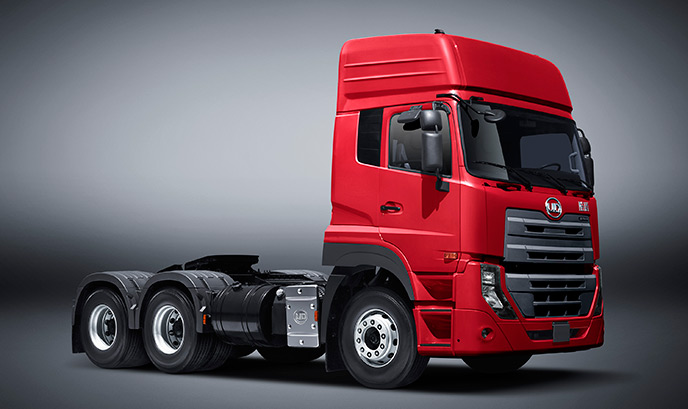

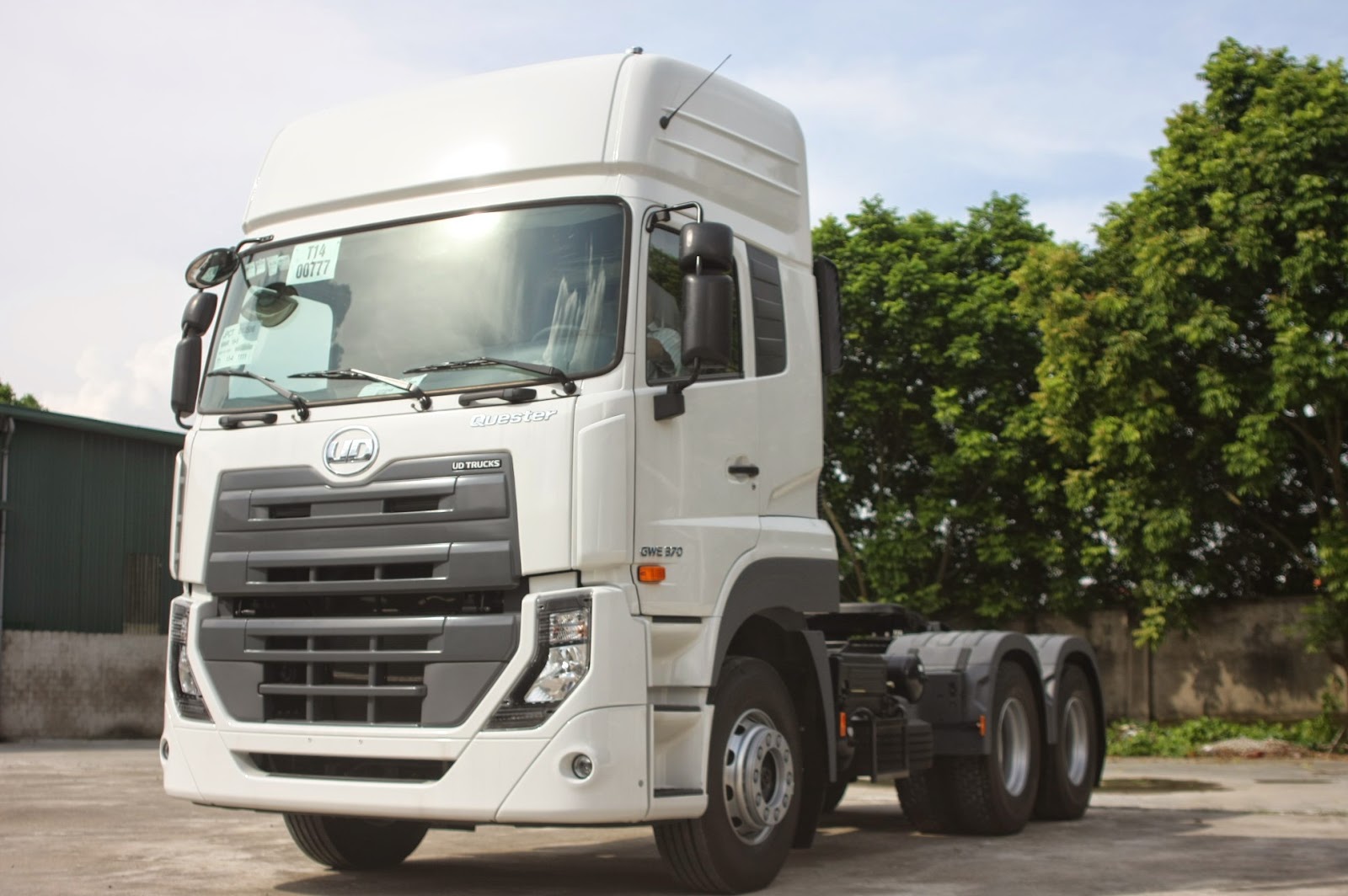

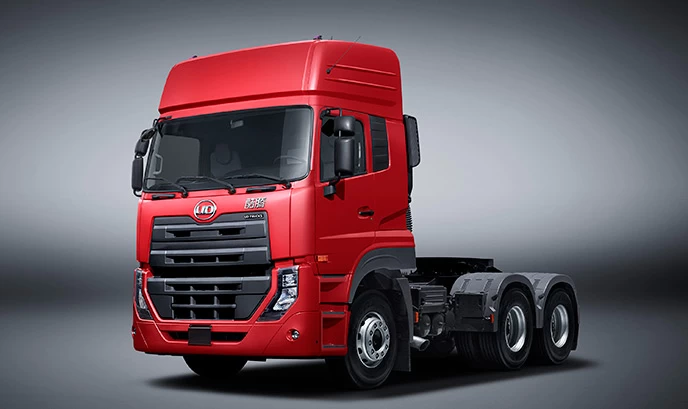

| Prime Mover UD Quester (6x4, 380 HP ) |
| General |
Brand |
UD Quester |
| Overall Dimension |
7035 * 2500 * 3730 mm |
| GVW / Kerb Weight |
25,000 kg / 8,805 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
UD engine |
| Power |
380 PS (280 KW) |
| Displacement |
10837 ml |
| Emission Standard |
Euro IV |
| Chassis |
Drive Type |
6X4, left hand drive |
| Transmission |
12-speed forward, 2 reverse |
| Wheelbase/No. of axle |
3400+1370 mm / 3 |
| Tyre Specification |
12.00R20 |
| Tyre Number |
10 tyres and 1 spare tyre |
| Max Speed |
100 km/h |
| Fuel Tanker |
380 Litres made of aluminum alloy |
| Fifth Wheel |
50# or 90# |
| Paint |
Metallic paint |
| All other standard accessories: Tool kit, English manual |
| Optional |
** Medium cabin, high cabin.
** Burglar alarm & immobilizer, audible reverse beeper, reverse camera, central locking, GPS, VDR.
** JOST fifth wheel |
