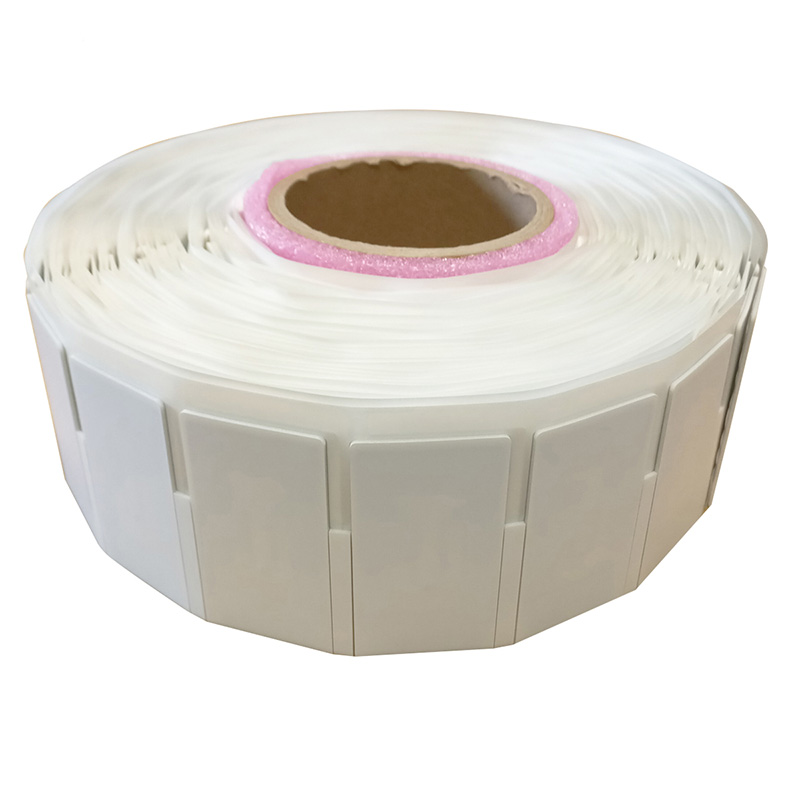

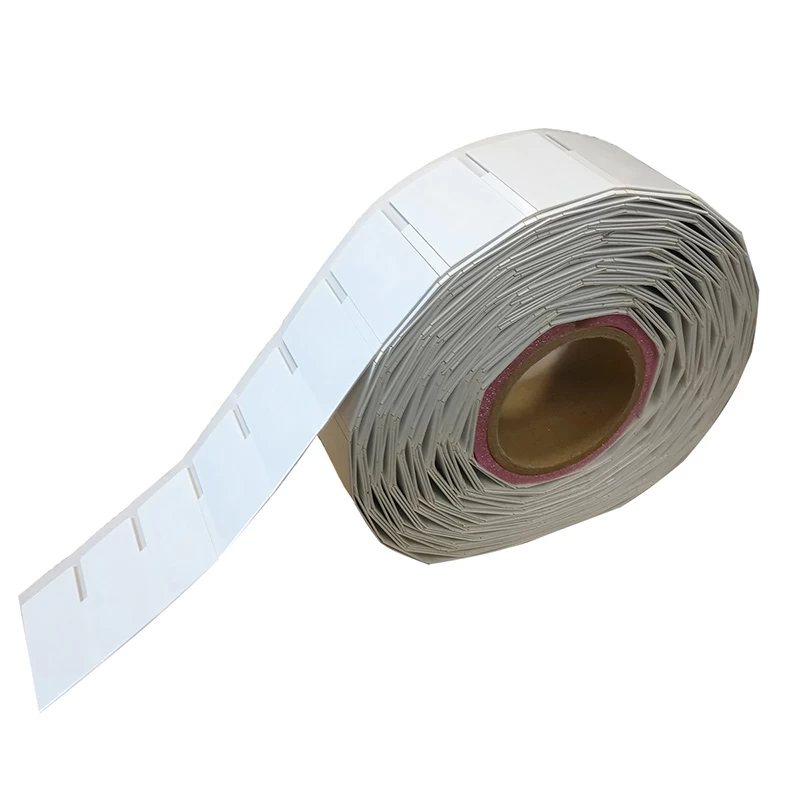

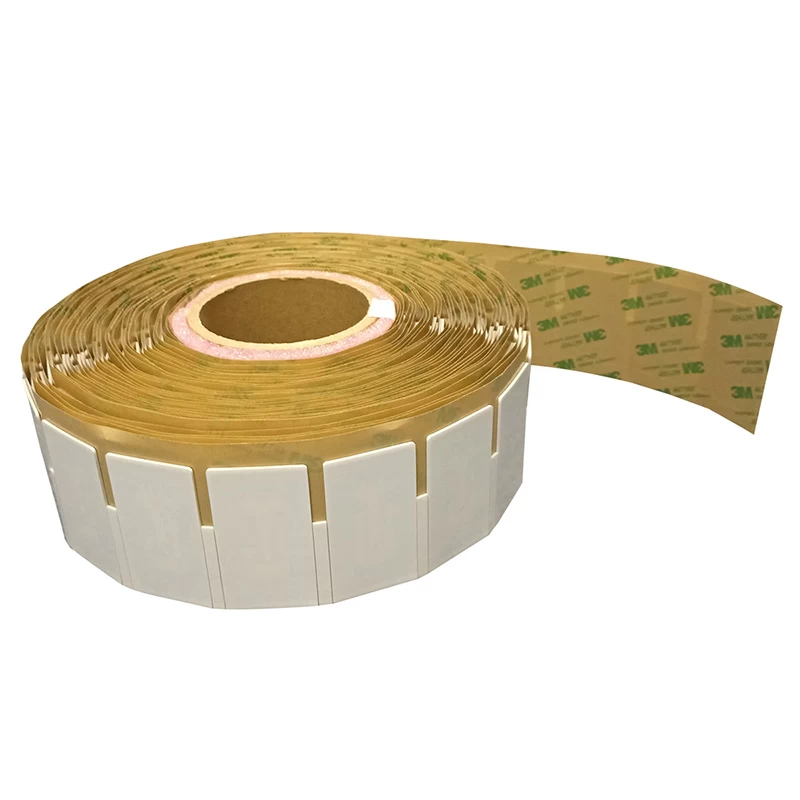

Printable UHF Metal Label With 3M Adhesive Sticker

The tag is flexible and can be attached on metallic assets easily, specially for irregular and uneven surface,such as steel boiler,metal container,steel pipe,etc.It can be used for metal and non-metal assets,but better performance on metal.It can be printed with logo,numbers,text by RFID printers,such as Zebra ZT410 Silverline,Sato CL4NX,Toshiba SX-5,Postek TX3r,etc.Synchronous encoding is also available.

Facebook Twitter Pinterest LinkedIn 分享

Printable UHF Metal Label With 3M Adhesive Sticker


The UHF anti-metal printable labels are specially designed for thermal printing, could be printed by thermal printer and transfer printer with the package in roll.  And it's easy to sticke on metal surface and liquid environments such as operates properly in optional UHF (European 868Mhz frequency or the USA 915Mhz frequency).

This type of anti-metal label tag advantages: Flexible, thin, printable...

Physical Features:
Model DFRK002 Name
 UHF Flexible On-metal Label
Material  PET  Size  65*35*1.25mm
Working Temp  -20℃～+75℃
 Survival Temp
 -40℃～+100℃

RFID Chip Features:
RFID Standard
EPC C1G2 (ISO18000-6C)
Chip Type
Impinj Monza R6-P
EPC Memory
128(96)bit
User Memory
32(64)bit
Max Read Range
 865-868MHz :  5 meters
902-928MHz : 6 meters

Other Features:
Data Storage
> 10 years
Re-write
100,000 times
Installation
Adhesive
Customization Company logo printing,Encoding,Barcode,Number,etc
Application
 Warehouse shelf

IT asset tracking

Metallic container tracking

Equipment&device tracking

Automotive components tracking, etc.


     Model : DFRK001                                 Model : DFRK002                            Model: DFRK003

     Size : 5x22x1.25MM                             Size : 65x35x1.25MM                       Size : 55x15x1.25MM


     Model : DFRK004                               Model :  DFRK005                               Model : DFRK006

     Size : 30x15x1.25MM                          Size : 60x25x1MM                               Size : 70x30x1MM


      Model : DFRK007                              Model : DFRK008                                Model : DFRK009

      Size : 80x40x1MM                             Size : 100x40x1MM                              Size : 64x6x1MM
