CARBON BMX RIMS
DESCRIPTION

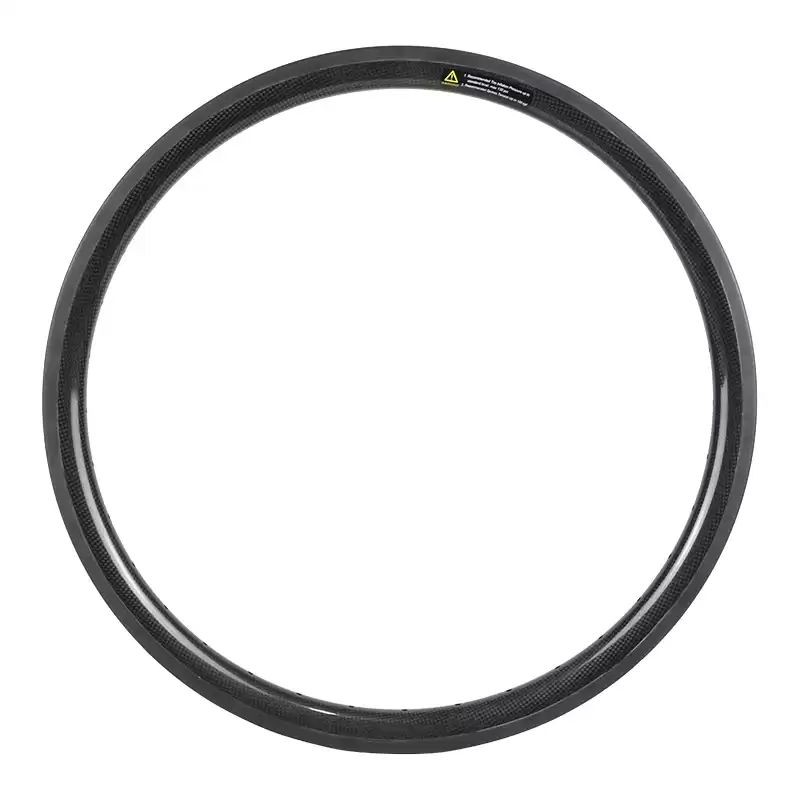

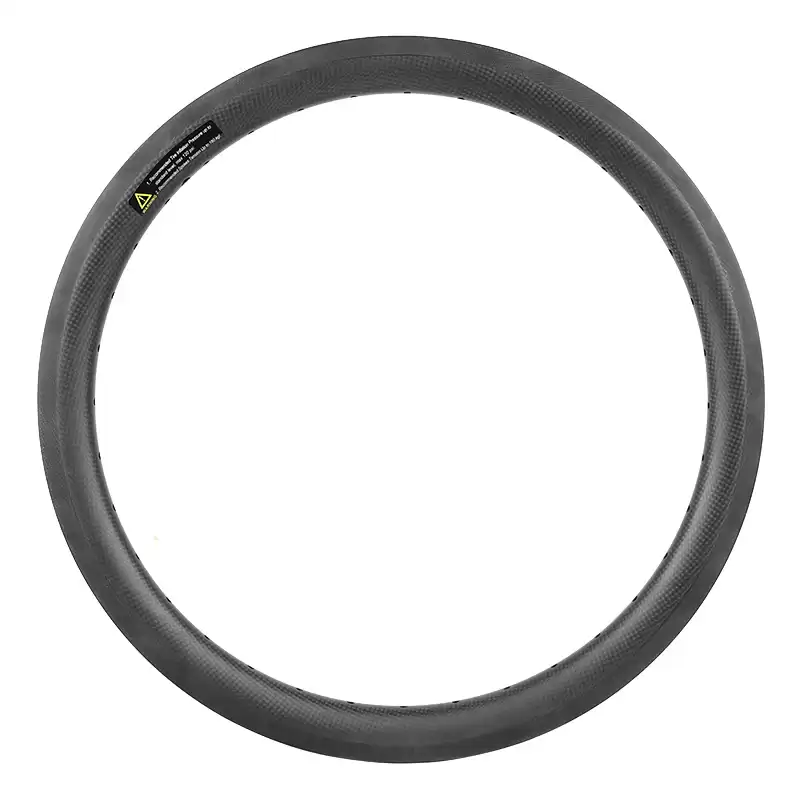

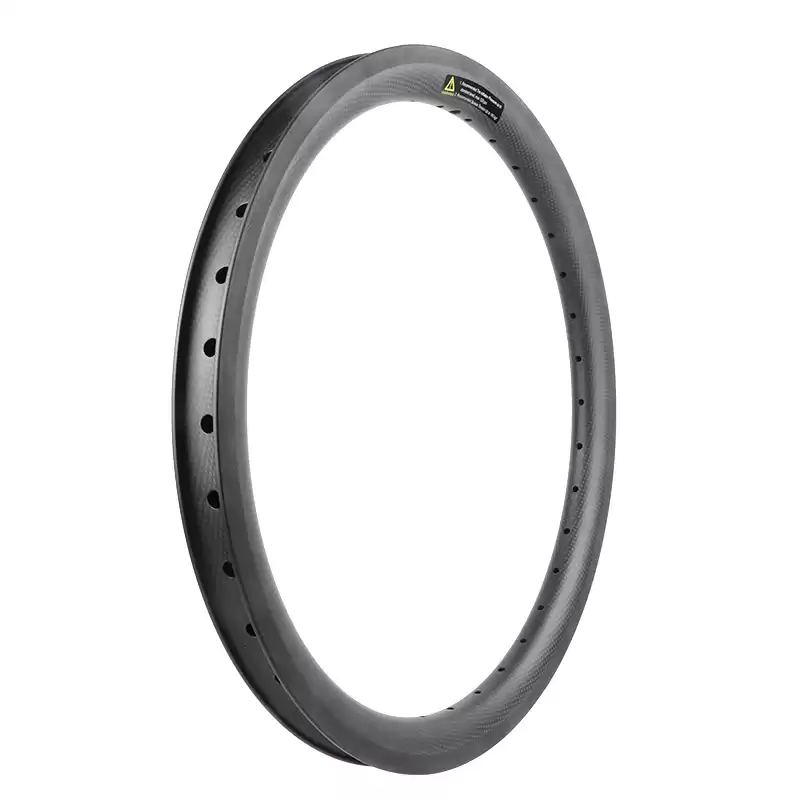

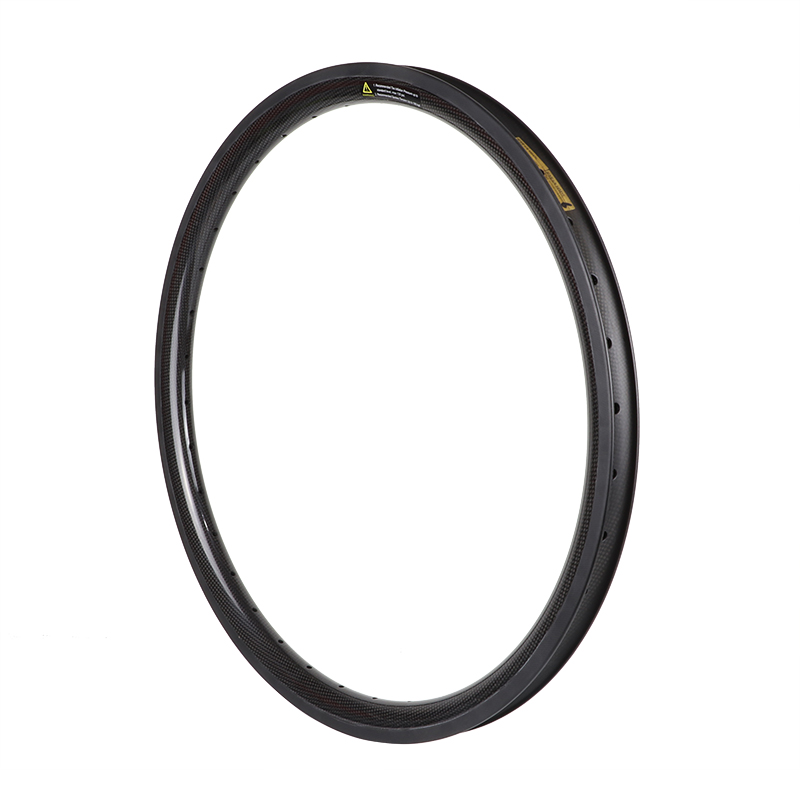

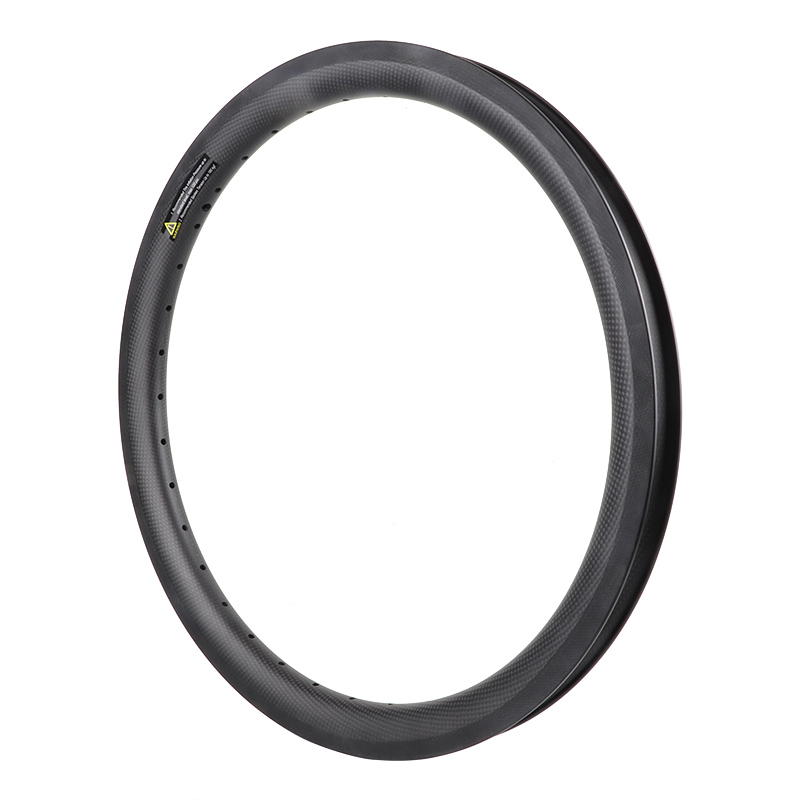

Designed specifically for BMX competition levels. They are light, sturdy and sensitive. 30mm wide: Standard design, the most popular and hot selling. The 24" 507 and 20" 406 wheels promote low rotation weight, low aerodynamic resistance and maximum rigidity. There are two types of rim brakes and disc brakes. These all-round rims can make you a legend on the track. Carbon BMX rims are made of the strongest standard modulus fiber. 25% Toray T800 and 75% Toray T700. Provide UD, 3K, 3K twill, 6K, 6K twill, 12K, 12K twill weave carbon fiber.
The tubeless version of the Orn406-3025 model can also be used on Pro BMX rims to quick through the high speed turns with more puncture resistance. The Tubeless ready rim can be ridden with tubes or tubeless.

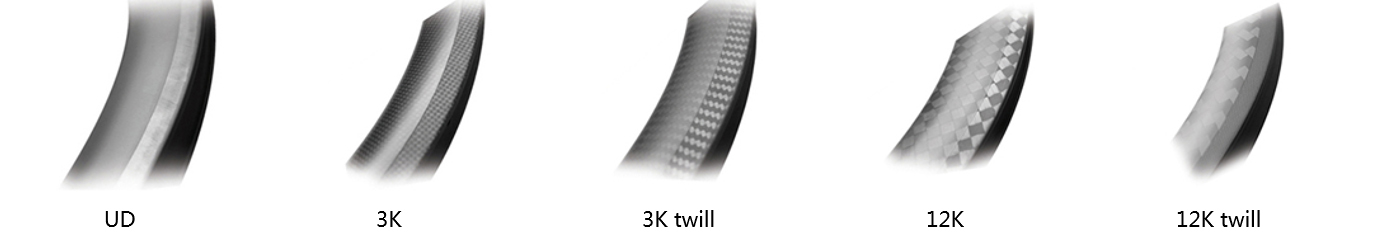

CARBON WEAVE PICTURE DISPLAY
SPECIFICATIONS
Model
|
Orn507-3030
|
Orn406-3030
|
Orn406-3025
|
Sectional Drawing
|
|
|
|
|
Size
|
24"-507
|
20"-406
|
20"-406
|
|
Use
|
BMX
|
BMX
|
BMX
|
Type
|
Clincher
|
Clincher
|
Clincher
|
Tubeless
|
NO
|
NO
|
Ready
|
Internal/External Width
|
23mm/30mm
|
23mm/30mm
|
24mm/30mm
|
Depth
|
30mm
|
30mm
|
25mm
|
ERD
|
469mm
|
369mm
|
379mm
|
Weight
|
430+/-15g
|
340+/-15g
|
330+/-15g
|
Weight Limit
|
130kg
|
130kg
|
130kg
|
Spoke Tension
|
≤145kgf
|
≤145kgf
|
≤145kgf
|
|
Tire Pressure
|
130psi / 8.97bar
|
130psi / 8.97bar
|
130psi / 8.97bar
|
Tire Recommended
|
24” x 1.5~2.125
|
20” x 1.35~2.125
|
20” x 1.35~2.125
|
|
Hole
|
28/32/36
|
28/32/36
|
28/32/36
|
