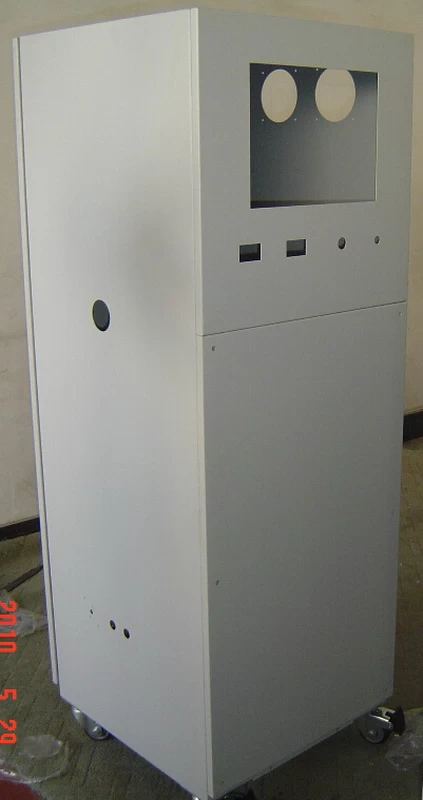

Processing Rittal Type Structure And Properties Control Cabinets

Sheet Metal Fabrication Rittal Control Cabinets

  Rittal control cabinet with its unique structure and properties, is widely used in the control system of complex power plant, substation, industrial and mining enterprises, intelligent community, hotels, water treatment and wastewater treatment plant. - structural characteristics

1, the main framework using nine fold profiles, special quality three pass welded into a whole, firm and reliable structure, beautiful appearance;

The 2 door, lower margin from premium 25mm, rectangular frame is fixed on the door panel with every 25mm on a circular hole, not only strengthen the door strength, can also be used for the installation of electric wire harness, electrical and other components;

3, the mounting plate can be 25mm as the unit of distance, move back and forth, adjust depth;

4, the ten percent off section on every 25mm is equipped with a circular hole and square hole (Pei Hean beam loading using) make internal installation and fixation instrument is very convenient;

5, a top cover, side plate, back plate, the bottom plate are fixed through a screw, easy disassembly, installation is more convenient to work in the cabinet;

6, bottom line inlet hole three cover plates can be mutually replaced, freedom of movement, convenient import cable, opening into the line;

7, the base assembly and disassembly are convenient (self option);
