Specifications
| Primary brand |
Schneider Electric |
| Secondary brand |
Pro-face |
| Main function |
HMI / Display unit |
| Product series / family name |
GP4100 series |
| Functions |
Touchscreen operator interface (HMI)
Brightness control (16 levels)
passive air cooling circulation |
|
|
| Supply voltage (DC) |
10.2-28.8Vdc (12Vdc / 24Vdc nom.) |
| Display |
TFT color LCD
4.3"
480x272pixels
65K colors
white L.E.D. backlight display
analog resistive sensing |
|
|
|
|
|
| Memory capacity |
8MB FLASH EPROM memory capacity
128KB FLASH EPROM backup |
|
| Connection type |
1 x RJ45 connector (IEEE802.3i / IEEE802.3u - 10BASE-T / 100BASE-TX)
2 x USB connectors (1 x USB Type A + 1 x USB Mini-B) |
|
| Communication protocol |
Ethernet |
| Mounting mode |
Flush mounting |
| Speed |
10BASE-T / 100BASE-TX |
| Degree of protection |
IP65
NEMA 4X |
|

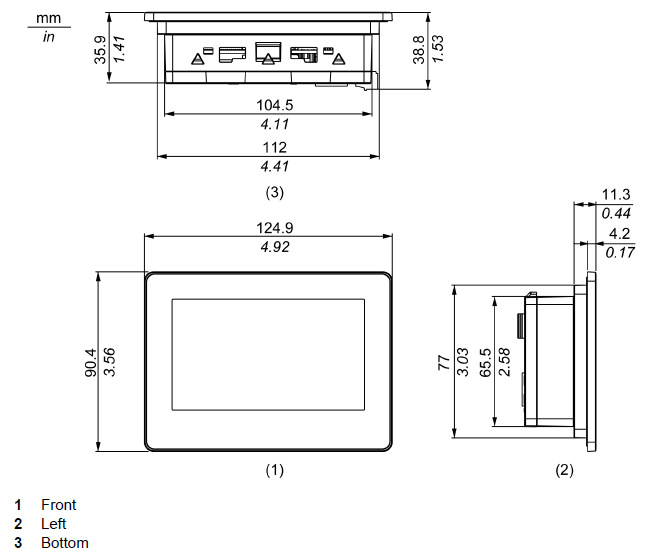

| Dimensions |
W124.9mm x H90.4mm x D38.8mm
W4.92" x H3.56" x D1.53" |
|
| Door cut-out height |
3.05" / 77.5 mm |
| Door cut-out width |
4.43" / 112.5 mm |
| Ambient air temperature for operation |
+32...+122°F / 0...+50 °C |
| Ambient air temperature for storage |
-4...140°F / -20...+60 °C |
| Chemical resistance |
Oil resistant |
| Power consumption |
5 W |

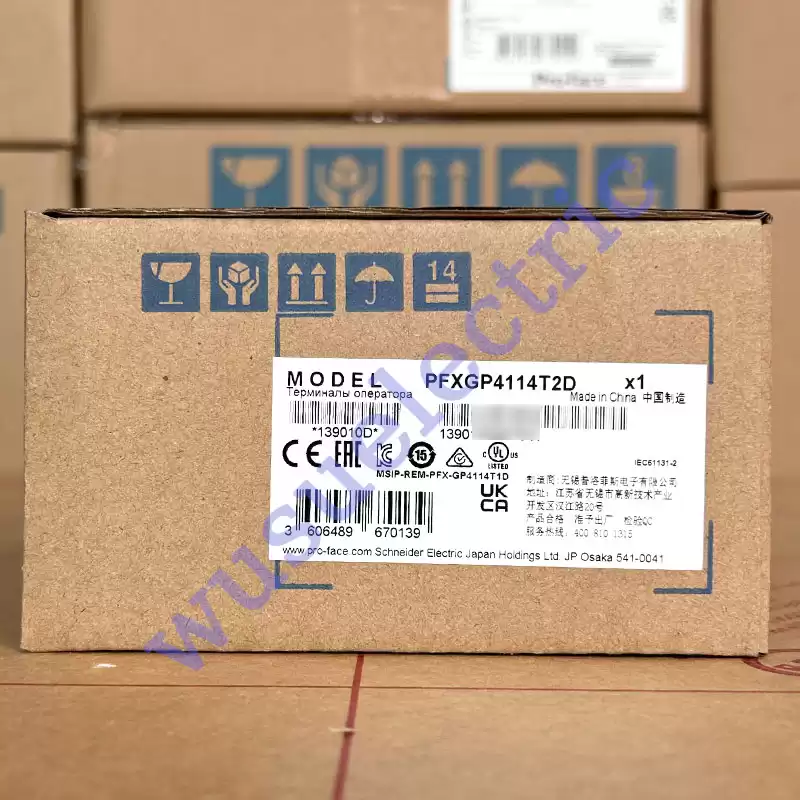

| Order code / Manufacturer SKU |
PFXGP4114T2D |
| Manufacturer product status |
Commercialized |
| Equivalent to |
GP-4114T2 |
| Compliant with standard(s) |
IEC 61131-2
IEC 61000-4-2
IEC61000-4-4 |
|
|
| Electrical durability |
(Backlight) 50 000 hours |
| Benefits |
Compact; but Pro-face DNA is inherited.
A compact HMI; GP4100 Series Color Model that has achieved high specifications; utilization of various software and high connectivity has joined the product lineup.
Its display area is twice as large and its resolution is eight times as powerful as the monochrome model.
Ready for the age of IoT; this compact HMI can collect data using a network and remotely monitor devices with a tablet. |
|
|
|
| Degree of pollution |
2 |
|
Product Description
A compact HMI, GP4100 Series Color Model that has achieved high specifications, utilization of various software and high connectivity has joined the product lineup. Its display area is twice as large and its resolution is eight times as powerful as the monochrome model. Ready for the age of IoT, this compact HMI can collect data using a network and remotely monitor devices with a tablet.
|
 |
