Specifications
| Primary brand |
Schneider Electric |
| Secondary brand |
Pro-face |
| Main function |
HMI / Display unit |
| Product series / family name |
GP4000 series |
| Functions |
Analog touchscreen operator interface (HMI)
Brightness control (16 levels)
passive air cooling circulation |
| Supply voltage (DC) |
19.2-28.8Vdc (24Vdc nom.) |
| Display |
TFT color LCD
5.7"
320x240pixels (QVGA)
65K colors (No blink)
16K colors (Blink)
white L.E.D. backlight display
analog resistive sensing |
| Color |
Silver overlay
gray bezel |
| Memory capacity |
16MB FLASH EPROM memory capacity
8MB user font area
132KB FLASH EPROM logic program area (15 000 steps / can be extend to 60 000 step)
320KB SRAM screen backup
64KB SRAM variable backup |
| Connection type |
2 x 9-pin D-Sub connectors (Serial COM1 + COM2; 7/8-bits)
1 x RJ45 connector (IEEE802.3i / IEEE802.3u - 10BASE-T / 100BASE-TX)
2 x USB connectors (1 x USB Type A + 1 x USB Mini-B) |
| Communication protocol |
RS-232C
RS-422
RS-485
Ethernet |
| Mounting mode |
Flush mounting |
| Speed |
10BASE-T / 100BASE-TX |
| Degree of protection |
IP65
NEMA 4X
NEMA 13 |

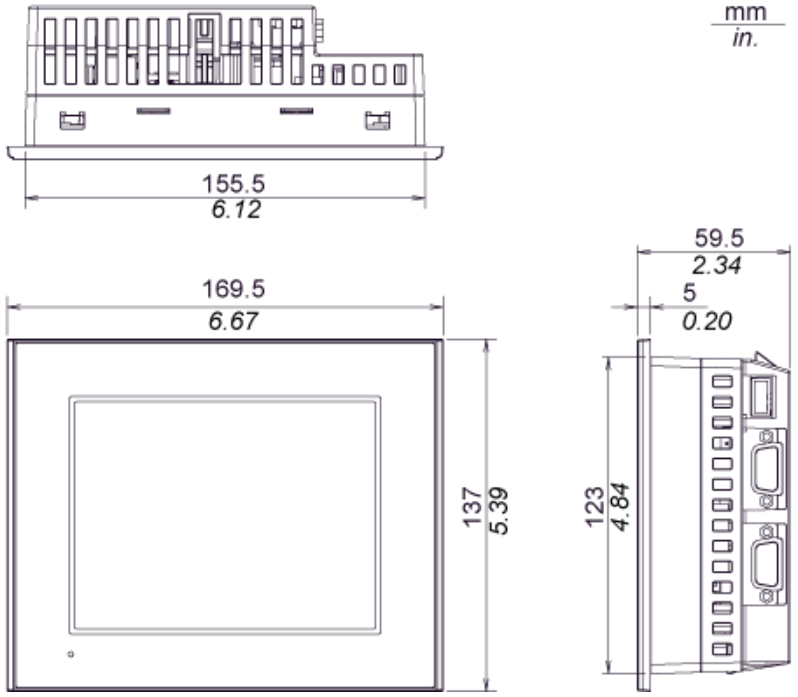

| Dimensions |
W169.5mm x H137mm x D59.5mm
W6.67" x H5.39" x D2.34" |
| Door cut-out height |
4.86" / 123.5 mm |
| Door cut-out width |
6.14" / 156 mm |
| Ambient air temperature for operation |
+32...+131°F / 0...+55 °C |
| Ambient air temperature for storage |
-4...140°F / -20...+60 °C |
| Chemical resistance |
Oil resistant |
| Power consumption |
10.5 W |
| Mechanical durability (at no load) |
(Touch panel) 1 000 000 operations |
| Equivalent to |
GP-4301T |
| Compliant with standard(s) |
IEC 61131-2
IEC 61000-4-2 |
| Electrical durability |
(Backlight) 50 000 hours |
| Benefits |
Pro-face Standard HMI.
GP4000 series has high connectivity with a wide range of industrial controllers and provides a variety of lineup in sizes; front colors; coating; and open frame.
Pro-face Standard HMI; GP4000 Series flexibly satisfies customers' needs. |
| Degree of pollution |
2 |
| Storage type |
SD card slot |
|

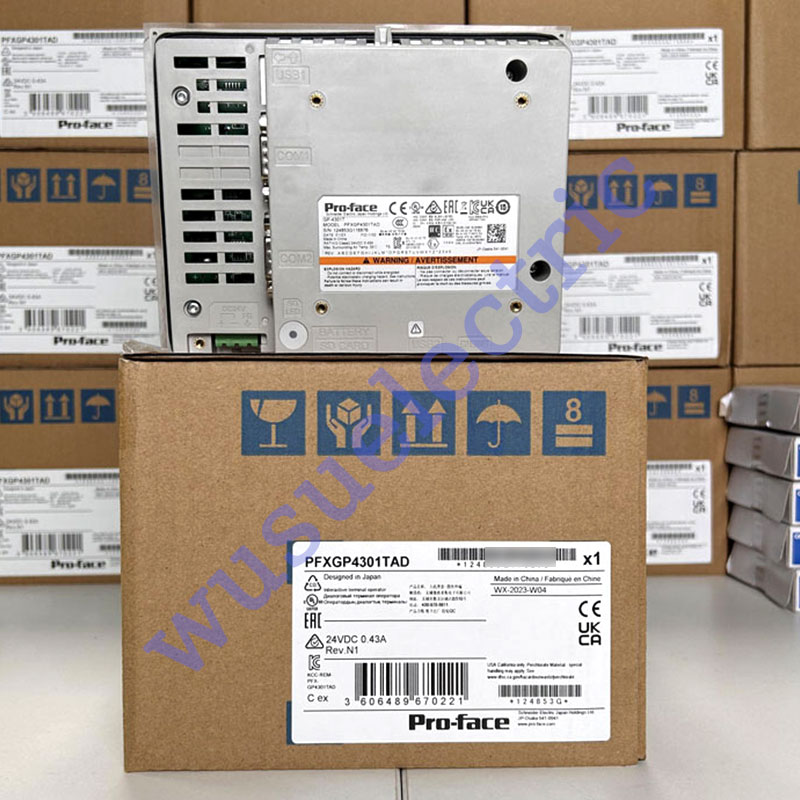

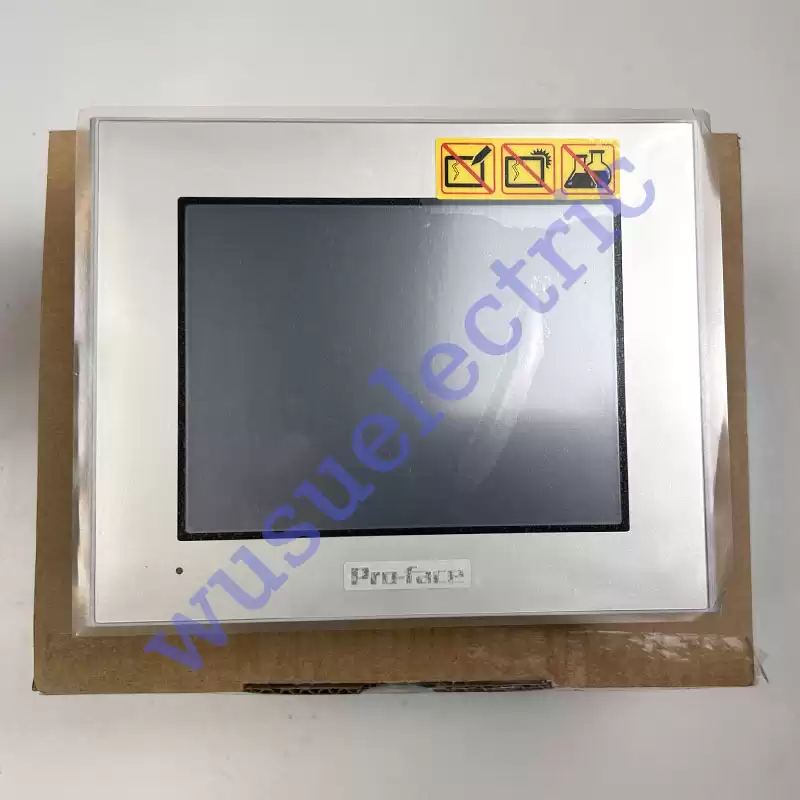

Product Description
The PFXGP4301TAD has a QVGA operator interface with a 320 x 240-pixel resolution. The unit is built with a White LED backlighting the display. While this LED is not user-replaceable, it is rated for over 50,000 hours of continuous operation before it decreases to a 50% brightness level.
install
The PFXGP4301TAD is designed to panel mount. Make sure the mounting location is solid and free of warping. This will ensure dust and other impurities won’t infiltrate behind the panel.
|
 |
