Specifications
| Primary brand |
Schneider Electric |
| Secondary brand |
Pro-face |
| Main function |
HMI / Display unit |
| Product series / family name |
GP4000 series |
| Functions |
Analog touchscreen operator interface (HMI)
Brightness control (16 levels)
passive air cooling circulation |
| Supply voltage (DC) |
19.2-28.8Vdc (24Vdc nom.) |
| Display |
TFT color LCD
10.4"
640x480pixels (VGA)
65K colors (No blink)
16K colors (Blink)
white L.E.D. backlight display
analog resistive sensing |
| Color |
Silver overlay
gray bezel |
| Memory capacity |
32MB FLASH EPROM memory capacity
8MB user font area
132KB FLASH EPROM logic program area (15 000 steps / can be extend to 60 000 step)
320KB SRAM screen backup
64KB SRAM variable backup |
| Connection type |
2 x 9-pin D-Sub connectors (Serial COM1 + COM2; 7/8-bits)
1 x RJ45 connector (IEEE802.3i / IEEE802.3u - 10BASE-T / 100BASE-TX)
2 x USB connectors (1 x USB Type A + 1 x USB Mini-B) |
| Communication protocol |
RS-232C
RS-422
RS-485
Ethernet |
| Mounting mode |
Flush mounting |
| Speed |
10BASE-T / 100BASE-TX |
| Degree of protection |
IP65
NEMA 4X
NEMA 13 |

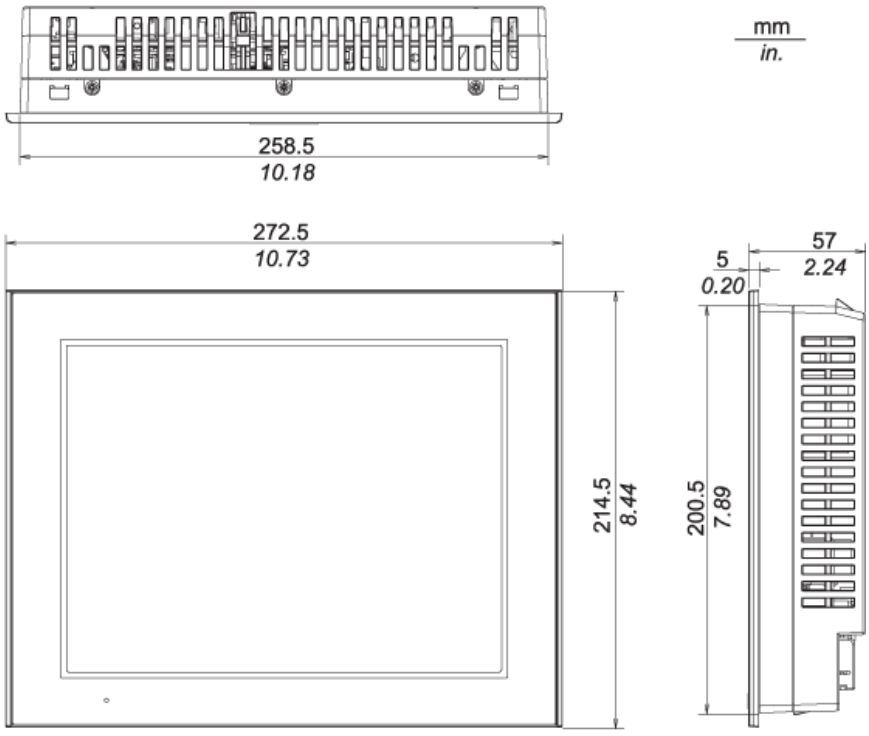

| Dimensions |
W272.5mm x H214.5mm x D57mm
W10.73" x H8.45" x D2.25" |
| Door cut-out height |
7.91" / 201 mm |
| Door cut-out width |
10.19" / 259 mm |
| Ambient air temperature for operation |
.+32...+131°F / 0...+55 °C |
| Ambient air temperature for storage |
.-4...140°F / -20...+60 °C |
| Chemical resistance |
Oil resistant |
| Power consumption |
17 W |
| Mechanical durability (at no load) |
(Touch panel) 1 000 000 operations |
| Equivalent to |
GP-4501T |
| Compliant with standard(s) |
IEC 61131-2
IEC 61000-4-2 |
| Electrical durability |
(Backlight) 50 000 hours |
| Benefits |
Pro-face Standard HMI.
GP4000 series has high connectivity with a wide range of industrial controllers and provides a variety of lineup in sizes; front colors; coating; and open frame.
Pro-face Standard HMI; GP4000 Series flexibly satisfies customers' needs. |
| Degree of pollution |
2 |
| Storage type |
SD card slot |
|
Product Description

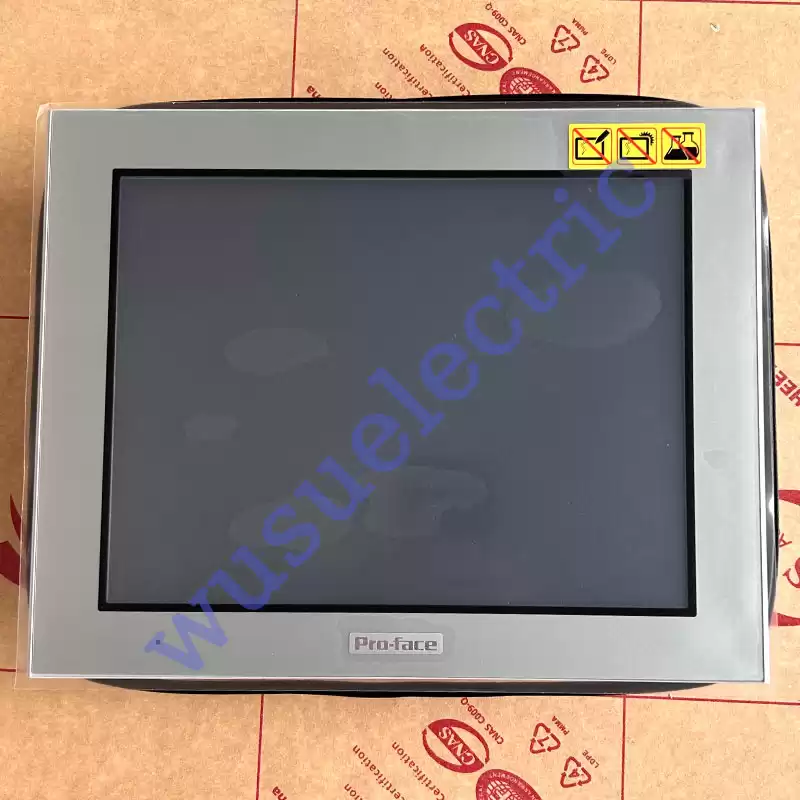

PFXGP4501TAD is a display panel interface that is manufactured by Proface. Do not store the GP panel in direct sunlight, dusty environments, or dirty environments. Do not expose the GP panel to chemicals, acids, paint thinner, organic solvents, powerful shocks, or excessive vibration. Regularly backup all screen data. After turning the unit off, wait a few seconds before turning the unit on again, or the unit may start incorrectly. An afterimage may occur if a single image is displayed for long periods of time. It is normal for shadows to appear at the top of the LCD, and it is normal for the display colors to appear as if they have changed.
|
 |
Parts of the GP panel are the display panel, the touch panel, the power lamp (green LED), the power input terminal block, the auxiliary input/output (AUX), the serial interface, the printer interface, and the tool connector. The touch panel is overlaid on top of the display panel. The power LED is on when the power cord is connected. The power input terminal block includes the input and ground terminals for the AC power cable. The auxiliary input/output (AUX) operates the touch switch, the system alarm, the buzzer, the RUN output signals, and the remote reset input signals. The serial interface is used for the RS-232C and RS-422 (serial) interfaces, which are connected to the Host (PLC). The printer interface is where the printer is connected. The tool connector is where the data transfer cable, the memory loader, or the bar code reader can be connected.
