Specifications
| Primary brand |
Schneider Electric |
| Secondary brand |
Pro-face |
| Main function |
HMI / Display unit |
| Product series / family name |
LT4000M series |
| Functions |
Touchscreen operator interface (HMI)
Brightness control (16 levels)
passive air cooling circulation |
| Design |
rear controller (source type inputs) |
| Supply voltage (DC) |
20-28.8Vdc (24Vdc nom.) |
| Display |
TFT color LCD
3.5"
320x240pixels (QVGA)
65K colors
white L.E.D. backlight display
analog resistive sensing |
| Color |
PT404 (front module) |
| Memory capacity |
16MB FLASH EPROM memory capacity
128KB SRAM data backup (uses lithium battery) |
| Connection type |
2 x USB connectors (1 x USB Type A + 1 x USB Mini-B) |
| Communication protocol |
RS-232C
RS-485
CANopen
Ethernet |
| Mounting mode |
Mounts on door with 22mm hole |
| Digital inputs |
10 x digital inputs (24Vdc; PNP; Source; 5mA)
2 x digital inputs (24Vdc; 50-100Hz high-speed counter / pulse catch; PNP; Source; 5mA) |
| Digital outputs |
4 x digital outputs (PNP / Source / 24Vdc / 3mA)
2 x digital outputs (PNP/Source; 24Vdc; 50mA; 50kHz/65kHz PTO pulse train or PWM output) |
| Analog inputs |
2 x analog inputs (-10...+10Vdc / 0-10Vdc / 0-20mA / 4-20mA; 13-bit conversion)
2 x analog inputs (Thermocouple types J / K / R / B / S / T / E / N; RTD types Pt100 / Pt1000 / Ni100 / Ni1000; 16-bit conversion) |
| Analog outputs |
2 x analog outputs (-10...+10Vdc / 0-10Vdc / 0-20mA / 4-20mA; 12-bit conversion) |
| Degree of protection |
IP65 |

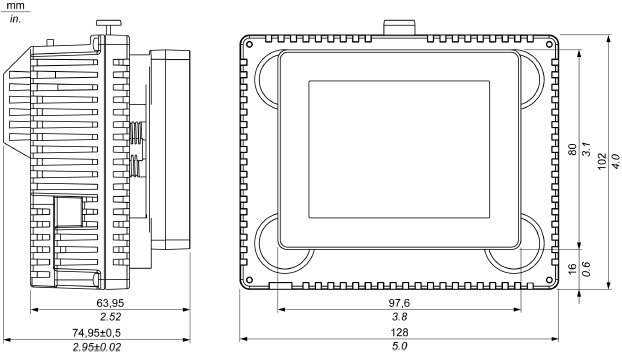

| Dimensions |
W128mm x H102mm x D74.95mm
W5" x H4" x D2.95" |
| Net Height (mm) |
(Display Area) 70.56 mm |
| Net Width (mm) |
(Display Area) 52.92 mm |
| Door cut-out width |
(mounting hole) 0.87" / 22 mm |
| Ambient air temperature for operation |
+32...+122°F / 0...+50 °C |
| Ambient air temperature for storage |
-4...140°F / -20...+60 °C |
| Power consumption |
9 W |
| Mechanical durability (at no load) |
(Touch panel) 1 000 000 operations |
| Equivalent to |
LT-4201TM |
| Compliant with standard(s) |
IEC 61131-2
IEC 60529
IEC 61131-2
CE
CSA
UL
RoHS
GOST
KC
DNV |
| Benefits |
LT4000M Series allows installation in a standardized 22mm diameter hole and provides both HMI and digital analog control in a single unit.
It's a space and cost-saving product. |
|
Product Description

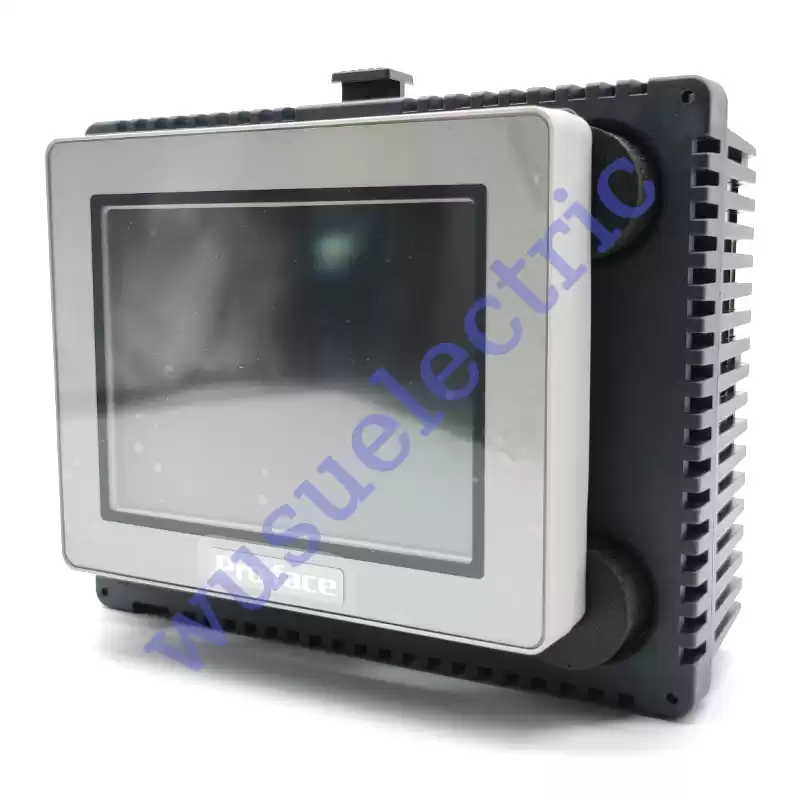

The PFXLM4201TADAC is a touchscreen interface in the Pro-face LT4000M series. This human-machine interface (HMI) has a 3.5-inch display with a resolution of 320 x 240 (QVGA) and a lifetime of 1 million or more touches. The white LED-backlit display includes an ON/OFF control as well as 16 optional brightness levels, and users have the capability to adjust the screen saver activation time as needed.
The PFXLM4201TADAC has a source output type. There are 12 Points for standard digital input (2 points for fast input) and 6 points for standard digital output (2 points for fast output). For analog input/output, this unit has 2ch 13-bit analog inputs and 2ch analog 16-bit inputs for thermocouples, and 2ch 12-bit analog outputs.
The PFXLM4201TADAC boasts several ports: Serial (COM1), D-sub9 (CANopen master), Ethernet, USB 2.0, and USB 2.0 Mini-B.
|
 |
