Specifications
| Primary brand |
Schneider Electric |
| Secondary brand |
Pro-face |
| Main function |
HMI / Display unit |
| Product series / family name |
LT3000M series |
| Functions |
All-in-one touchscreen display module (HMI)
Brightness control (8 levels)
passive air cooling circulation |
| Design |
source type inputs |
| Supply voltage (DC) |
19.2-28.8Vdc (24Vdc nom.) |

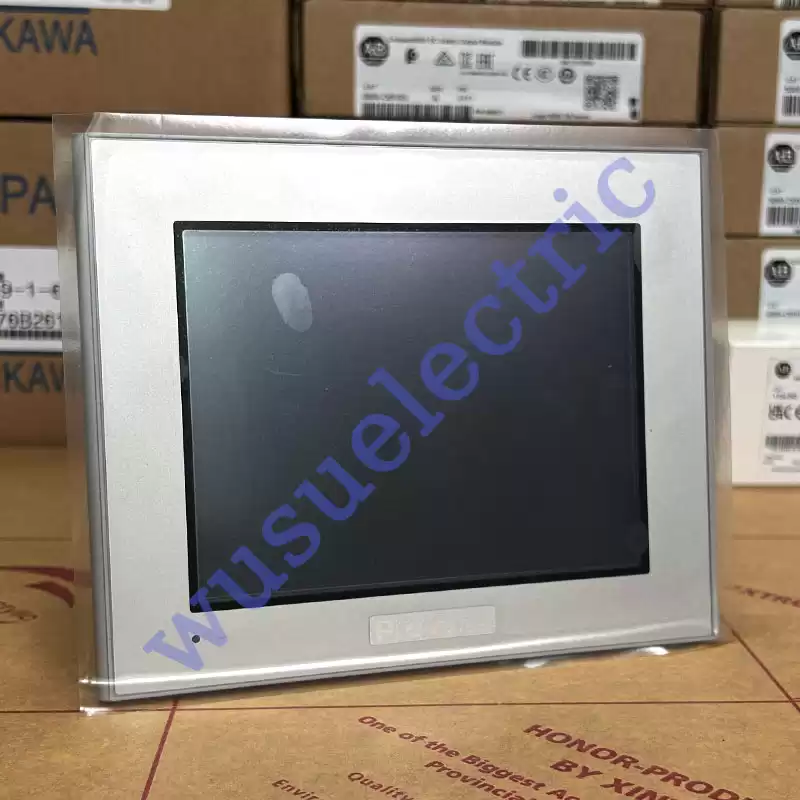

| Display |
TFT color LCD
5.7"
320x240pixels (QVGA)
65K colors
white L.E.D. backlight display
analog resistive sensing |
| Memory capacity |
6MB FLASH EPROM memory capacity
132KB FLASH EPROM logic program area (15 000 steps / can be extend to 60 000 step) (if used with GP-PRO EX)
128KB SRAM data backup (uses lithium battery)
64KB SRAM control (uses lithium battery) |
| Connection type |
1 x 9-pin D-Sub connector (Serial COM1)
1 x RJ45 connector (IEEE802.3u - 10BASE-T / 100BASE-TX)
1 x USB connector (Type A)
1 x AUX / Communication expansion unit connector |
| Communication protocol |
RS-232C
RS-422
RS-485
Ethernet |
| Speed |
10BASE-T / 100BASE-TX |
| Digital inputs |
16 x digital inputs (PNP / Source) |
| Digital outputs |
16 x digital outputs (PNP / Source) |
| Degree of protection |
IP65
NEMA 4X
NEMA 13 |

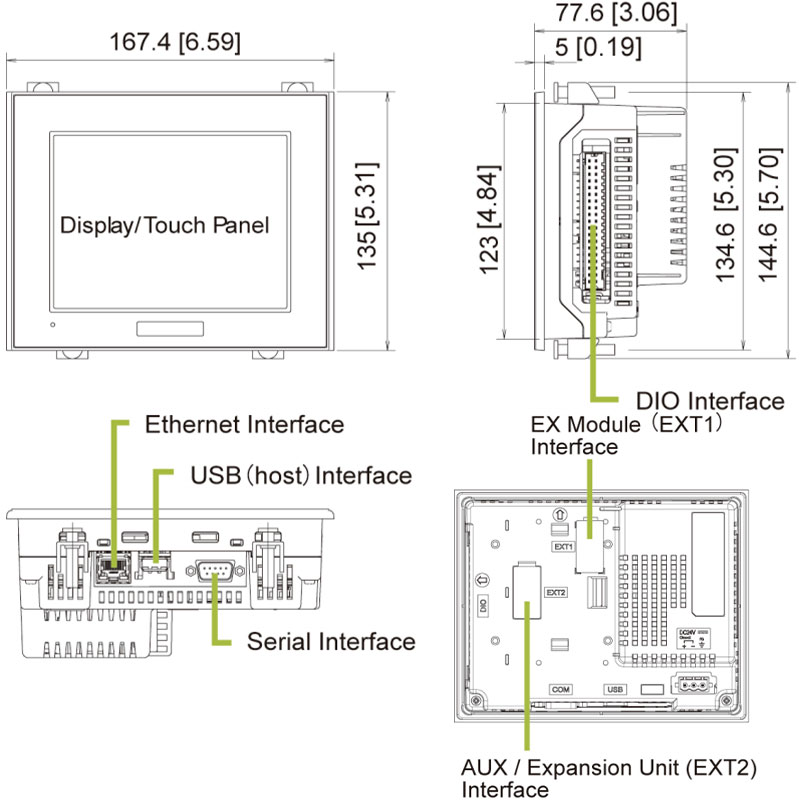

| Dimensions |
H135mm x W167.5mm x D78mm
H5.31" x W6.59" x D2.87"
embedding path H123.5mm x W156mm x D5mm
embedding path H4.86" x W6.14" x D0.2" |
| Door cut-out height |
123.5 mm |
| Door cut-out width |
156 mm |
| Ambient air temperature for operation |
+32...+122°F / 0...+50 °C |
| Ambient air temperature for storage |
-4...140°F / -20...+60 °C |
| Power consumption |
27 W |
| Mechanical durability (at no load) |
(Touch panel) 1 000 000 operations |

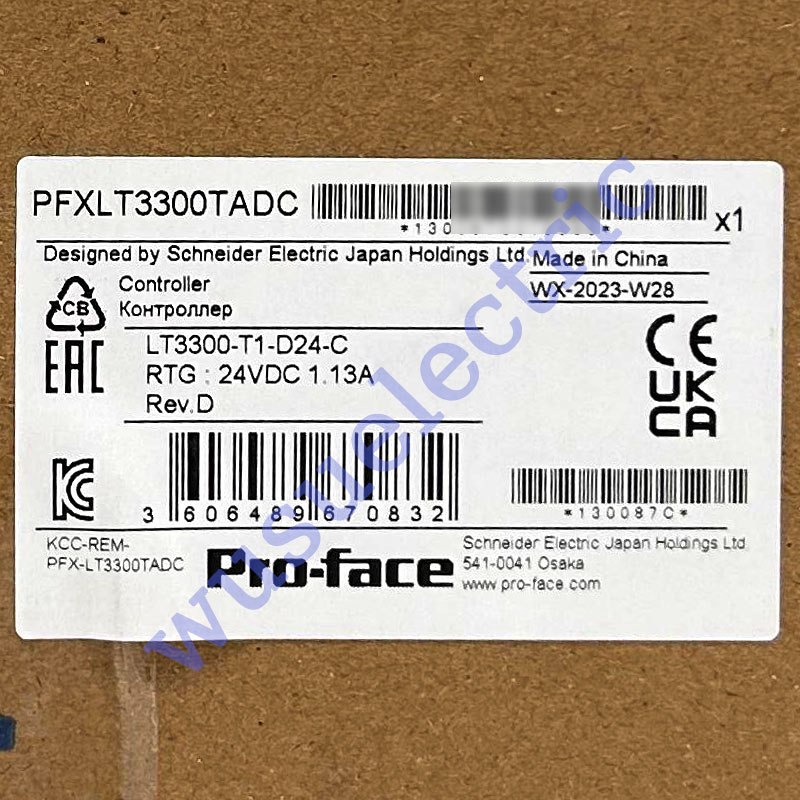

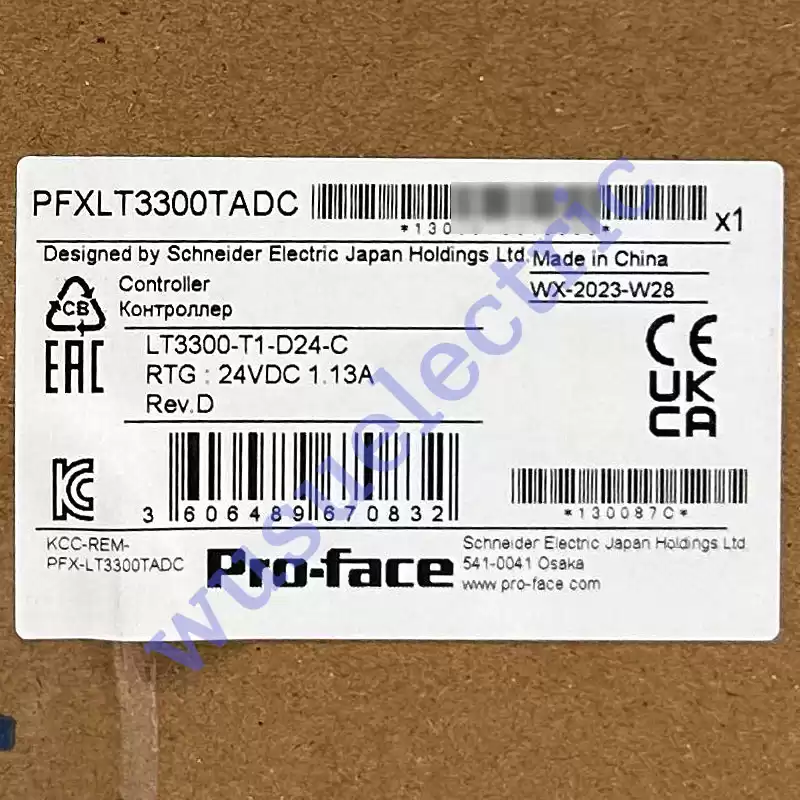

| Equivalent to |
LT-3300T
LT3300-T1-D24-C |
| Compliant with standard(s) |
IEC 61131-2 |
| Electrical durability |
(Backlight) 50 000 hours |
| Benefits |
The LT3000 operator interface family combines PLC functionality integrated with an HMI to create a cost effective; high value machine interface solution. |
| Embedding depth |
78 mm |
| Degree of pollution |
2 |
|
Product Description
The input voltage on this unit is 24 VDC. It has a power consumption rating of 27 watts or less. The HMI offers Ethernet capabilities along with RS232C/RS44/RS485 Serial port connectivity. Up to three I/O expansion units can be mixed and matched and added to this operator interface.
|
 |
