Item : AdBlue® Production Machine
Model Number :
|
EBR-550B
|
Dimension :
|
1100(L)x1100(W)x1500(H)mm
|
Capacity (at 25 ℃):
|
600KG/hour
|
Material:
|
304SS,FRB,PP,PVC
|
Weight:
|
400kg
|
Power:
|
2600W
|
Required power(1000kg Adblue):
|
750W
|
Voltage:
|
220V
|
Fragile filter specifications:
|
3x5.0μ(20inch)PP filter, 5x0.22μ(10inch)filter,RO,exchange resin
|
Certification:
|
ISO9001-2015
|
Water supply requirements:
|
0.6T/H, 0.2MPa
|
Purified water quality control:
|
Resistivity greater than 15MΩ / cm
|
Wastewater discharge:
|
0.4T/Hour
|
Weighing accuracy:
|
0.3%
|
Control panel:
|
PLC touch screen and remote control
|
Installation requirements:
|
Ground level, no dirt on site, 4 wheels at bottom of unit, removable
|
Brief Introduction of Process
Users use tap water as raw water(As its conductivity is below 500μS.CM, hardness 300-600 mg/L),The following project is proposed for the production of 600KG/hour ADBLUE production system, primary reverse osmosis(RO)＋double stage reverse osmosis(RO) + EDI/polyresin column + Reaction tank process.

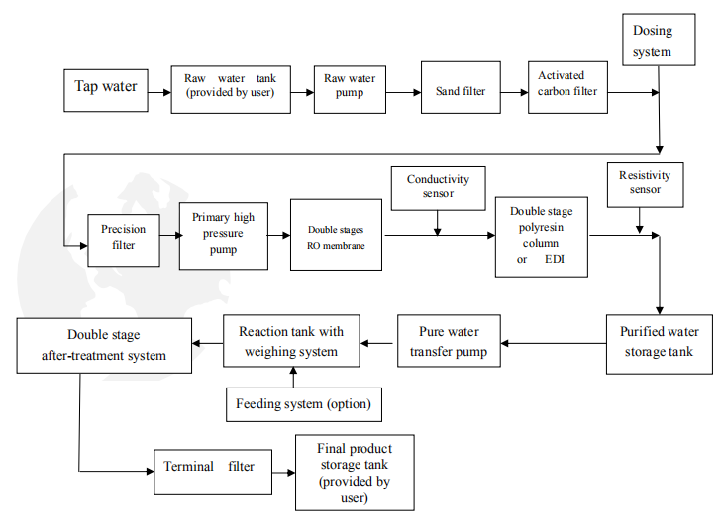

Operation flowchart of AdBlue® Production Machine
