Professional Factory RG 59 20AWG Signal Coaxial Cable
PRODUCTS NAME
Professional Factory RG 59 20AWG Signal Coaxial Cable.
PRODUCTS KEYWORDS
Coaxial Cable, SYWV75-5, RG 6, RG 11, RG 59, CCTV cable, CATV cable, CT coaxial cable, Cable Television Connect Cable, video signal, professional factory.
PRODUCTS APPLICATION
Professional Factory RG 59 20AWG Signal Coaxial Cable. RG6, RG11, RG58, RG59, RG179, RG213 cables for high quality RG Type Coaxial cables, 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals.
PRODUCTS FEATURES
Professional Factory RG 59 20AWG Signal Coaxial Cable, can be divided into 2 kind of types, baseband coaxial cable and broadband coaxial cable. The coaxial cable has the follow features:
1. Excellent conductor medium, low attenuation and high signal transmission.
2. High performance physical foam insulation, low dielectric constant, small attenuation loss, and stable long-distance transmission.
3. The product has passed the UL 444 certification and has excellent quality.
PRODUCTS RELATIVE-MERITS
Professional Factory RG 59 20AWG Signal Coaxial Cable, advantages of coaxial cable: it can support high bandwidth communication on a relatively long line without repeater. However, their disadvantages are also obvious: first, they are large in size, and the diameter of the thin cable is 1.02mm, which requires a lot of space in the cable duct; Second, it can not bear entanglement, pressure and severe bending, which will damage the cable structure and prevent signal transmission; Finally, the cost is high, and all these disadvantages can be overcome by conventional network lines. Therefore, in the current LAN environment, many places can use network cable instead of coaxial cable.
PRODUCTS STRUCTURER

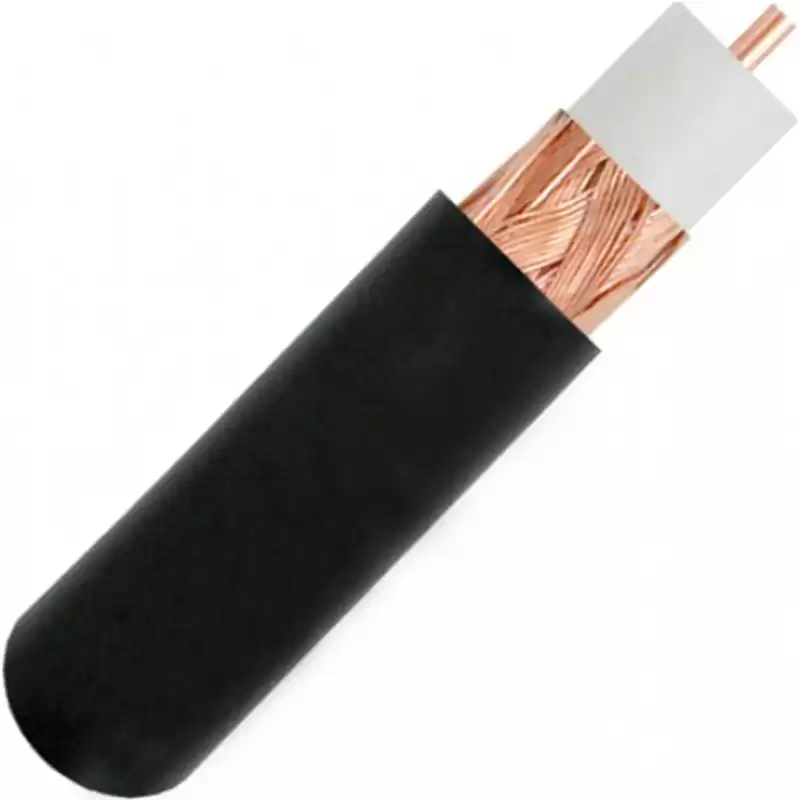

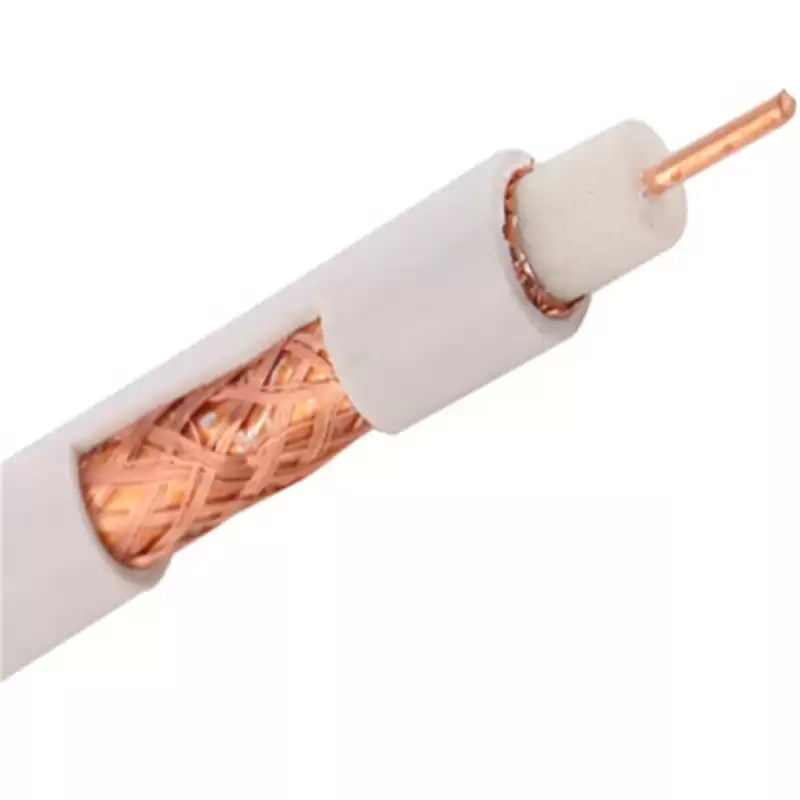

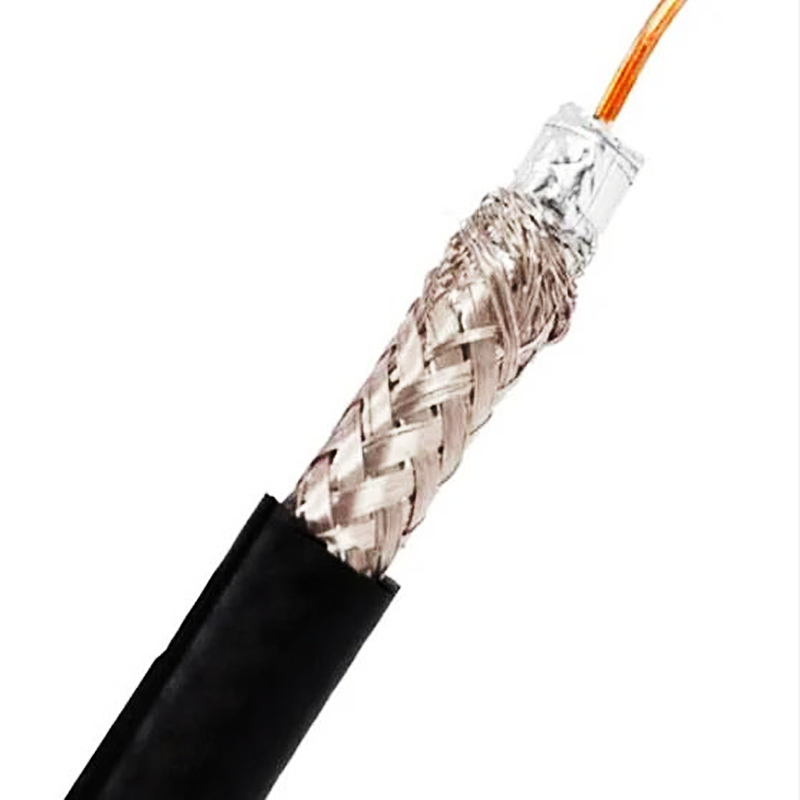

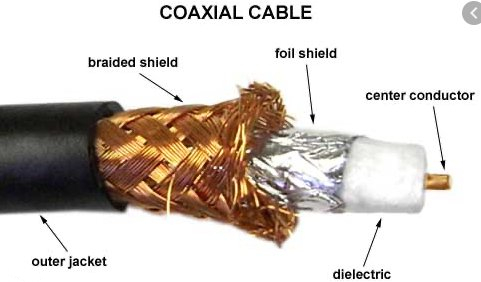

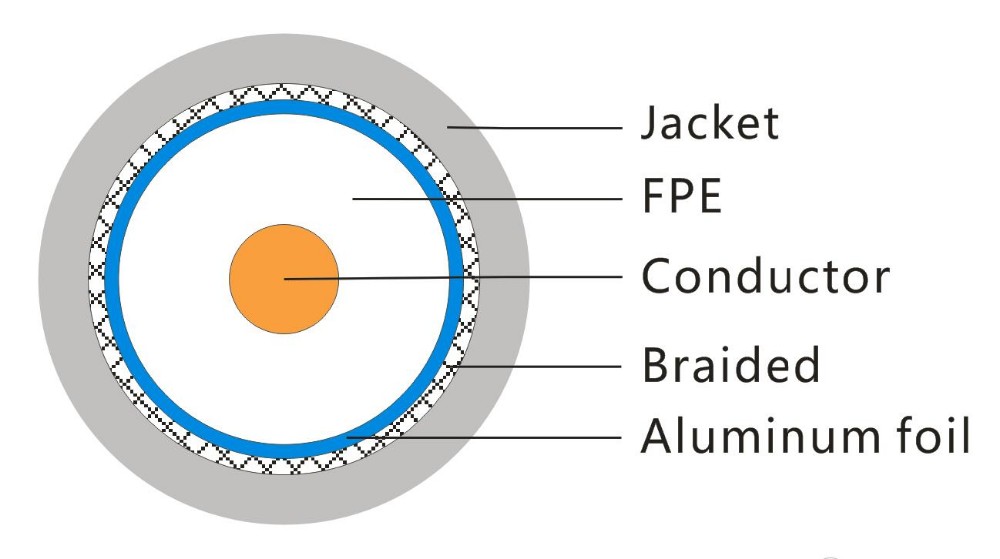

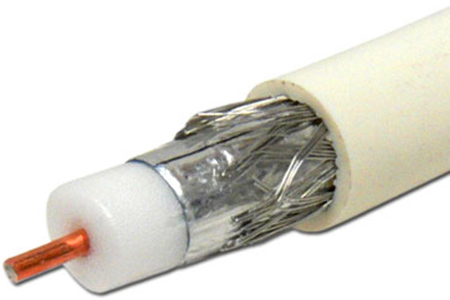

Professional Factory RG 59 20AWG Signal Coaxial Cable
1.Conductor Material: Plain annealed copper wire, solid Class 1, 20AWG.
2. Insulated Material: Foamed HDPE (polyethylene).
3. Shielded Material: Aluminum Foil Tape

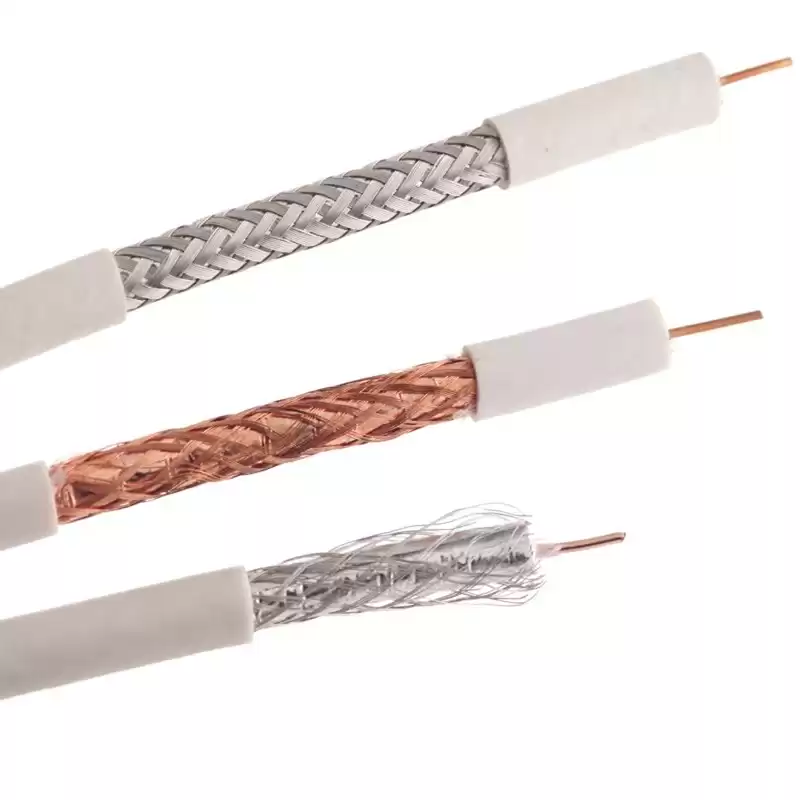

4. Braided Material: Bare copper wire, or tinned copper wire.
5. Sheath Material: PVC or LSZH.
PRODUCTS DIMENSIONS
|
Item No.
|
Description of Products
|
|
Products Name
|
Professional Factory RG 59 20AWG Signal Coaxial Cable.
|
|
Conductor Material
|
Plain annealed copper wires, Class 1.
|
|
Conductor Structure
|
1C x 1/0.81 mm, 20AWG, 0.064".
|
|
Insulation Material
|
Foamed PE (Polyethylene).
|
|
Insulation Thickness
|
3.66 mm, 0.144".
|
|
Insulation Colour
|
white.
|
|
Shielded Material
|
Aluminum Foil Tape, 100% coverage, overlap >2mm.
|
|
Braided Material
|
Bare or tinned Copper Wire; coverage: >60%; 64x0.10mm.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
0.76 mm, 0.03".
|
|
Sheath Colour
|
White, or black.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
6.1 mm, 0.305".
|
|
About Net Weight
|
28 kg/km.
|
|
Production Standard
|
GY/T 135-1998, IEC 60096-0-1-2012, EN 50117-1, ANSI/SCTE 74.
|
|
Packing Type
|

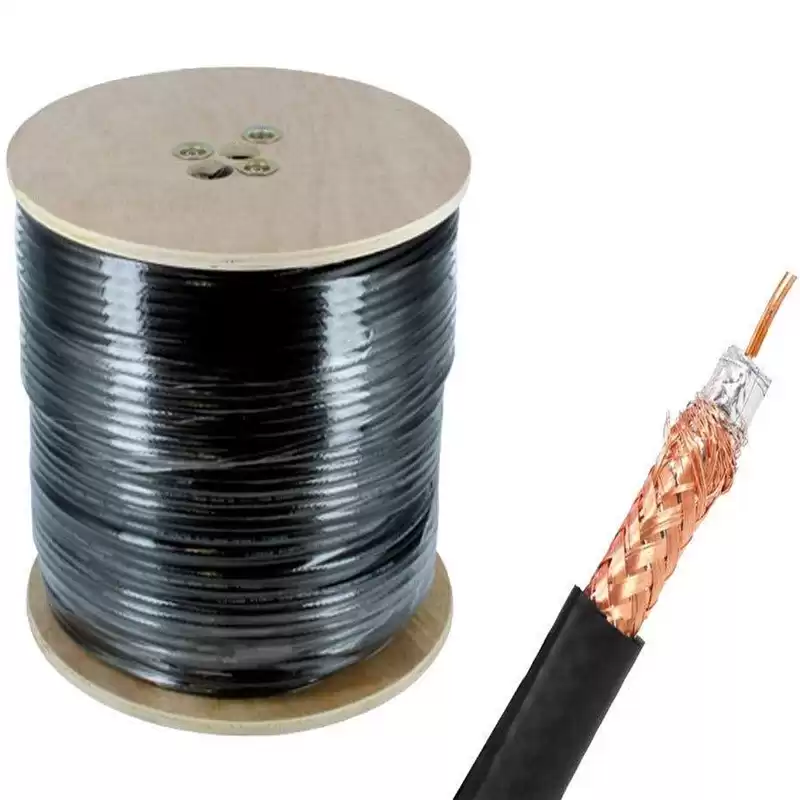

100 Meters per roll, the rolls will be loaded on Wooden Pallet;
the wooden pallet must be showed the IPPC logo.
|
COMPANY PROFILE
Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.
---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
4. Can you give me the price discount?
We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.
In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.
5. Can you provide the OEM, OBM and ODM services?
Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.
