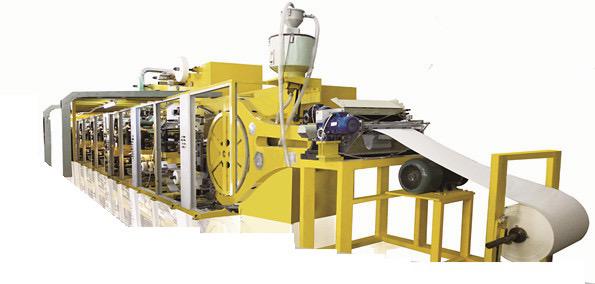

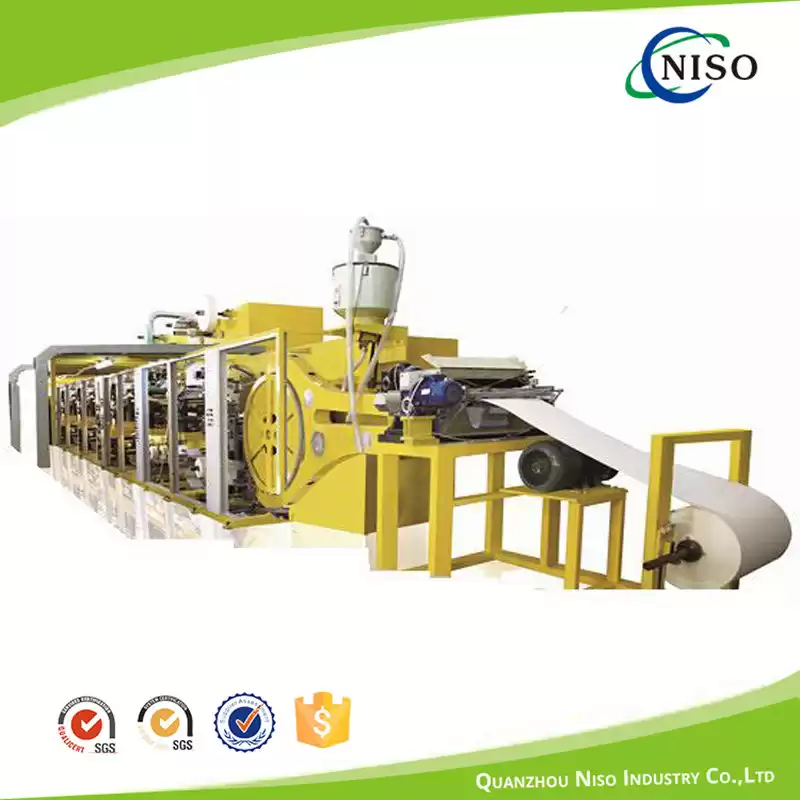

Professional HY400 Sanitary Napkin Production Line
Machine description

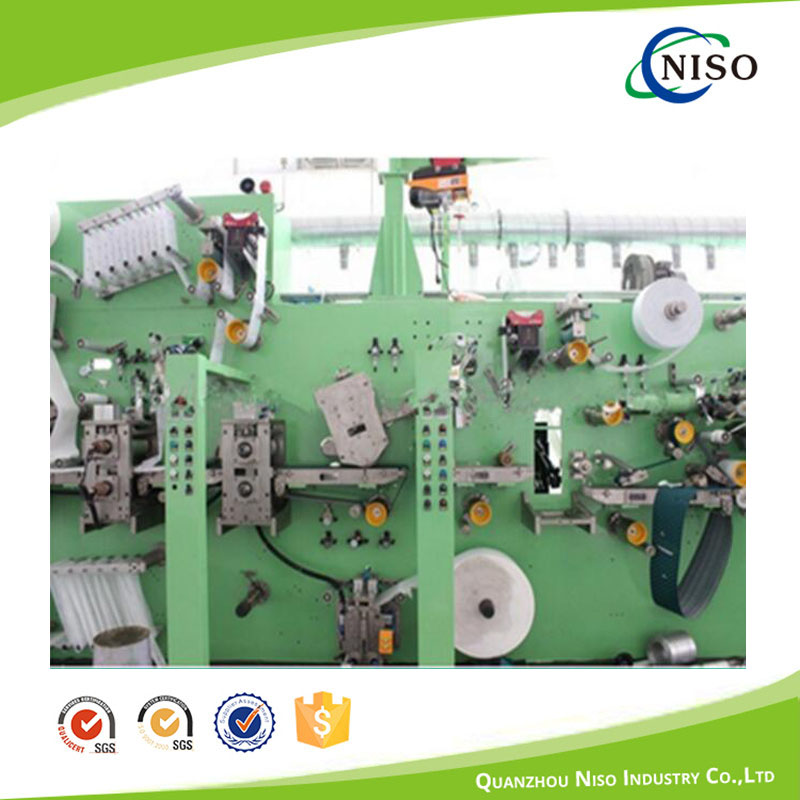

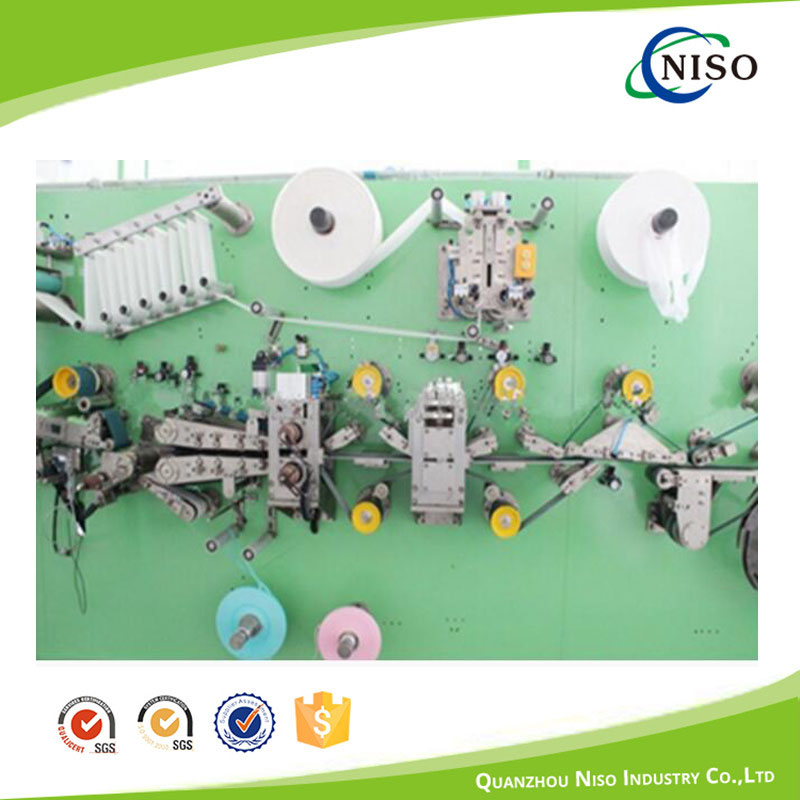

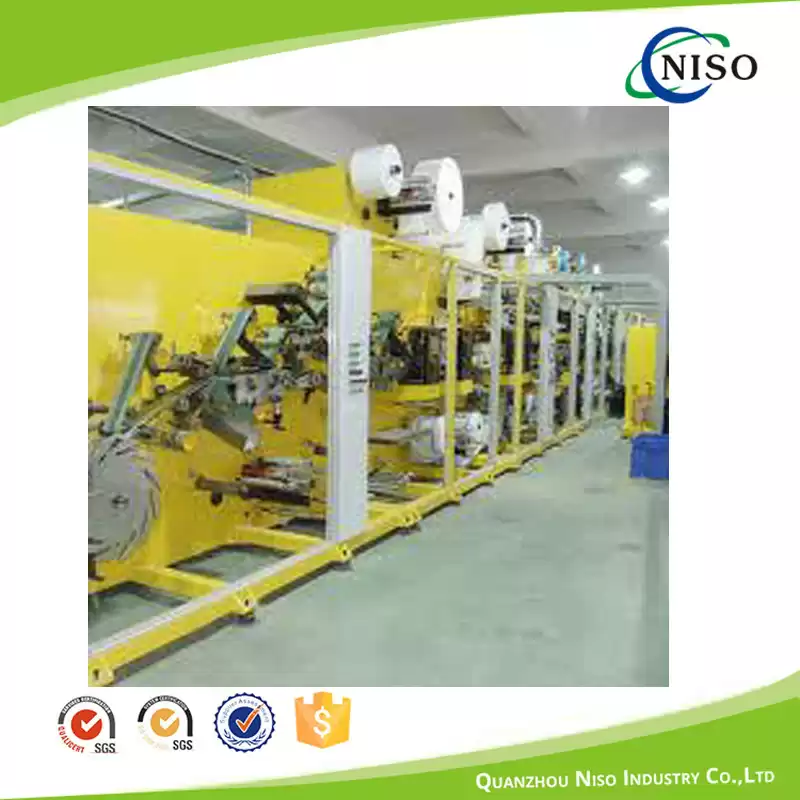

Machine total system
Pulp crusher system
SAP feeding system
Drum forming system
Lower tissue paper feeding system
SAP paper feeding system
Core wrapping system
Compacting roller system
ADL feeding & cut system
Perfume feeding system
Mat cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Flow cannel embossing system
Side sealing system
PE film feeding system
Back release paper feedig & cutting system
Outer cutting system
Edge scrap collecting system
180 degree transfer system
Wing release paper feeding & cutting system
90 degree transfer system
Packing film feeding system
Product seal cutting system
Easy tape feeding & cutting unit
Out put rejection system
Machine parameter
|
1.Machine name
|
sanitary napkin production line
|
|
2.Machine model
|
HY400
|
|
3.Designed production speed
|
500 PCS/min
|
|
4.Stable production speed
|
300-400 PCS/min
|
|
5.Machine power
|
three-phase five-wire (380V, 50Hz)
|
|
6.Machine capacity
|
about 120KW (including hot melt applicators and air compressor)
|
|
7.Machine size
|
18m×7m×3.5m (L×W×H) (excluding hot melt applicators, set temporarily)
|
|
8.Machine color
|
as per customer’s requirement confirmed by both parties
|
|
9.Machine direction
|
from to , (face to operating side, raw materials to finished products)
|
|

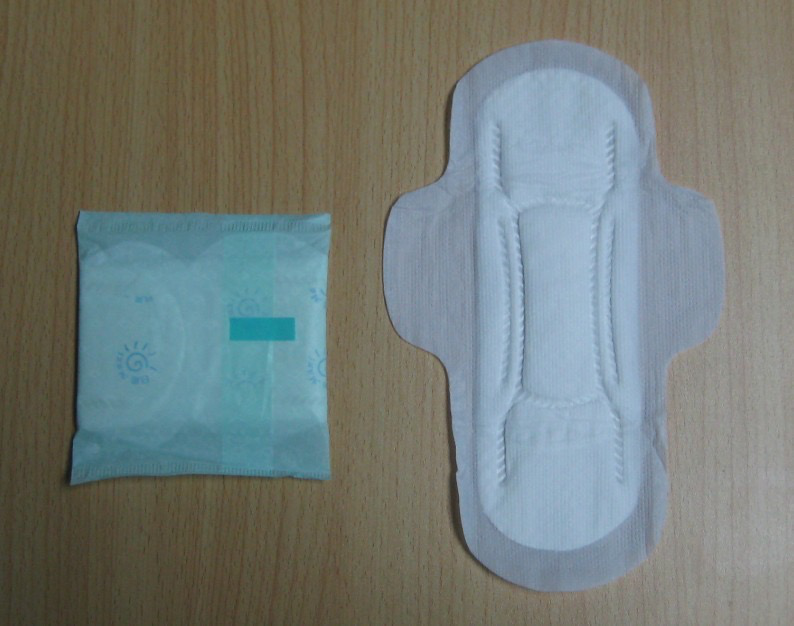

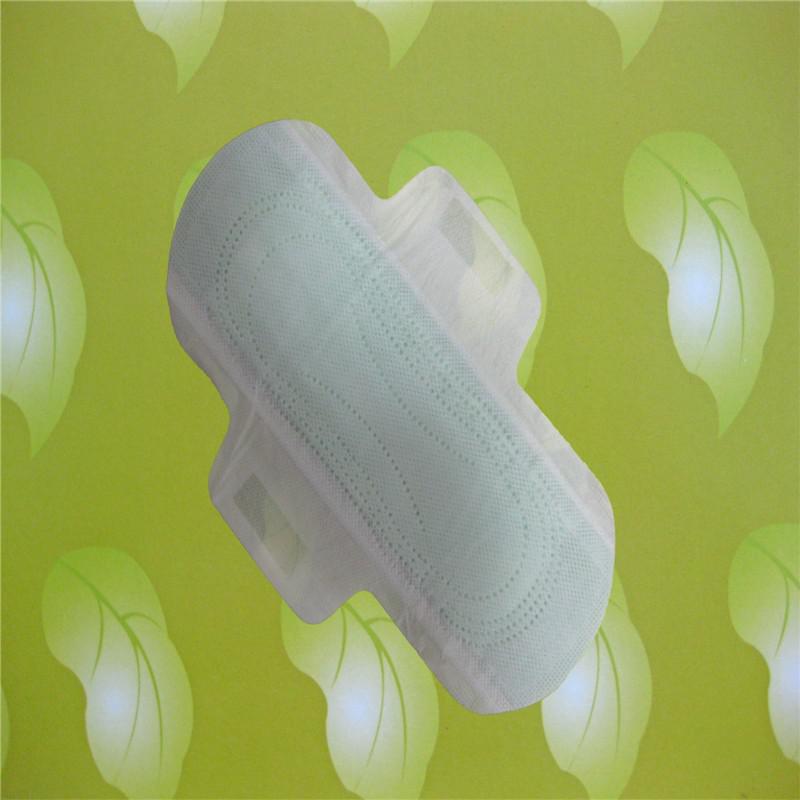

10.Finished products
|
sanitary napkin as per samples confirmed by both parties
|
|
11.Product specification
|
as per samples confirmed by both parties
|
|
12.Product structure
|
( the product’s structure will be modified according to the client’s samples)
|
|
a)Fluffy core type
|
top N.W. fabric + wood pulp with SAP wrapped by tissue paper
+ hydrophobic N.W. fabric + P.E. film + back & wing release paper +
packaging film + easy tape
|
|
b)Ultra thin type
|
top N.W. fabric + airlaid paper + SAP paper + hydrophobic N.W. fabri
c + P.E. film + back & wing release paper + packaging film + easy tape
|
|
13.Rate of pass
|
≥98% (exclude the defects from H.M. applicator and auto-splicing of raw materials on joint)
|
|
14.Air pressure
|
0.6-0.8Mpa
|
