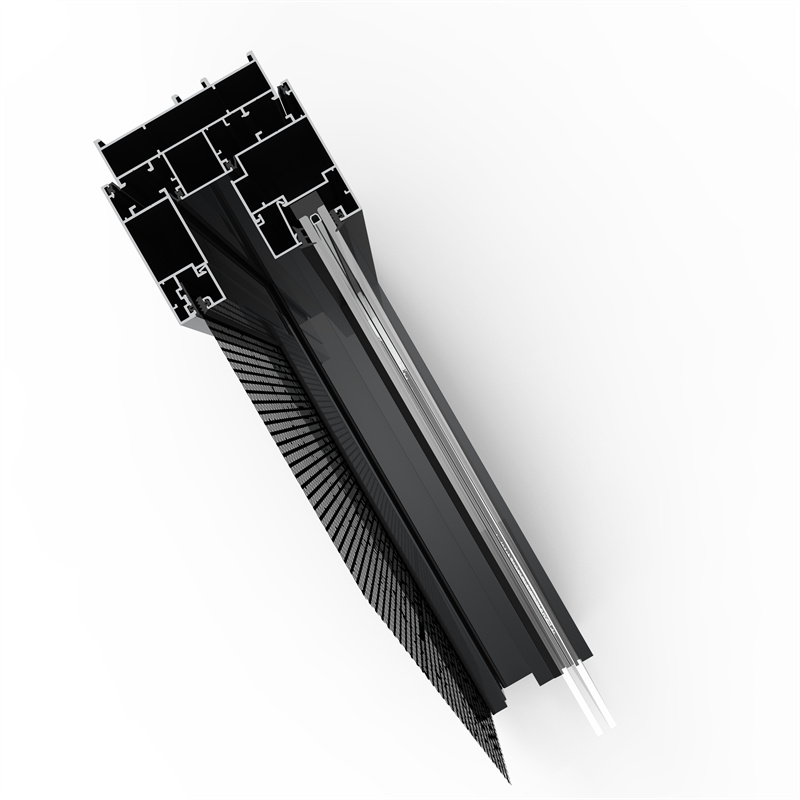

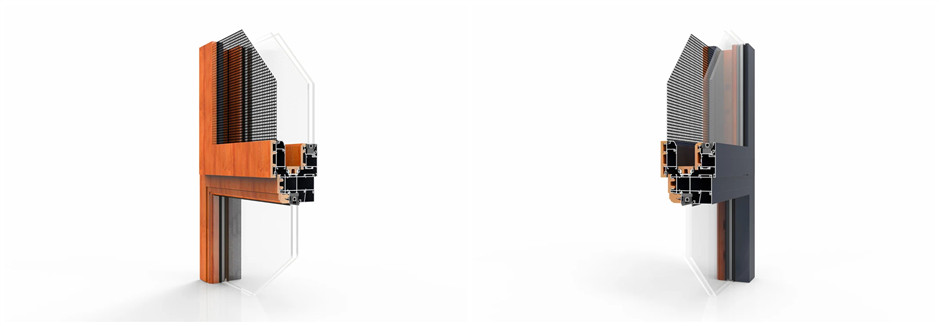

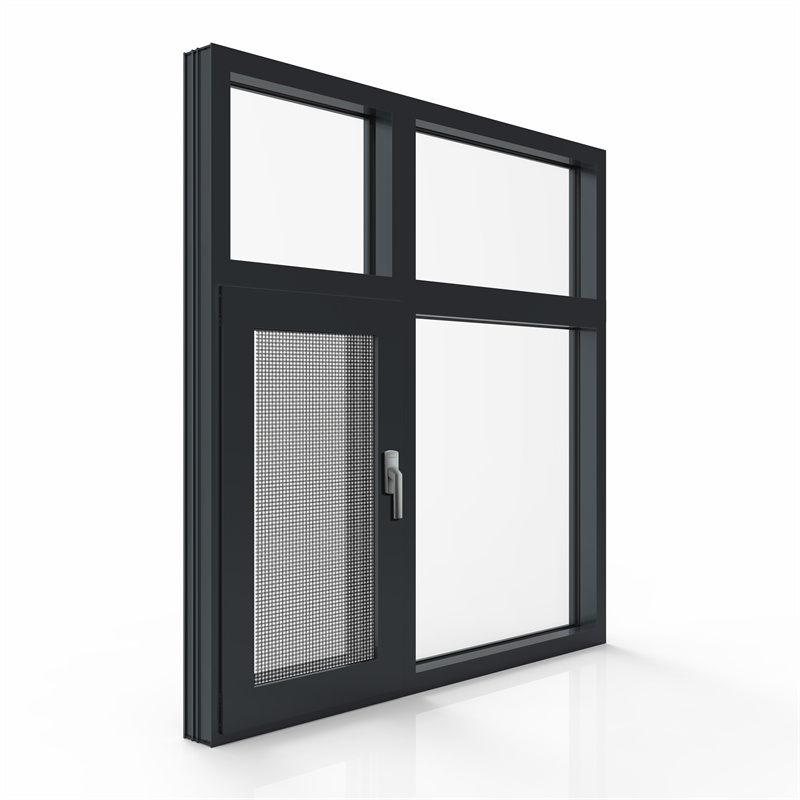

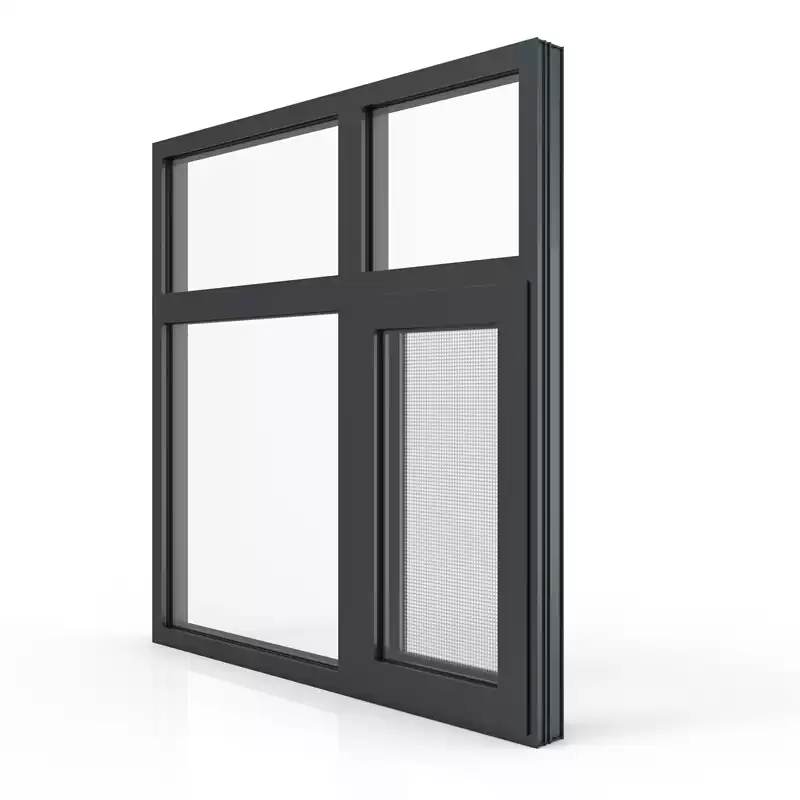

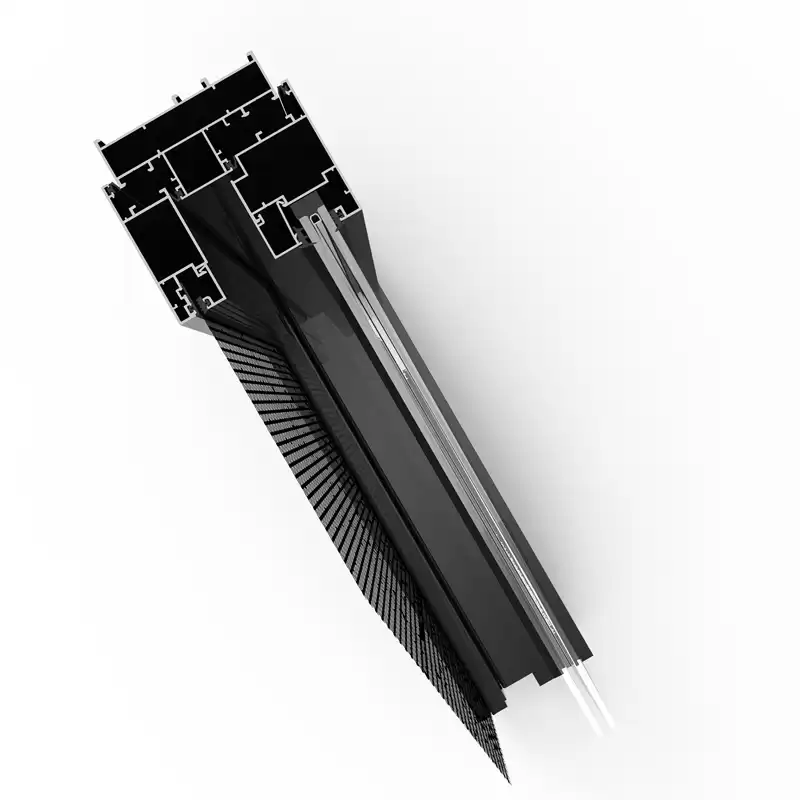

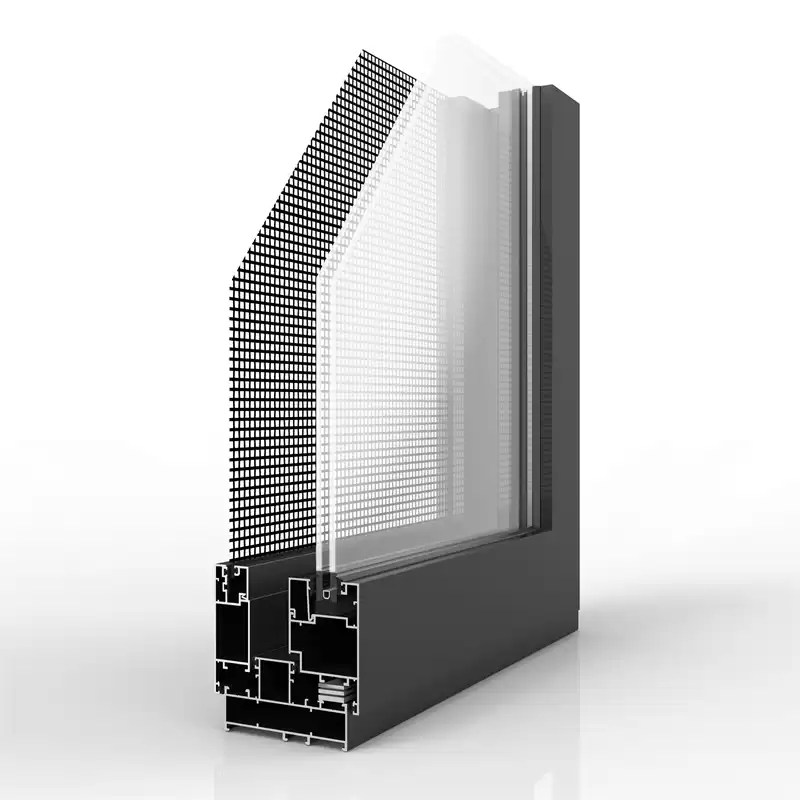

Professional Level Hw100 Aluminium Casement/Awing Window with Steel Fly Screen
Aluminium awning windows have a pleasant slimline architectural appearance, which make them one of the more discreet window types available. Often chosen because of their functioinal design, awning windows are ideal in situations where furniture or kitchen benches prevent easy access to the window. The unique chain winder allows easy operation without interfering with insect/fly or security screens.
Another feature of the awning window is that it can be left partly open during inclement weather to allow continuous ventilation, while at the same time not letting in any of nature's undesirable elements.
- HW100 series is a outside inside casement system for elegant window, having multi opening ways of opening outside, inside, awning and tilt-turn.
- Inward side glass bead solves the security problems in low buildings and the safety installation problems in high buildings.
- The new drainage design guarantees the excellent water tightness.
- Two different frames thickness are available to select, we can offer the most cost-effective solution depends on customers requesting.
| Parameters |
|
Suitable Width/Height of Sash
(mm)
|
Visible Width/Height
(mm)
|
Aluminium width
(mm)
|
Glass(Thickness) |
|
Outswing Casement Window
-Width 300-800mm
-Height 300-1800mm
-Weight 45kg
|
HW100 (with steel fly screen sash)
Frame Width 49mm;
Sash Width 74mm.
|
HW100(with steel fly screen sash)
Frame Depth 100mm
Sash Depth 49mm
|
SGU:
4-10mm
DGU:
14-35mm
|
| Performance |
|
Heat Preservation Performance
W(m2.k)
|
Sound Insulation Performance
(DB)
|
Watertight Performance
(Pa)
|
Airtight Performance |
Wind Load Resistance
(KPA)
|
|
6+12A+6 Low-E,2.3-2.6,
level 5
|
35DB
level 4
|
500PA
level 5
|
level 6 |
4.1KPA
level 7
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
