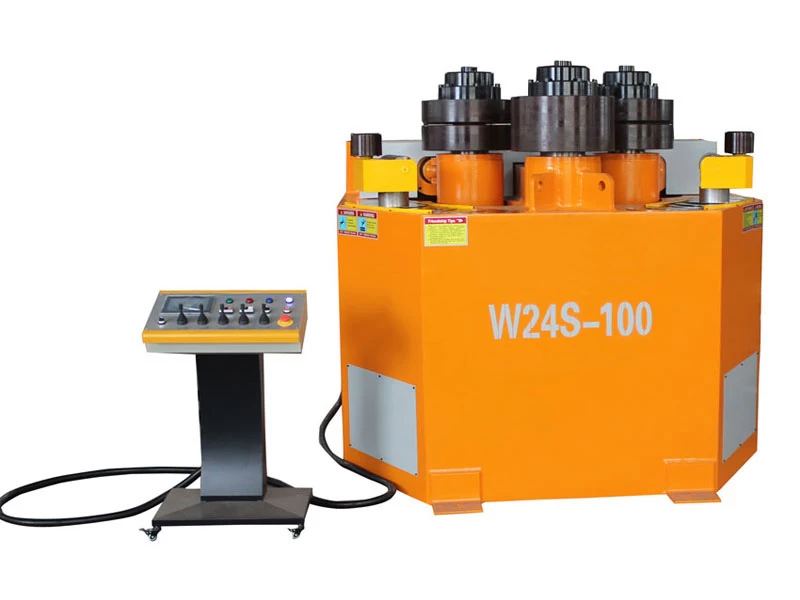

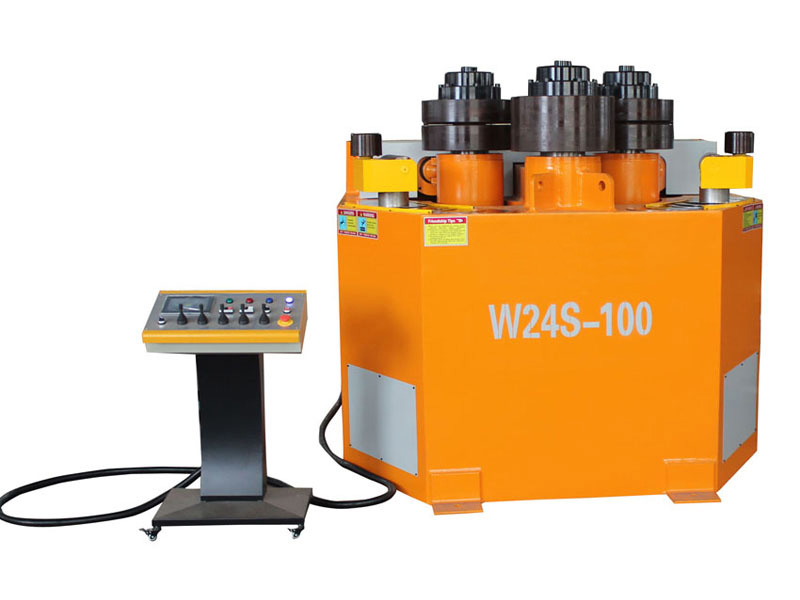

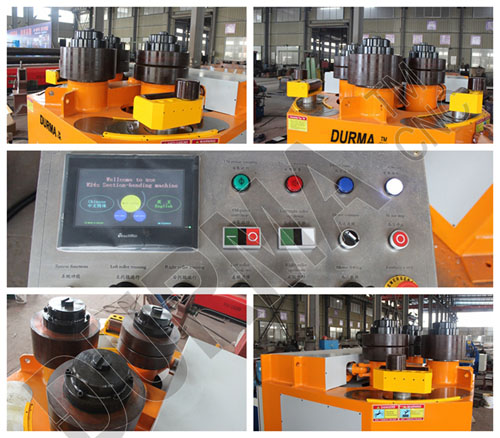

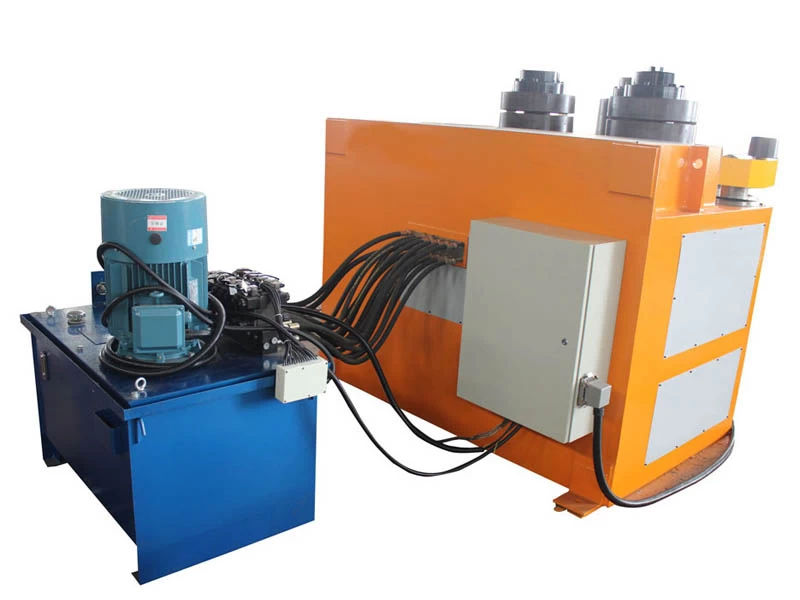

Product Item:Profile Bending Machine W24S Series
Main Features:
1.Hydraulic Profile Bending Machine Adopt streamline design originating European, tempering furnace treatment of steel machine frame to eliminate machine stress
2.Three shafts are driven by hydraulic motor and split shaft of planetary reducer
3.The shafts are made by special high-strength steel through hardening and polishing
4.Standard hardening die
5.With horizontal and vertical two kinds of working modes
6.The position of upper roller is fixed, but two lower rollers can make arc movement around the fixed center together or separately.
7.Supporting devices are set on the roller both sides to improve the bending quality of asymmetric section bar
8.W24S Profile Bending Machine Moveable CNC workbench
Technical Parameters:
Technical Parameter
|
W24S-6
|
Max. Bending Section Modulus
|
6
|
Rolling Speed(m/min)
|
6
|
Yield Strength (Mpa)
|
450
|
Max. Bending Size(mm)
|
Angle Inside Bending
|
40x5
|
Angle Outside Bending
|
50x5
|
U-steel Outside Bending
|
8
|
U-steel Inside Bending
|
8
|
Flat Horizontal Bending
|
100x18
|
Flat Vertical Bending
|
50x12
|
Round Pipe
|
42x4
|
Round Steel
|
38
|
Square Steel
|
45x3
|
Please contact us for other parameters.
Accessory List:
|
No
|
Accessory
|
Model / Manufacturer
|
Configuration
|
|
1
|
Controller
|
■ CNC Controller
|
Standard
|
|
2
|
Electrics
|
Schneider-France / Schneider-France
|
|
3
|
Main Motor
|
Siemens-Germany
|
|
4
|
Hydraulic System
|
Bosch Rexroth- Germany
|
|
5
|
Oil Pump
|
Oil Pump
|
|
6
|
Sealing Ring
|
PAEKER-USA/NKO-Japan
|
|
7
|
Oil Pipe
|
High-pressure Pipe
|
|
8
|
Standards
|
■CE □CSA ■NR-12 □OSHA
|
|
