Product Introduction
1. CNC polishing automatic compensation function.
2. Automatic hovering of material shortage, automatic recovery of incoming materials.
3. Automatic wheel repair correction.
4. Manual rapid lifting, convenient wheel change function.
5. Overload automatic shutdown, automatic fault detection.
6. Conveyor belt automatic slag cleaning function.
7. Processing small lines automatic break function.
8. High precision lifting system.

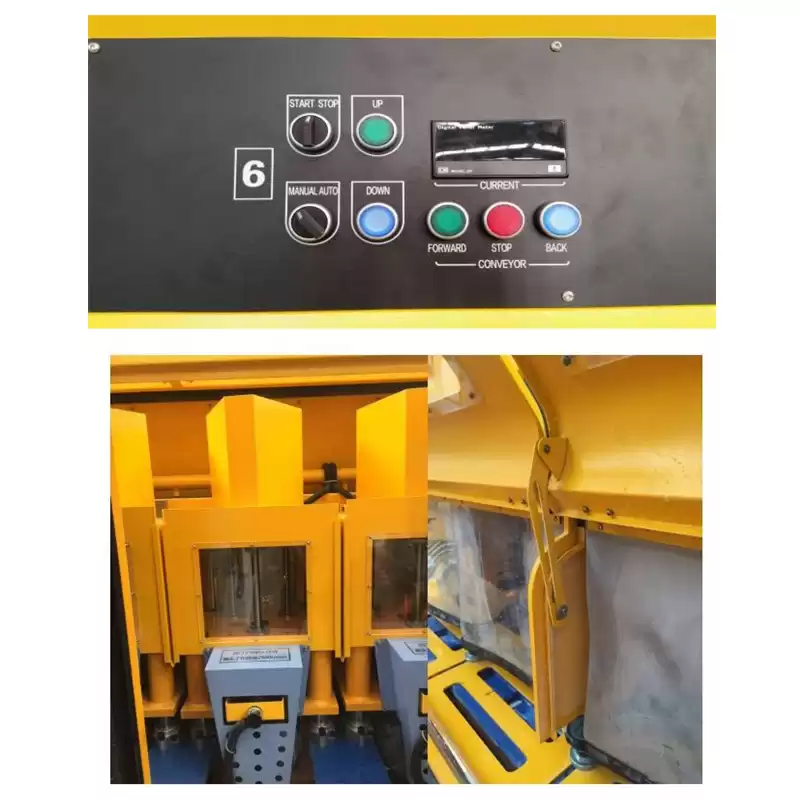

9. Multi-function touch display.
10. Intelligent operating system, easy to operate.
Technical Parameters
|

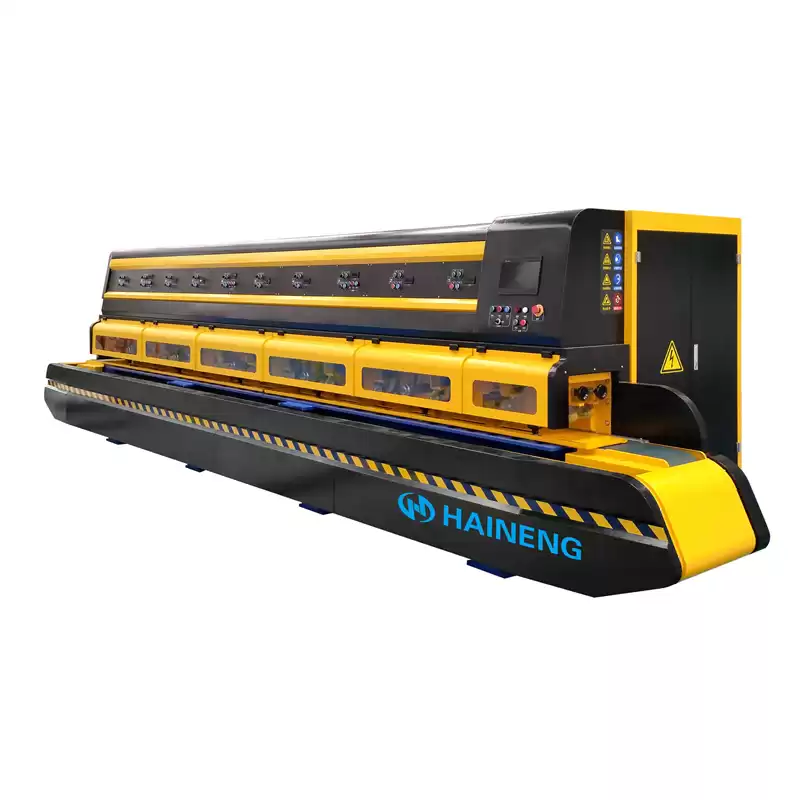

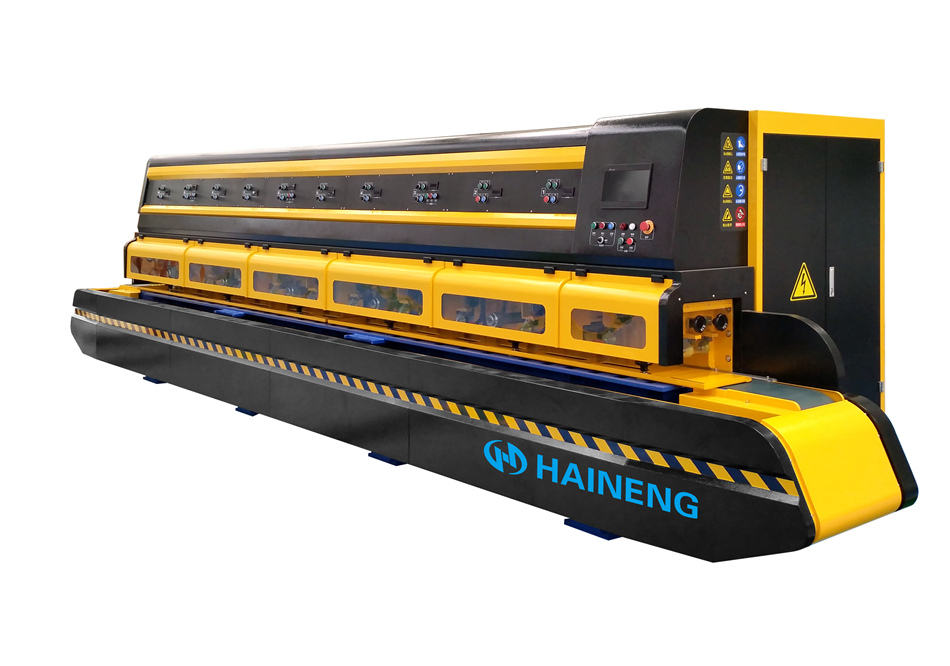

Profiling Line machine
|
|
Type
|
unit
|
V10
|
V12
|
|
Profiling wheel
|
pcs
|
2-4
|
|
CNC Polishing wheel
|
pcs
|
8
|
|
Profiling/Polishing wheel Dia.
|
mm
|
200/260
|
|
Spindle dia.
|
mm
|
60
|
|
Working width
|
mm
|
300-400
|
|
Processing thickness
|
mm
|
150
|
|
Spindle rotation speed
|
rpm
|
1200-2800
|
|
Cutting speed
|
m/min
|
0.5-1.5
|
|
Spindle power
|
kw
|
1#-10#=7.5kw,2#15kw
|
1#=7.5kw,2#=15kw,3#-5#=11kw,Other
7.5kw
|
|
Gross power
|
kw
|
About 87
|
Ablout 115
|
|
Consumption
|
T/h
|
7.5
|
7.6
|
|
Overall size（LxWxH）
|
mm
|
7600×1850×2000
|
8000×1850×2000
|
|
Gross weight
|
kg
|
8000
|
8300
|

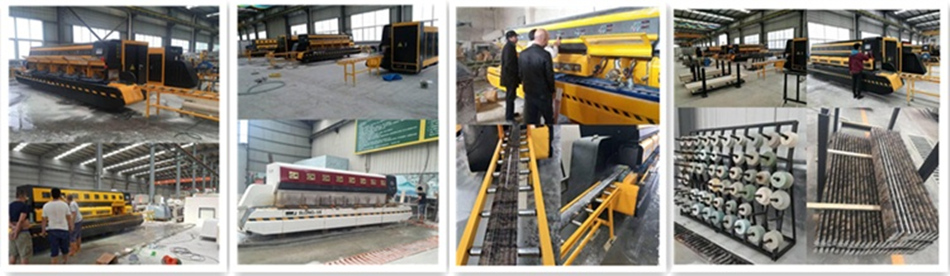

Processing
Loading photos
