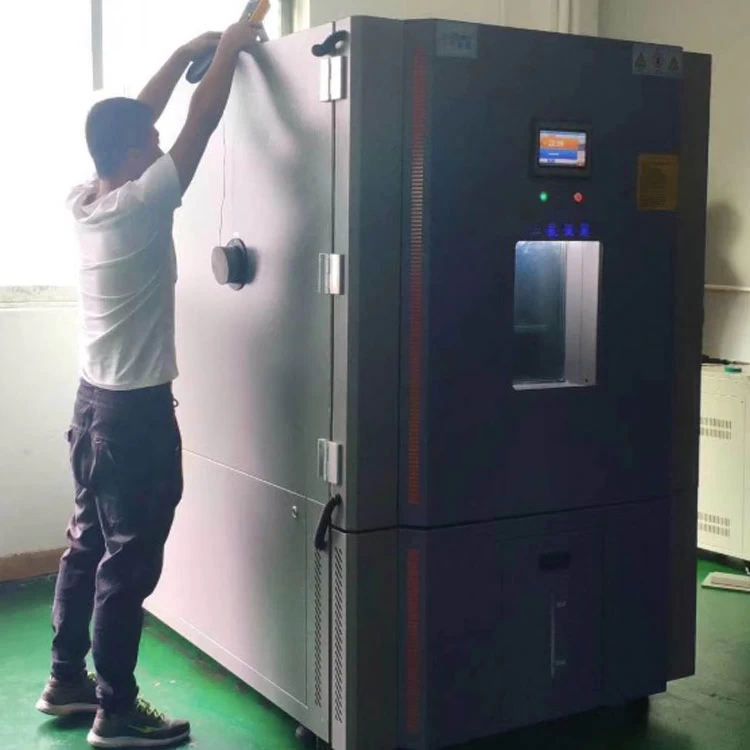

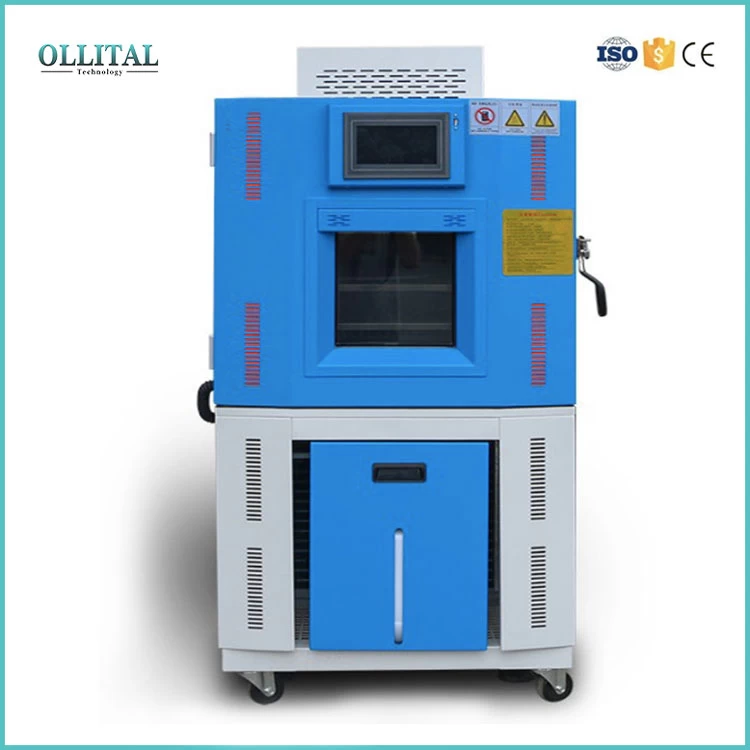

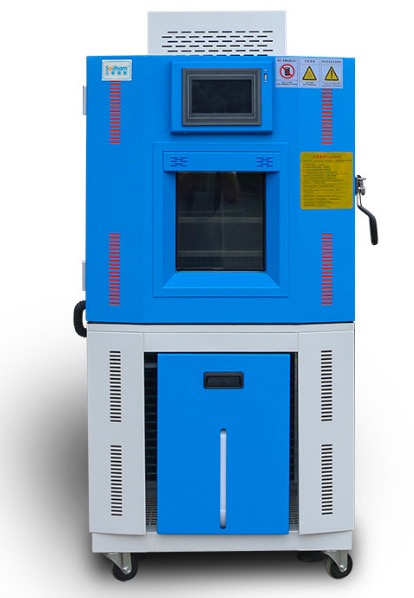

Programmable High and Low Temperature Test Chamber
Programmable Environmental Temperature and Humidity Test Machine/ Climate Chamber are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace.
|
Model
|
ZH-HS-80
(A~F)
|
ZH-HS-150
(A~F)
|
ZH-HS-225
(A~F)
|
ZH-HS-408
(A~F)
|
ZH-HS-800
(A~F)
|
ZH-HS-1000
(A~F)
|
|
Inner size: WHD(cm)
|
40*50*40
|
50*60*50
|
60*75*50
|
60*85*80
|
100*100*80
|
100*100*100
|
|
External size: WHD(cm)
|
105*165*98
|
105*175*108
|
115*190*108
|
135*200*115
|
155*215*135
|
155*215*155
|
|
Temperature range
|
(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)
|
|
Humidity range
|
20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
|
|
Temp analytic accuracy/uniformity
|
0.1ºC/±2.0ºC
|
|
Temperature Fluctuation
|
±0.5ºC
|
|
Humidity analytic accuracy/ Humidity control accuracy
|
±0.1%;±2.5%
|
|
Heat; cooling time
|
Heat up about 4.0°C/min ; Cooling about 1.0°C/min
|
|

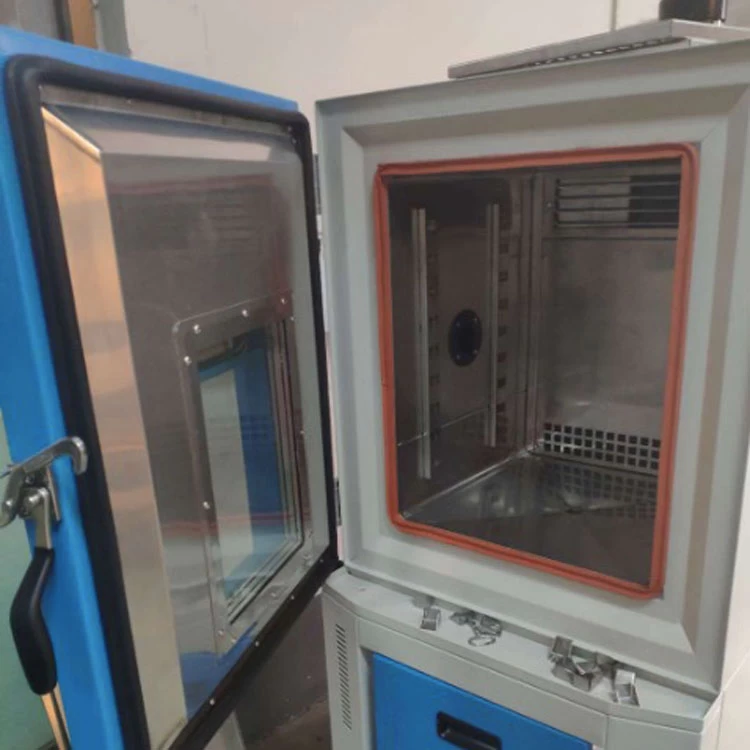

Inner and outer materials
|
SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
|
|
Insulation materials
|
Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
|
|
Cooling system
|
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)
|
|
Protection devices
|
Fuse switch, compressor overload switch, refrigerant high and low pressure protection
switch,
super humidity over-temperature protection switch, fuse, failure warning system
|
|
Parts
|

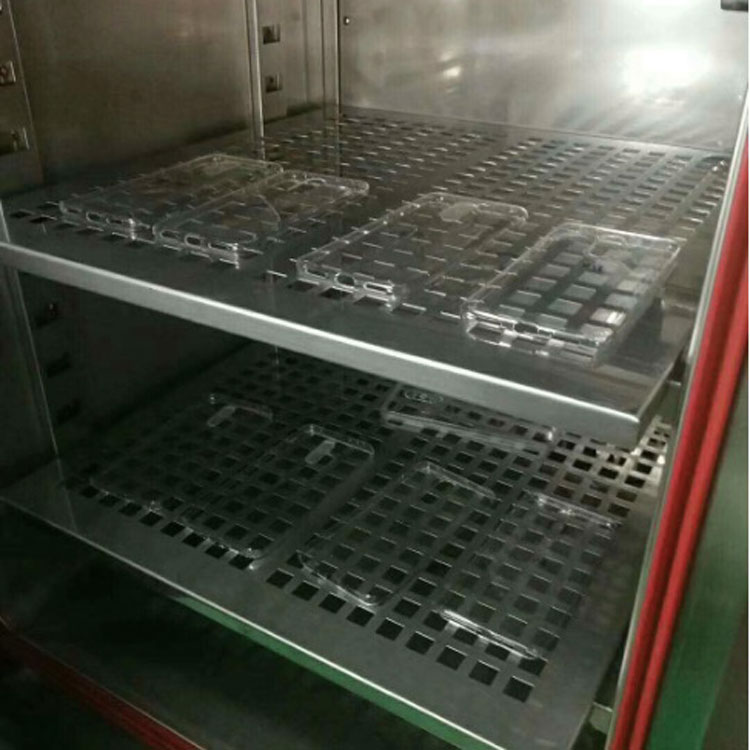

Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
|
|
Compressor
|
Original France"Tecumseh"brand
|
|
Controller
|
TEMI South Korea
|
|
Power
|
AC220V 50/60Hz & 1, AC380V 50/60Hz 3
|
|
weight (kg)
|
150
|
220
|
270
|
320
|
450
|
580
|

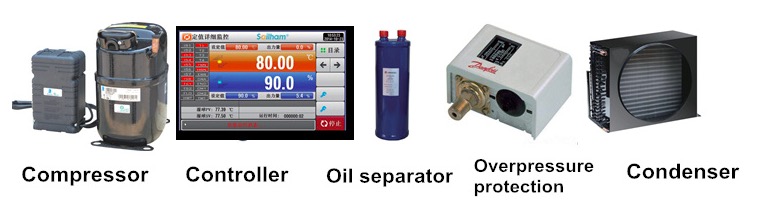

Core accessories
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A

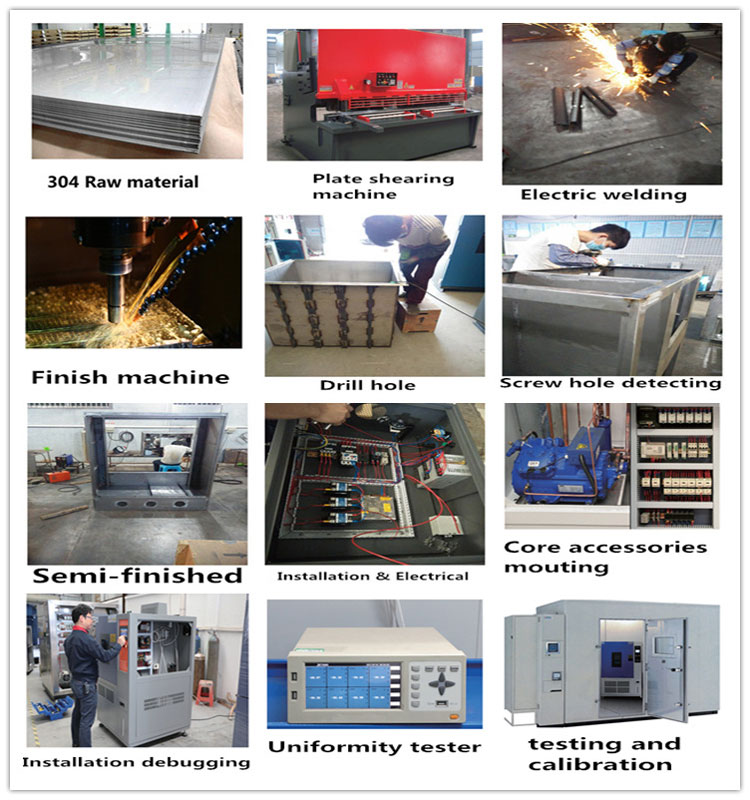

Manufacture process
