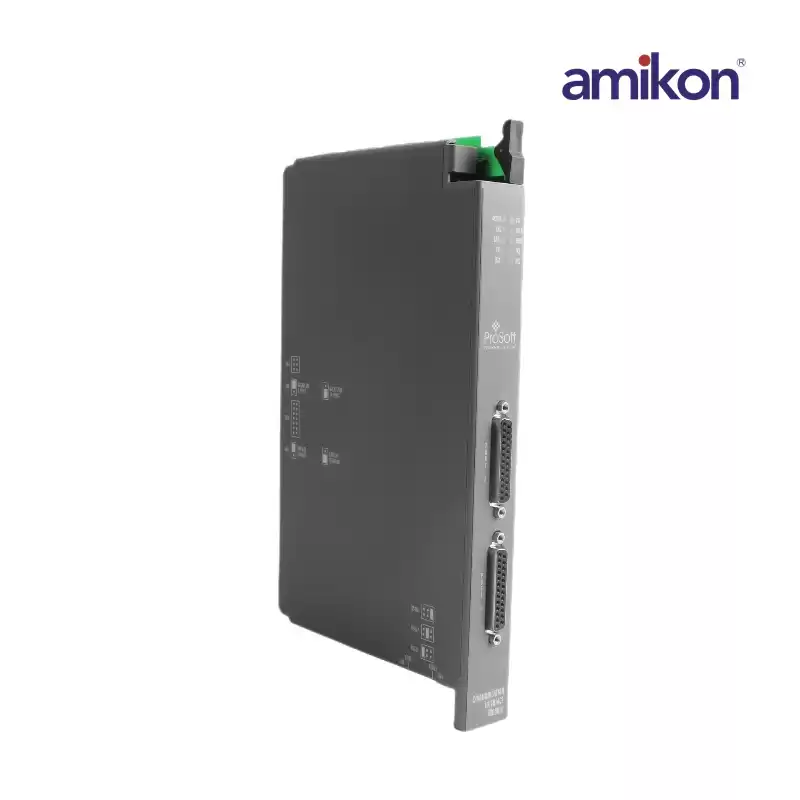

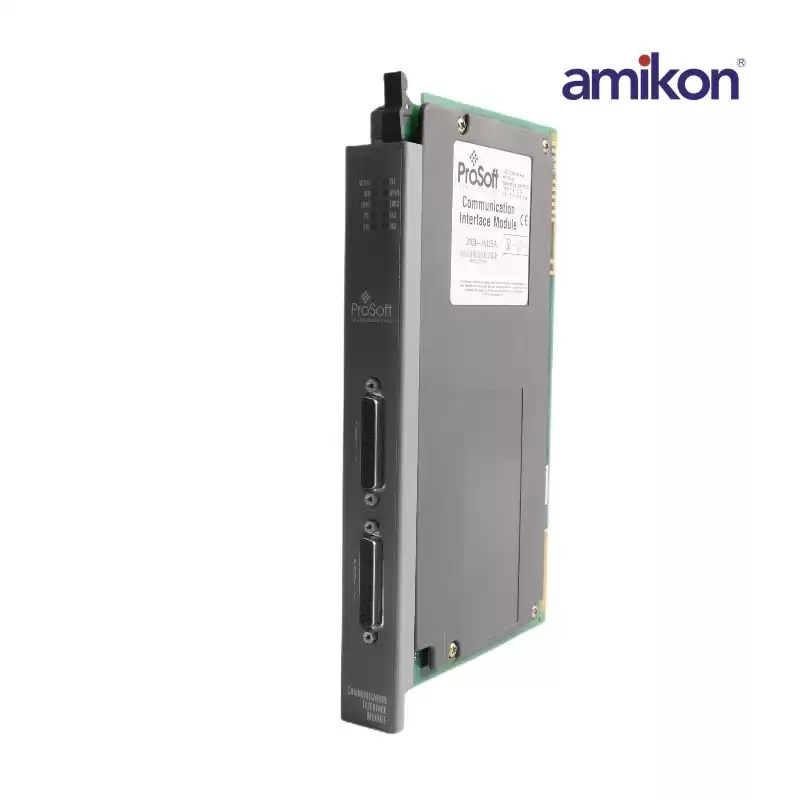

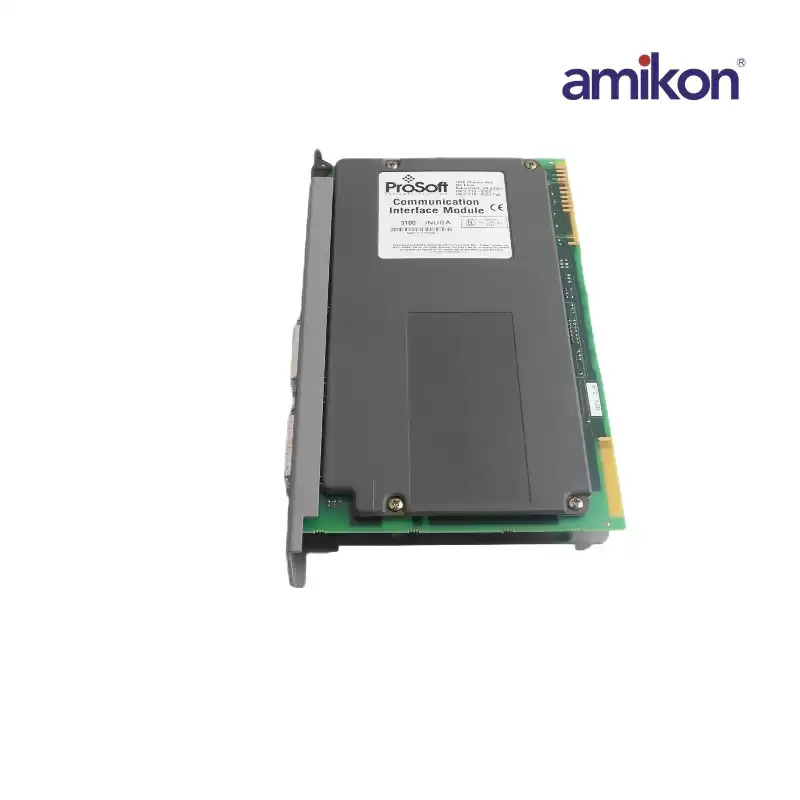

PROSOFT 3100-INUSA Communication Module
|
|
Dimensions ：3x15x27.2cm
|
Weight：0.52kg
|
Optical Isolation ：500V |
Backplane Current Load :0.65 A
|
|
The SEA product family is very easy to implement. In both the PLC and the SLC platforms, the addition of several simple ladder rungs and the configuration of several configuration registers enables the module to operate as a very effective SEABUS Plus Master protocol interface. To ease initial contact with the product we have included a demonstration ladder program in Appendix A. An electronic copy of the ladder logic is available on disk with each product purchase
In order to get the SEA operating with the example ladder logic only one modification should be necessary. The ladder logic BTR and BTW instructions may need to be modified to ensure that the Block Transfer instructions are set up for the correct rack and group (slot) address.
|
