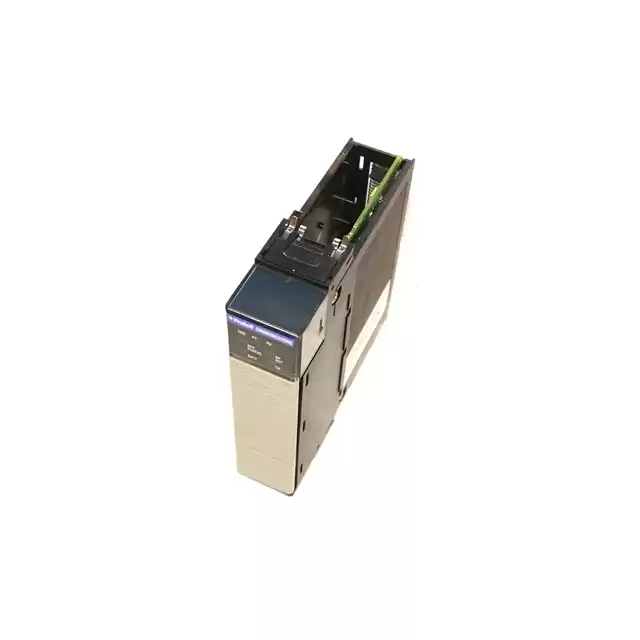

PROSOFT MVI56-HART ControlLogix Platform HART Multi-drop Master Communication Module

The MVI56-HART module requires the following minimum hardware and

software components:

 Rockwell Automation ControlLogix™ processor, with compatible power

supply and one free slot in the rack, for the MVI56-HART module. The

module requires 800 mA of available power.

 Rockwell Automation RSLogix 5000 programming software version 2.51 or

higher

 Rockwell Automation RSLinx communication software

 Pentium®

II 450 MHz minimum. Pentium III 733 MHz (or better)

recommended

 Supported operating systems:

 Microsoft Windows 10

 Microsoft Windows 7 Professional (32-or 64-bit)

 Microsoft Windows XP Professional with Service Pack 1 or 2

 Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3

 Microsoft Windows Server 2003

 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

 100 Mbytes of free hard disk space (or more based on application

requirements)

 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color

1024  768 recommended)

 ProSoft Configuration Builder, HyperTerminal or other terminal emulator

program.

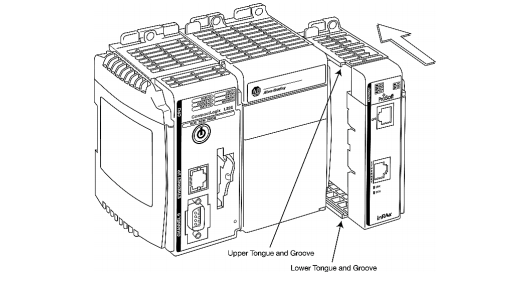

Align the module using the upper and lower tongue-and-groove slots with the

adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus

connectors on the MVI69 module and the adjacent module line up with each

other.
