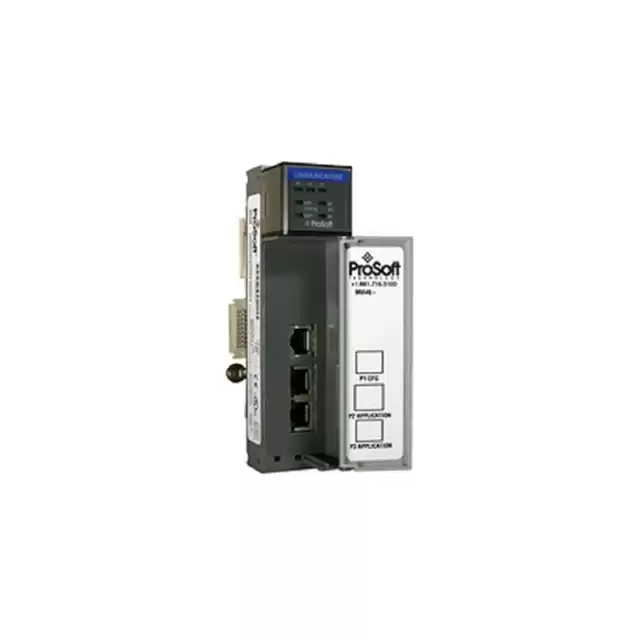

PROSOFT MVI69-ADMNET Modbus TCP/IP Communication Module

MVI69-ADMNET is a C-programmable application development module with Ethernet; it is manufactured by Prosoft technologies and features as an ADM series module.

MVI69-ADMNET solution comes as a powerful module that is originally designed for both the client and server support. The broad support enables for the module to function as a data collection submaster or as a powerful slave as a remote off an HMI host.

MVI69-ADMNET comes with an API suite that allows the software developers access to the serial ports without the need for detailed knowledge on the modules hardware design. The MVI69-ADMNET comes with serial port API and also the ADM API.

MVI69-ADMNET is to allow the software developers to have access to the top layer of the CompactLogix processor and the serial ports.

MVI69-ADMNET suite also has access to the Ethernet port. The APIs can be easily used without any detailed knowledge of the modules hardware design. the module also features two serial ports one that is isolated for the field interfaces and another one for the Ethernet port.

MVI69-ADMNET comes with a current load capacity of 800 mA and a maximum voltage of 5 Volts DC. The operating temperature for the module is 0 to 60 degrees Celsius. The storage temperature is -40 to 85 degrees Celsius and has a relative humidity of 5% to 95% none condensation. It comes with an RJ45 CFG port and an APP port which is an Ethernet module.

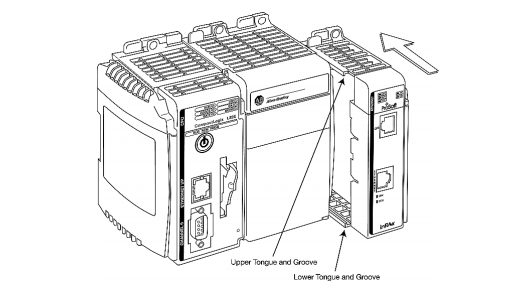

Align the module using the upper and lower tongue-and-groove slots with the adjacent module and slide forward in the direction of the arrow.
