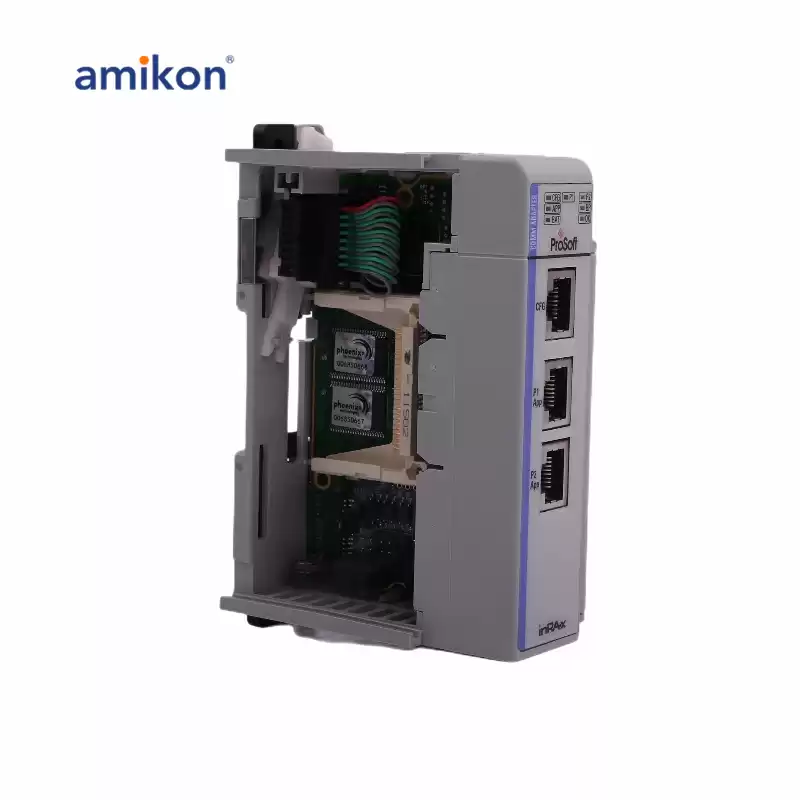

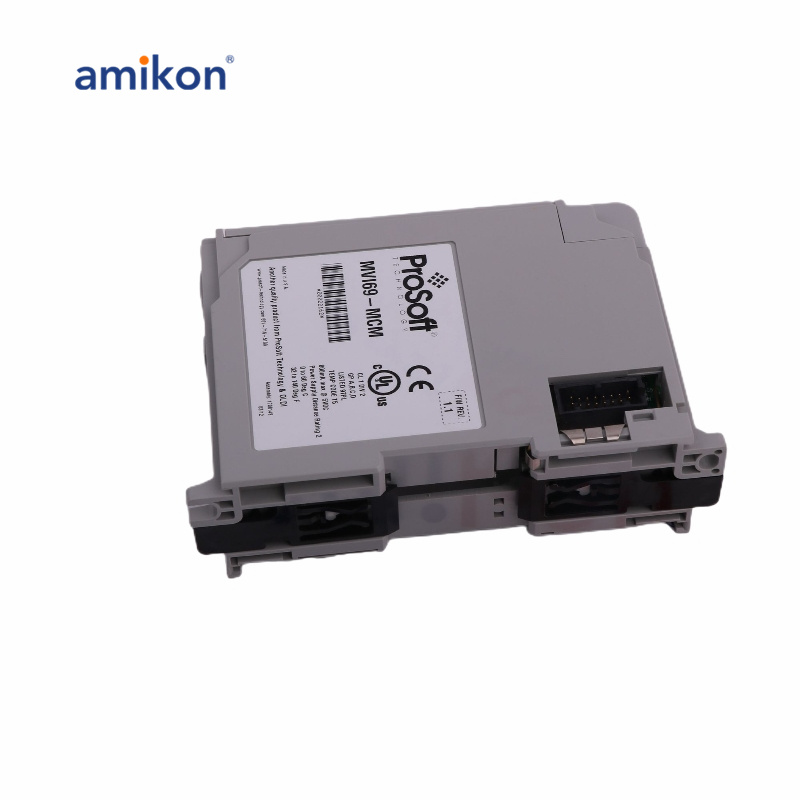

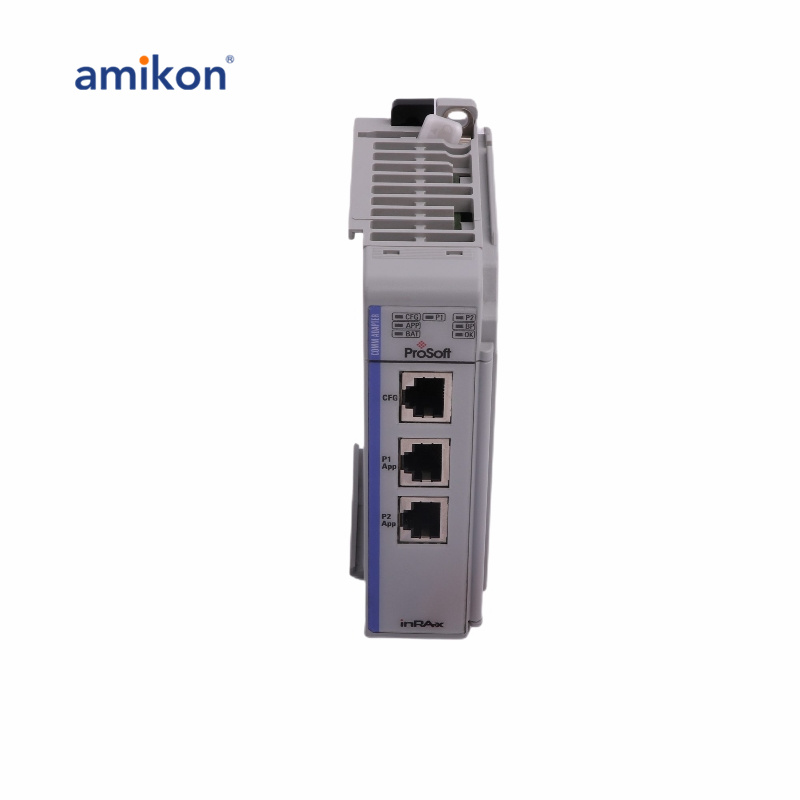

PROSOFT MVI69-MCM Communication Module

Brand new and original sealed//Same Day Shipment

Specification Description Dimensions Standard 1769 Single-slot module Current Load 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
Operating Temp. 32° F to 140° F (0° C to 60° C) Storage Temp. -40° F to 185° F (-40° C to 85° C) Relative Humidity 5% to 95% (without condensation)
MVI69-MCM Data sheet	LED Indicators Battery and Module Status Application Status Serial Port Activity CFG Port Activity CFG Port (CFG) RJ45 (DB-9F with supplied cable)
	RS-232 only No hardware handshaking App Ports (P1,P2) (Serial modules) RS-232, RS-485 or RS-422 (jumper selectable) RJ45 (DB-9F with supplied cable)
	RS-232 handshaking configurable 500 V Optical isolation from backplane Shipped with Unit RJ45 to DB-9M cables for each port 6-foot RS-232 configuration Cable
Award-winning service	More than 25 in stock	Full 12-month warranty	We deliver worldwide
