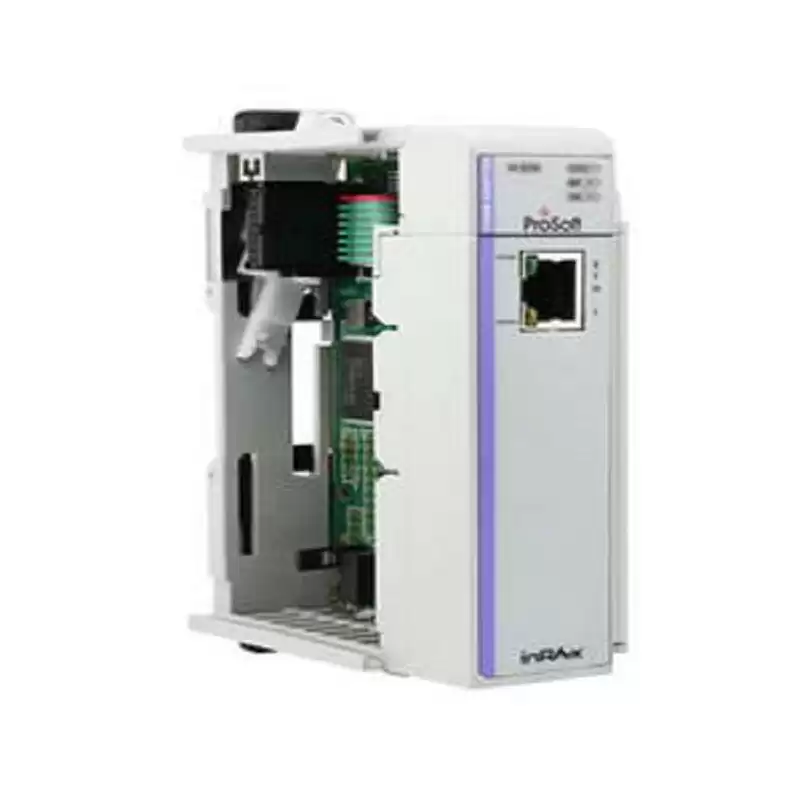

PROSOFT MVI69E-MBTCP CompactLogix™ Platform Modbus TCP/IP Enhanced Communication Module

CompactLogix™ Platform Modbus TCP/IP Enhanced Communication Module



Before you begin to configure the module, consider the following questions. Your answers will help you determine the scope of your project, and the configuration requirements for a successful deployment.

 Are you creating a new application or integrating the module into an existing application? Most applications can use the Sample Add-On Instruction or Sample Ladder Logic without any modification.

 Which slot number in the chassis does the MVI69E-MBTCP module occupy? For communication to occur, you must enter the correct slot number in the sample program.

 Are the Studio 5000 and RSLinx software installed? RSLogix and RSLinx are required to communicate to the CompactLogix processor.

 How many words of data do you need to transfer in your application (from CompactLogix to Module / to CompactLogix from Module)?

 Is this module replacing an existing legacy MVI69-MNET module (refer to section Legacy Mode on page 83)?

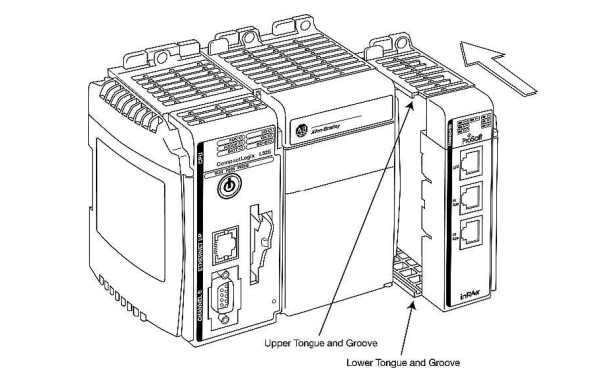

Align the module using the upper and lower tongue-and-groove slots with the adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus connectors on the MVI69 module and the adjacent module line up with each other.
