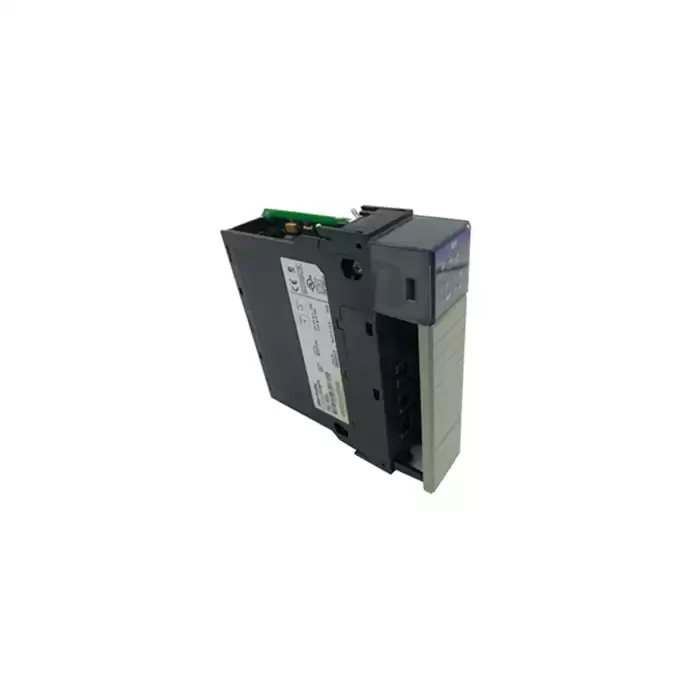

PROSOFT MVI94-MCM Serial Communications Modbus Communication Module

The MV194-MCM is a Prosoft Technology Modbus communication module. This module is compatible for use with the 1794 Flex I/O product family and occupies a single slot of the 1794 backplane - it may be installed to any available slot of the chassis.

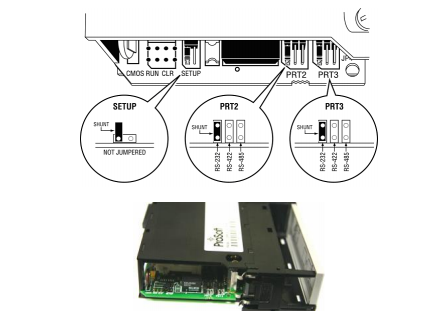

The MV194-MCM comes with one (1) serial configuration port labeled as PRT1 in the form of mini-DIN RS-232 and supports hardware handshaking; It also has one (1) application serial port labelled as PRT2 which is a mini-DIN port that supports RS-232 / RS-422 / RS-485 electrical standard with jumper selectable and has a 500 Volt optical isolation from the FlexBus backplane.

The MV194-MCM supports MODBUS function codes 1, 2, 3, 4, 5, 6, 15, and 16 and communicates to a Modbus Master attached to the same Modbus network. It is capable of storage and transfer of up to 5000 registers, to and from the Flex I/O processor’s data files. Additionally, the module has a user-configurable module memory and supports the Enron Modbus version used for floating point data transactions.

One of the main features of this module is that the Application port of this module can emulate Modbus master or Modbus slave device. It supports not only MODICON PLCs as it also supports almost all devices that are Modbus enabled. With this capability of features, it can be used in a wide range of Modbus products including Supervisory Control and Data Acquisition (SCADA) software packages that support Modbus communication protocol.
