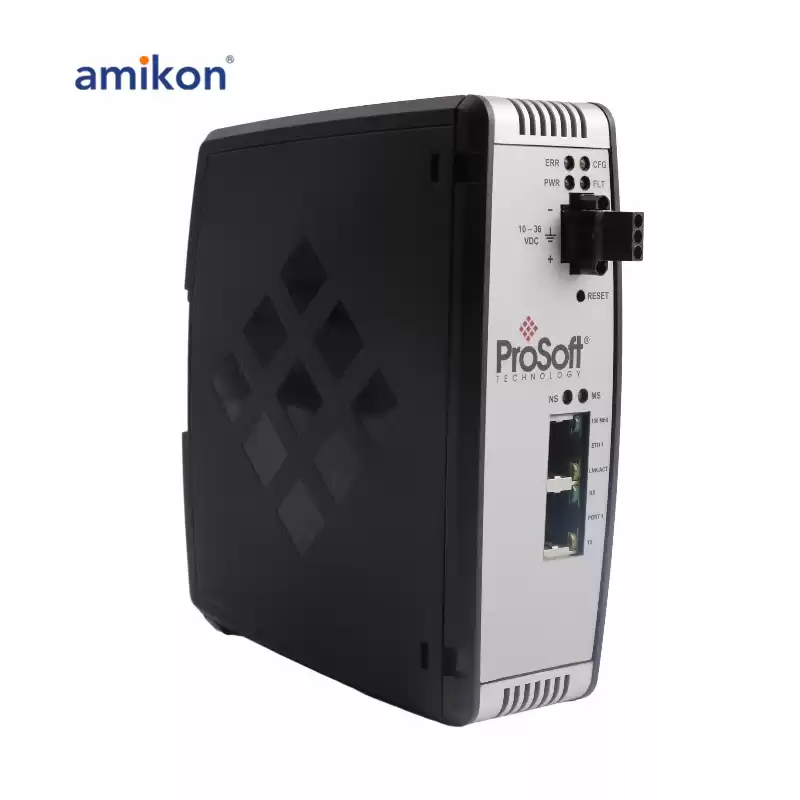

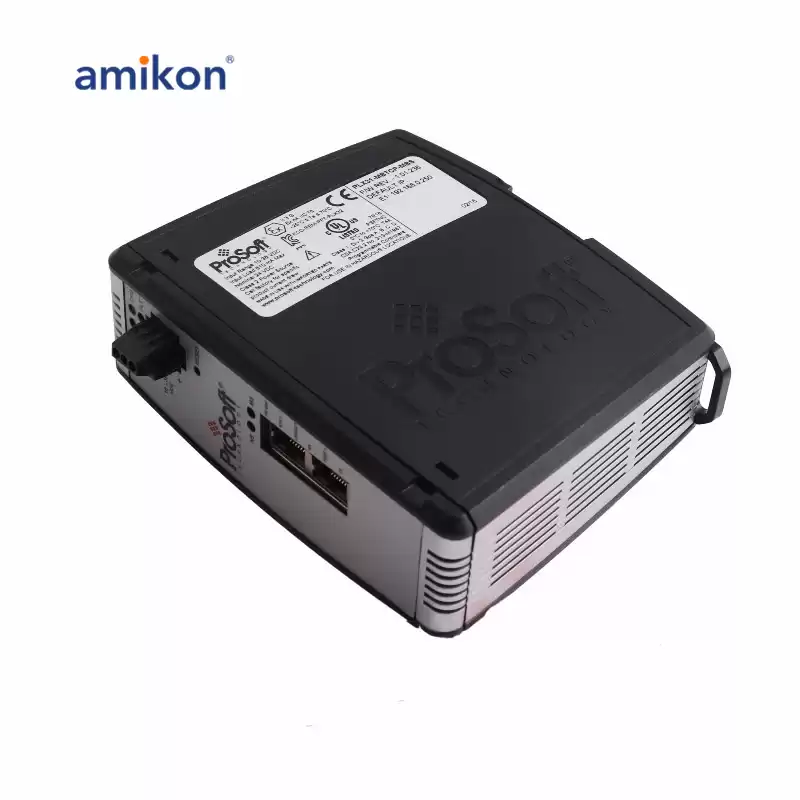

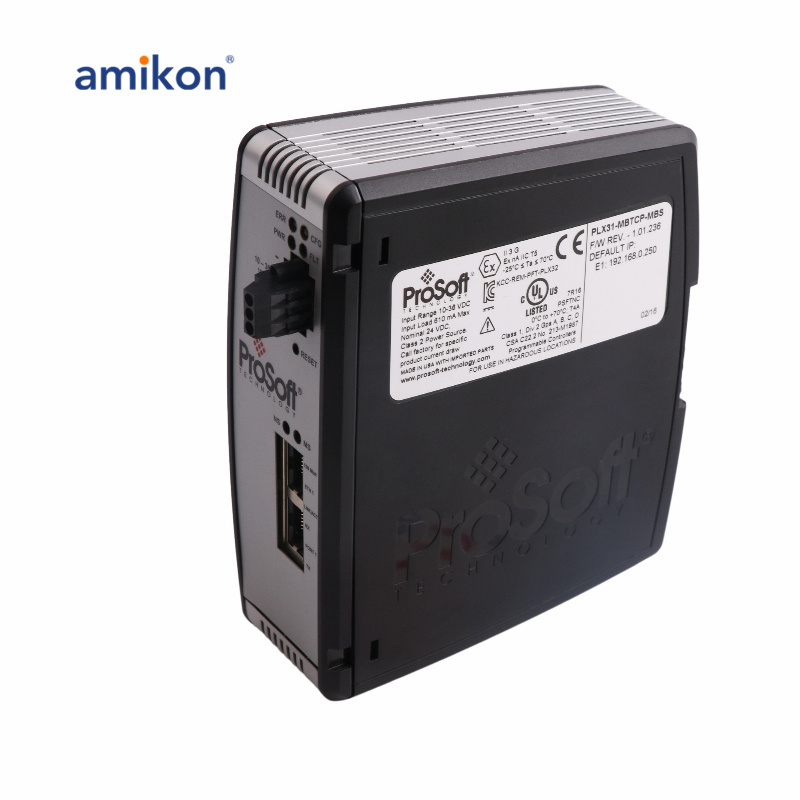

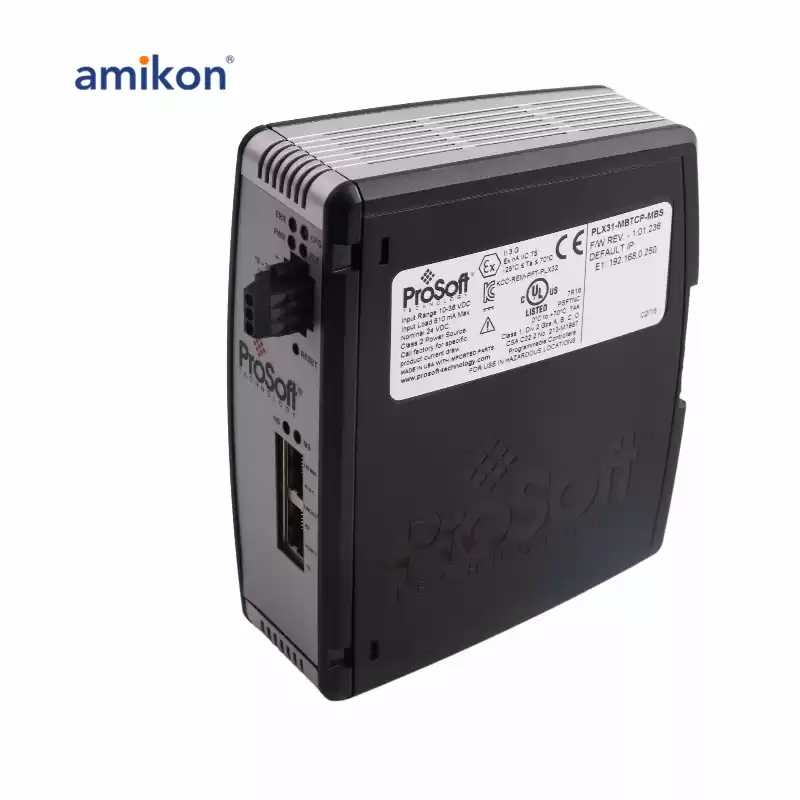

PROSOFT PLX31-MBTCP-MBS Electric Supply

ProSoft Technology’s Modbus® TCP/IP to Modbus® Serial communication gateway allows high-speed bi-directional data transfers between Modbus® TCP/IP-enabled PACs and Modbus® Serial devices.

Modbus® Serial devices are widely used in nearly every industry and include SCADA systems and Power Monitors.

PLX31-MBTCP-MBS Data sheet

Parity : None, Even, Odd Data Size : 7 or 8 bits RTS on/off delay : 0 to 65535 milliseconds
Node Address : 1 to 247 (software selectable) RS Interface : RS232, RS422, and RS485

Command List : Up to 160 fully configurable Client commands
Command List : Up to 100 commands per Master port

Product Type : ModBus TCP/IP  Power Supply : 24 VDC nominal
Supported Clients : 10 Baud rate : 110 baud to 115.2 kbps
