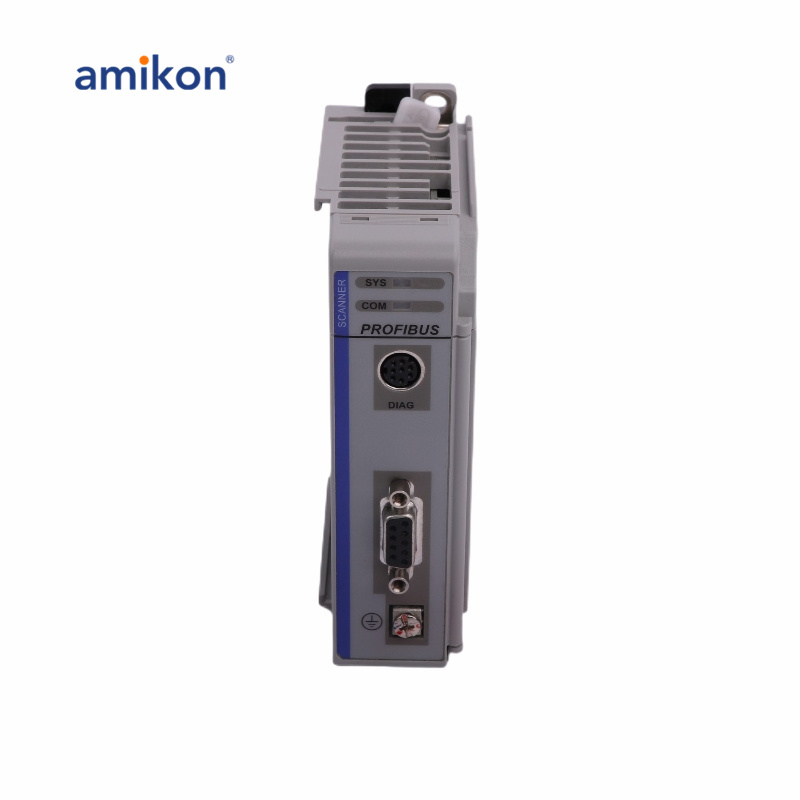

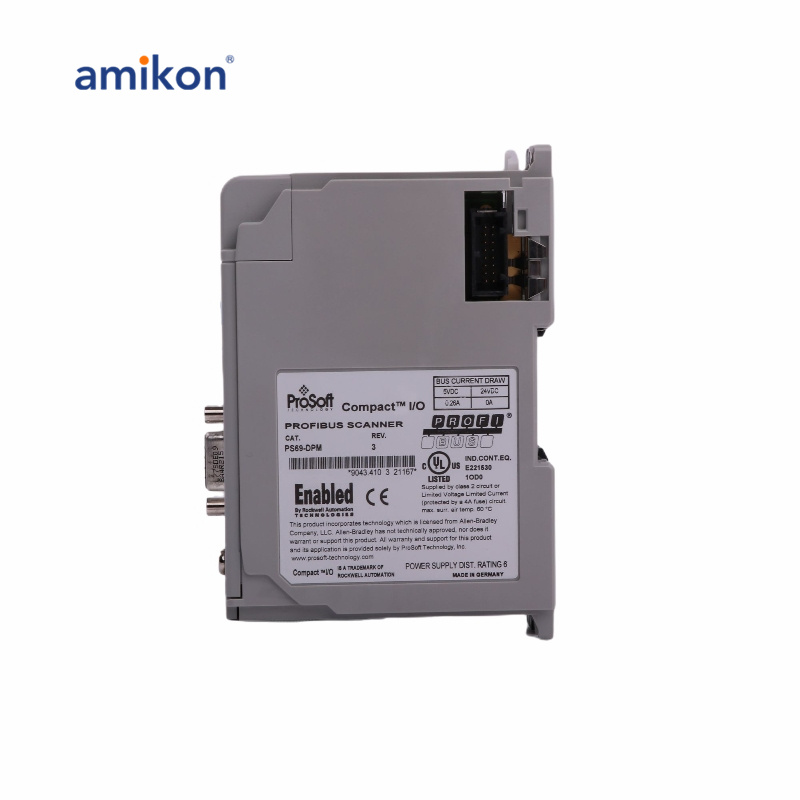

PROSOFT PS69-DPM PROFIBUS DPV1 Master

Brand new and original sealed//Same Day Shipment

The module has an input of 244 Bytes per slave maximum, and the same output (244 Bytes per slave). The burst rating of the PS69-DPM is 2 Kilovolts at 5 Kilohertz. When operating in common mode, the PS69-DPM module has a surge voltage of 2 Kilovolts, which drops to 1 Kilovolt during differential mode operation.
The module comes with a single slot which is compatible with the 1769 backplane. In addition to this, the users can choose to install multiple modules, in which case the block transfer sizes of both modules should be identical.
PS69-DPM Data sheet	The PS69-DPM module requires a power supply of 260 milliamperes at 5 Volts, though it can tolerate deviations of +/- 5%. The speed of the communication is 12 megabytes per second, and the communication protocol which is used is the aforementioned PROFIBUS DP-V1.

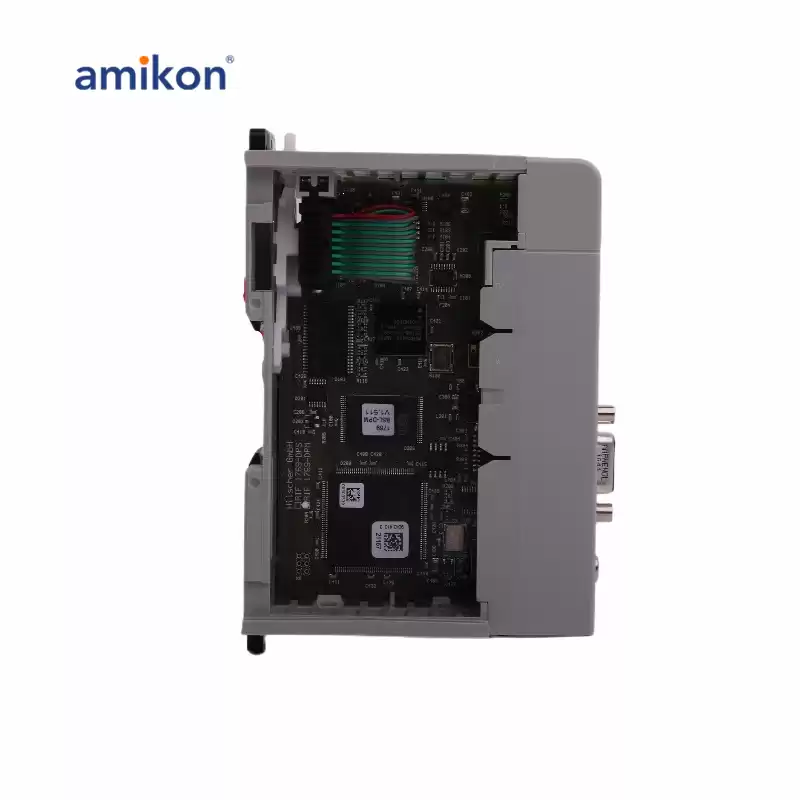

	PS69-DPM has an EC1-160P with an integrated ASPC2 processor, and the tool which should be used for configuration and diagnostic of this module is PROSOFT.fdt (SYCON.net).
	The data between the PS69-DPM and the controller is exchanged using the I/O process data image. There are some guidelines to be during the installation of this module. First and foremost, power must be removed prior to removal or the installation of the PS69-DPM.
