Manufacturer : Bently Nevada
Product No. : 330180-90-CN

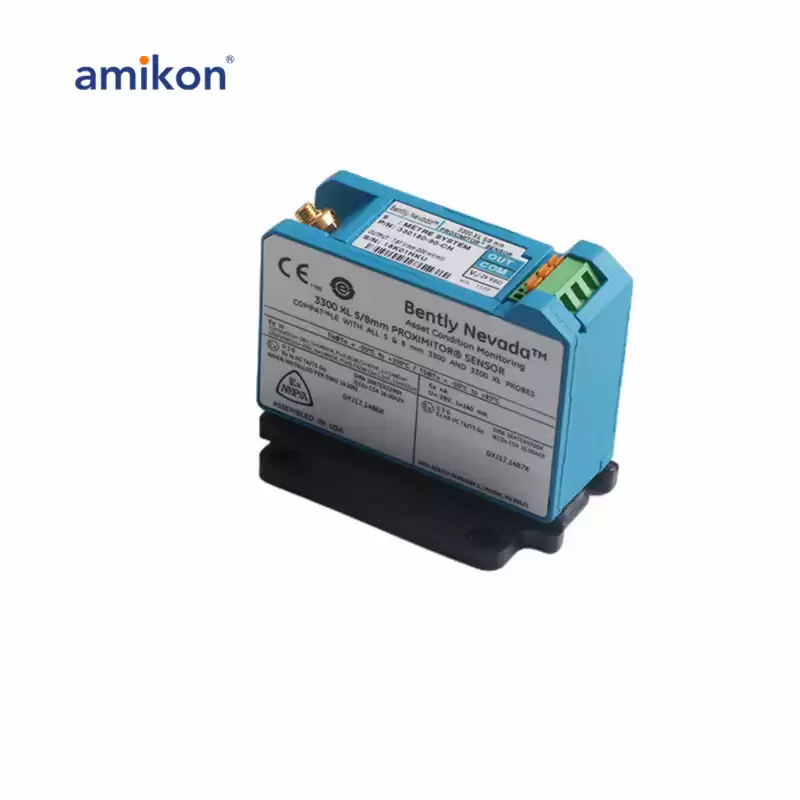

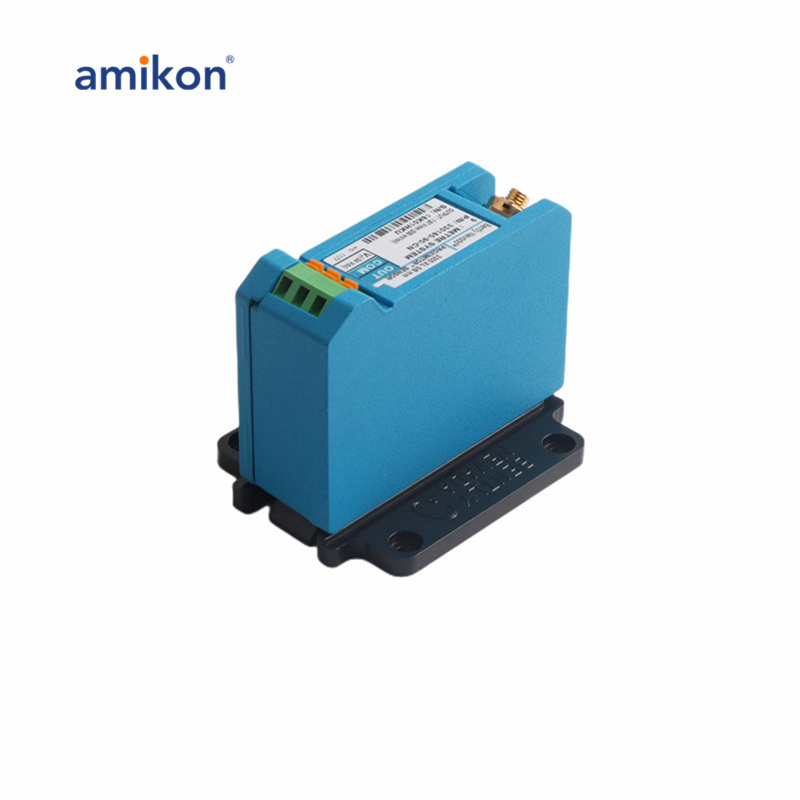

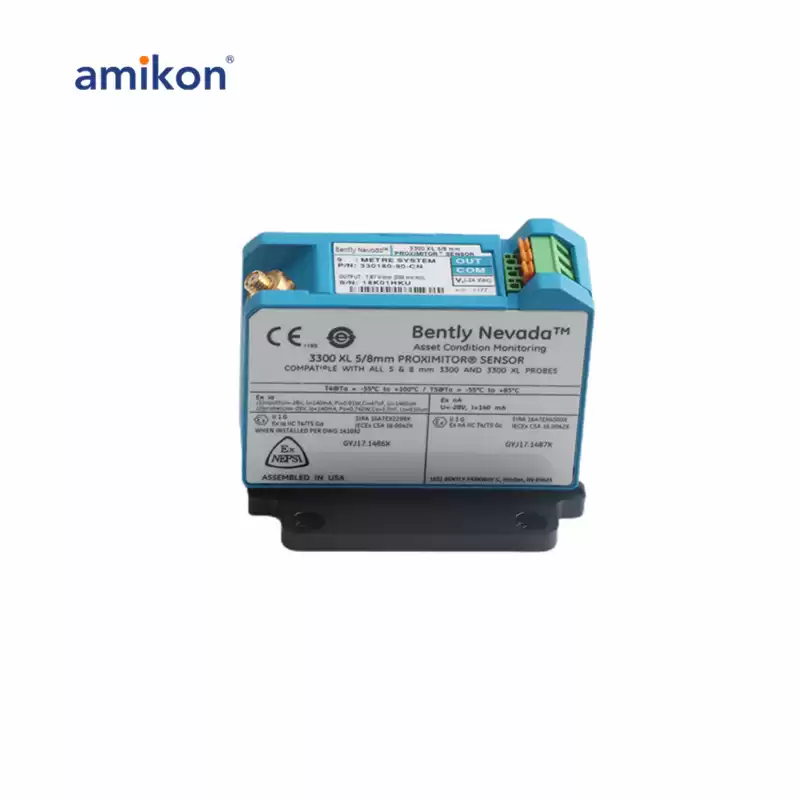

Product type : 3300 XL Proximitor Sensor
This product is a replacement for 330100-90-05 |3300 Proximitor Sensor
90 - Total Length and Mounting Option : 9.0 metres (29.5 feet) system length, panel mount
CN - Agency approval option : Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Proximitor® Sensor Input : Accepts one noncontacting 3300- series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Proximitor® Sensor Material : A308 aluminum
Operating Temperature : -51 °C to +100 °C (-60 °F to +212 °F)
Storage Temperature : -51 °C to +105 °C (-60 °F to +221 °F)
Weight : 0.246 Kg
The 3300 XL NSv Proximitor Sensor shares many features with the 3300 XL 8 mm Proximitor Sensor, but with a more compact and versatile design. This sensor’s slim profile makes it ideal for installation in both high-density DIN-rail setups and traditional panel-mount configurations, providing flexibility for various mounting environments. One of the standout features of the 3300 XL NSv Proximitor Sensor is its improved RFI/EMI immunity, which significantly reduces the risk of nearby high-frequency radio signals interfering with the transducer system. This enhanced immunity also enables the sensor to meet European CE mark approvals without requiring special mounting considerations.
The sensor is designed for use with shielded triad cables of 0.2 to 1.5 mm² (16 to 24 AWG), with the recommendation of using 0.25 to 0.75 mm² (18 to 23 AWG) cables with ferrules. It supports a maximum cable length of 305 meters (1,000 feet) between the sensor and the monitor, allowing for flexible installation options in larger systems.
When paired with the 3300 XL NSv Proximitor Sensor and monitor, the frequency response shows minimal signal rolloff at higher frequencies, even with extended field wiring lengths. The system maintains a gap sensitivity of 7.87 V/mm (200 mV/mil), with a tolerance of +12.5%/-20%, ensuring accurate readings within the linear range of 1.5 mm (60 mil), even when measuring in increments of 0.25 mm (10 mils). This makes the 3300 XL NSv Proximitor Sensor a reliable and effective solution for vibration monitoring across a wide range of industrial applications.
