Overview
Brand Name: Huawei

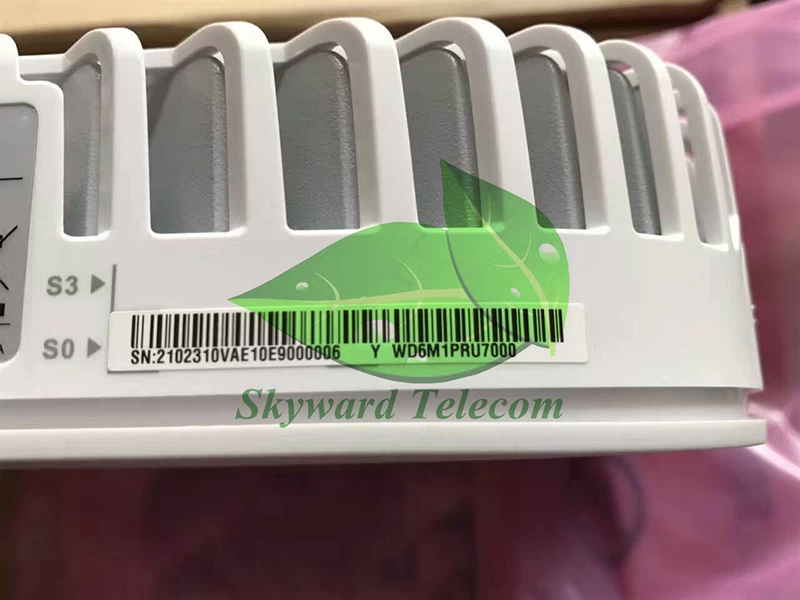

Product Number: WD6M1PRU7000

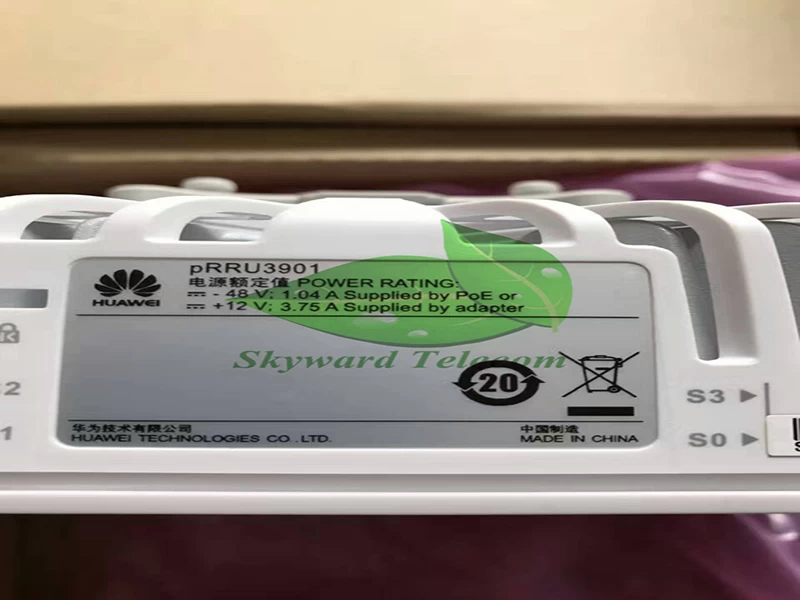

Model Number: pRRU3901
Discription:
The pRRU, a remote radio unit, processes RF signals as follows:
The transmit channel receives the baseband signals from the BBU and performs
digital-to-analog conversion. The baseband signals are up-converted to the transmit
frequency band using the zero IF technology. The pRRU then filters and amplifies the
signals, which are sent to the antenna for transmission.
The receive channel receives the RF signals from the antenna. Then, the RF signals are
down-converted to baseband signals and sent to the BBU for processing after being
filtered and amplified.
pRRU3901 supports the following:
-
Built-in or external antennas
-
PoE and AC/DC adapter
-
Flexible multi-mode configurations, with built-in RF cards for multiple radio access technologies
(RATs)
-
Wi-Fi daughter cards supporting data transmission services
Equipment specifications
|
Item
|
Specification
|
|
Dimensions (H x W x D)
|
230 mm x 230 mm x 50
mm
|
|
Weight
|
≤ 3 kg
|
Environment Specifications
|
Item
|
Specification
|
|
Operating temperature
|
l Installed on a wall: –5ºC to +45ºC
l Installed on a ceiling: –5ºC to +40ºC
|
|
Storage temperature
|
–40ºC to +70ºC
|
|
Relative humidity
|
5% RH to 95% RH
|
|
Absolute humidity
|
1 g/m3 to 30 g/m3
|
|
Operating pressure
|
70 kPa to 106 kPa
|
|
Protection rate
|
IP20
|
|
Operating environment
|
EUROPEAN ETS 300
019-1-3 Temperature-controlled locations Class 3.2
|
|
Storage environment
|
ETSI EN300019-1-1
V2.1.4 (2003-04) class1.2 "Weather protected, not temperature-controlled
storage locations"
|
|
Transport environment
|
ETSI EN300019-1-2
V2.1.4 (2003-04) class 2.3 "Public transportation
|
|
Anti-seismic
performance
|
IEC 60068-2-57
(1999-11) Environmental testing – Part 2-57: Tests – Test Ff: Vibration –
Time-history method YD5083-99: Interim Provisions for Test of Anti-seismic
Performance of Telecommunications Equipment (telecom industry standard in the
People's Republic of China) GR63 5.4.1 zone4: NEBSTM Requirements: Physical
Protection
|
|
Protection from damp,
mold, and salt-spray fog
|
Class B
|
