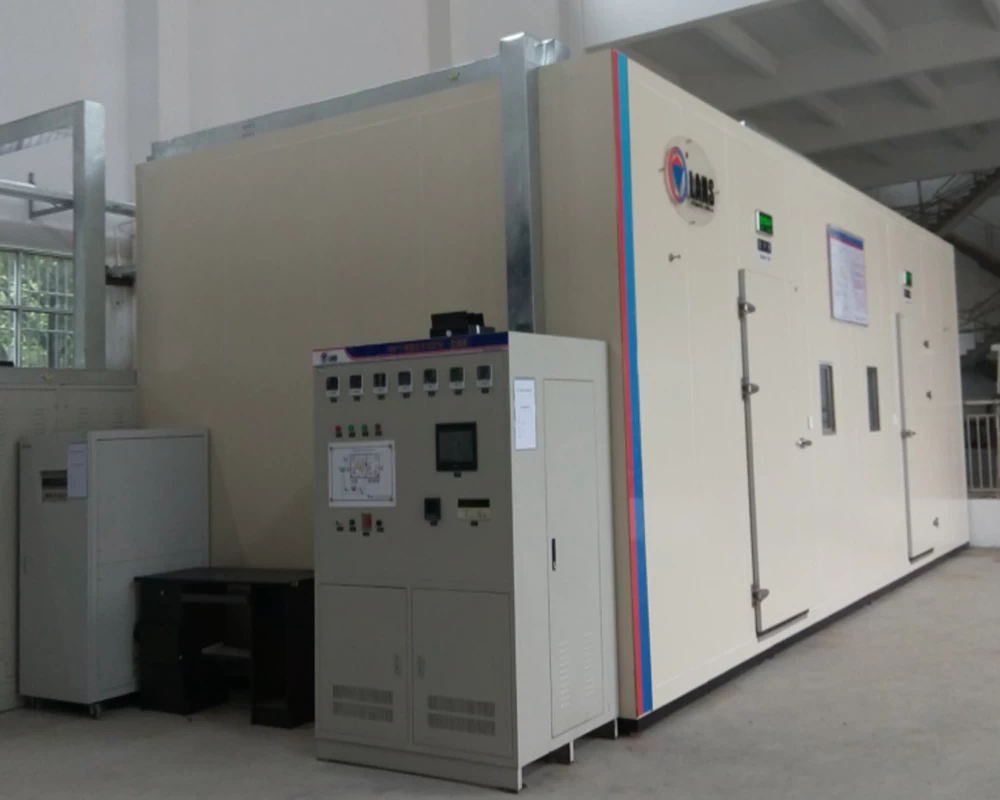

Psychrometric Air Conditioner Performance Test Laboratory

The Psychrometric Air Conditioner Performance Test laboratory is used for  testing room type air-conditioners. It provides air-conditioner testing with indoor and outdoor atmosphere environment as well as the indoor air flow measurement apparatus. Besides, the lab is equipped with computer-automatic control measurement and data processing system,and it applies the Indoor air- enthalpy method for measuring the  cooling and heating capacity




Facebook Twitter Pinterest LinkedIn 分享

1.Lab configuration

        Indoor Outdoor
Temperature (°C) 10~50 -20~60
Relative Humidity (%RH) 35~90
AFM Air flow(CFM) 200~2000 -
Type movable -
ESP(Pa) -50 to 500 -
Number 1
Thermocouples(-50~150°C) (CH) 20 20
Refrigerant Pressure (CH) - 2
Power meter (WT333E) (CH) 1
Power Source Frequency Converter Three Phase, 45kVA
Refrigerant R22/R410a/R32/R290/R134a
Remark:the specification can be designed as per buyer's requirement

2.Standard and Regulation
General standards:

3.Test Items

  • Cooling capacity ratings
  • Heating capacity ratings
  • Maximum cooling test
  • Maximum cooling test
  • Minimum cooling test
  • Maximum heating test
  • Minimum heating test
  • Automatic defrost test
  • Freeze-up test
  • Enclosure sweat and condensate disposal test
  • COP and SEER
