PT5013 6t Load 50m Jib Fixed Topless Type Tower Crane

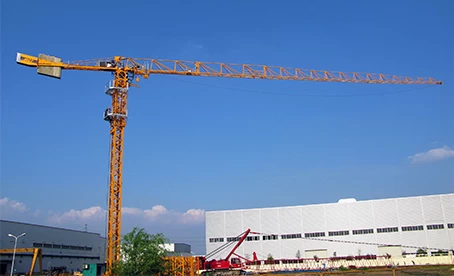

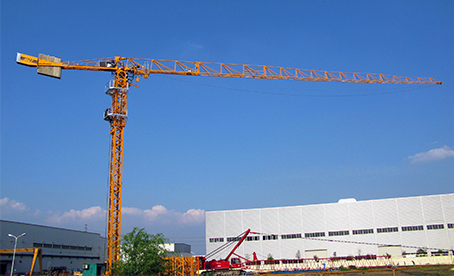

PT5013 Flat Top Tower Crane made by flat top tower crane manufacturers is an upper-slewing fixed type light crane that is widely used for constructing various kinds of industrial and civil buildings. Due to its compact structure, the crane is especially suitable for construction sites with tight space and complicated landform.The max radius is 50m. Independent loading-lifting height is 40m. Attaching loading-lifting height is 150m. The rated load moment is 630 KN.m .
6t topless tower crane PT5013 Load Diagram
Loading Diagram
|
Radius (m)
|
3-13.8
|
16
|
20
|
24
|
26
|
28
|
30
|
32
|
36
|
40
|
46
|
50
|
Weight (t)
|
2 Fall
|
3
|
3
|
3
|
3
|
3
|
2.78
|
2.56
|
2.37
|
2.06
|
1.81
|
1.52
|
1.36
|
Weight (t)
|
4 Fall
|
6
|
5.12
|
4
|
3.25
|
2.92
|
2.714
|
2.5
|
2.313
|
2
|
1.75
|
1.46
|
1.3
|
6t topless tower crane PT5013 flat top tower Parameters
Rated lifting moment (kN.m)
|
630
|
Lifting height (m)
|
Free-standing stationary crane
|
Anchored crane
|
|
40
|
150
|
Working radius (m)
|
Max. working radius
|
50
|
|
Min. working radius
|
3
|
Max. lifting capacity (t)
|
6
|
Hoisting mechanism
|
Rope fall
|
α＝2
|
α＝4
|
|
Speed (m/min)
|
9.5
|
37.5
|
75
|
4.7
|
19
|
37.5
|
|
Lifting weight (t)
|
4
|
3
|
1.2
|
8
|
6
|
2.4
|
|
Power(kW)
|
24/24/5.4
|
Traction mechanism
|
Speed (m/min)
|
44/22
|
|
Power (kW)
|
3.2/2.2
|
Slewing mechanism
|
Speed (r/min)
|
0.62/0/62
|
|
Power (kW)
|
3.7/3.7
|
Safety devices:
1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device.
