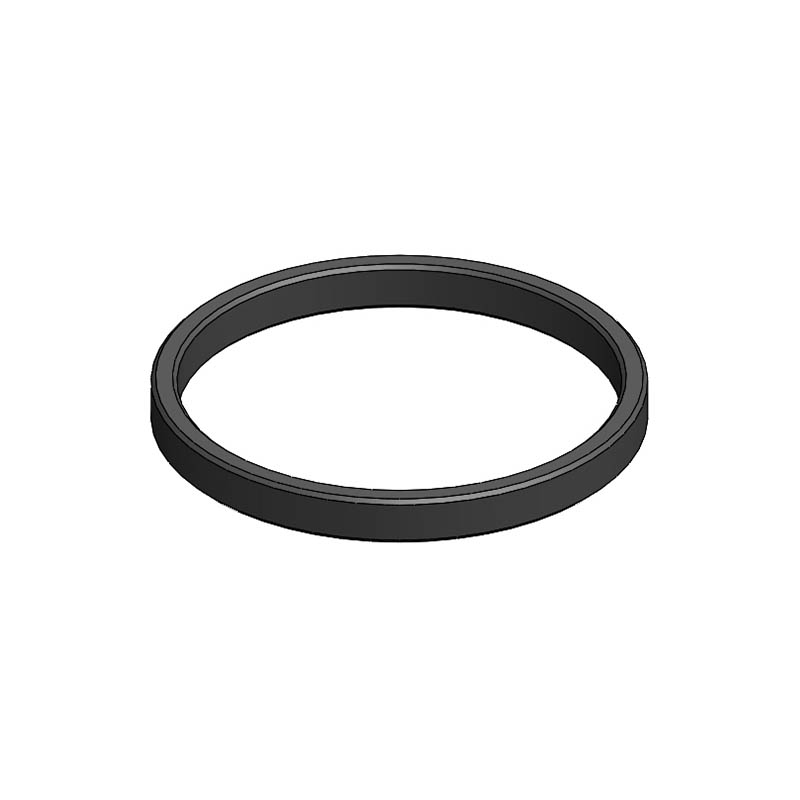

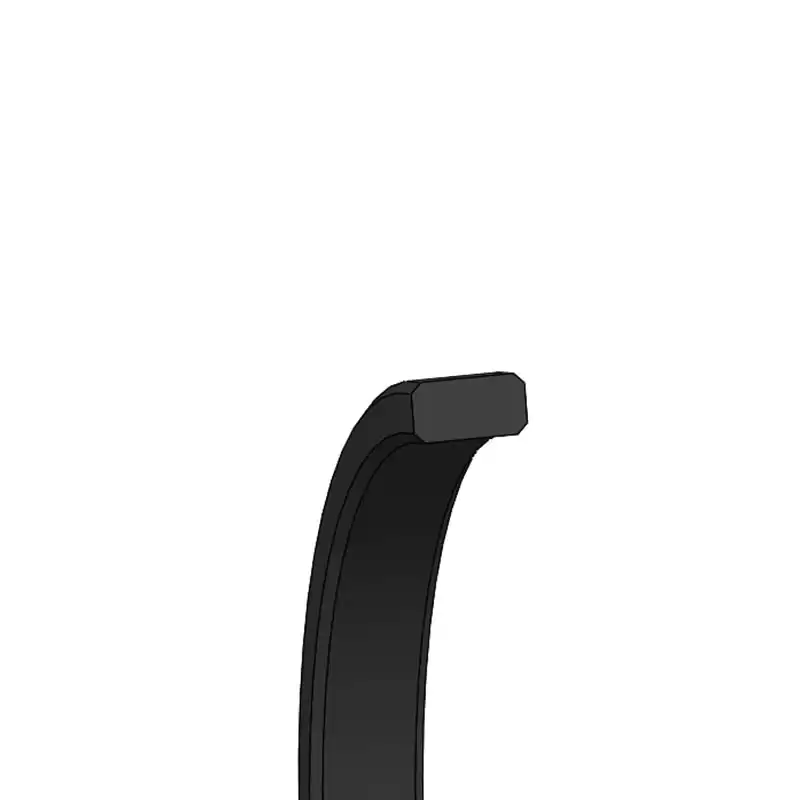

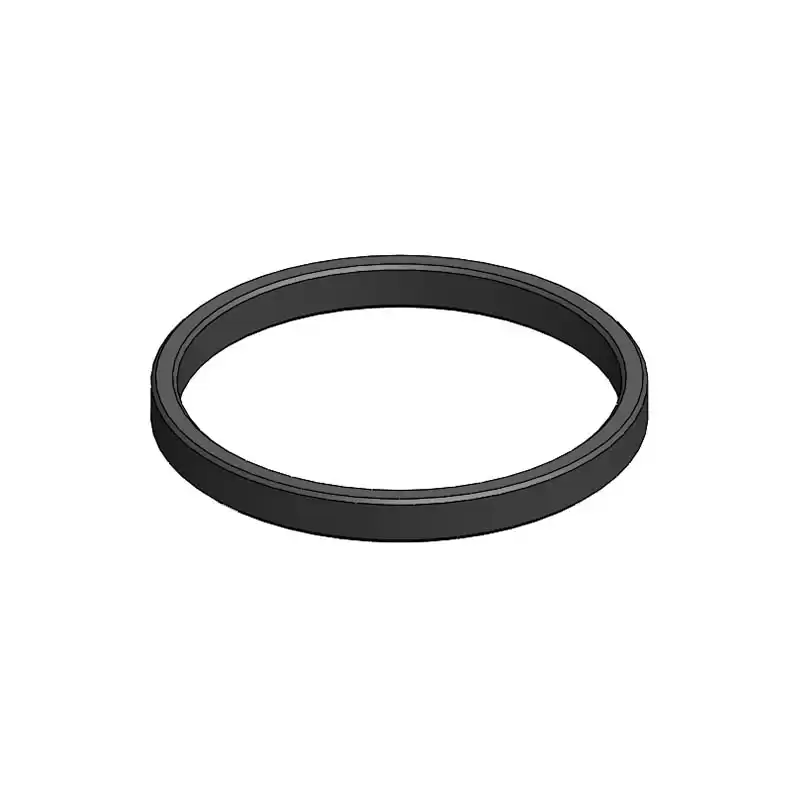

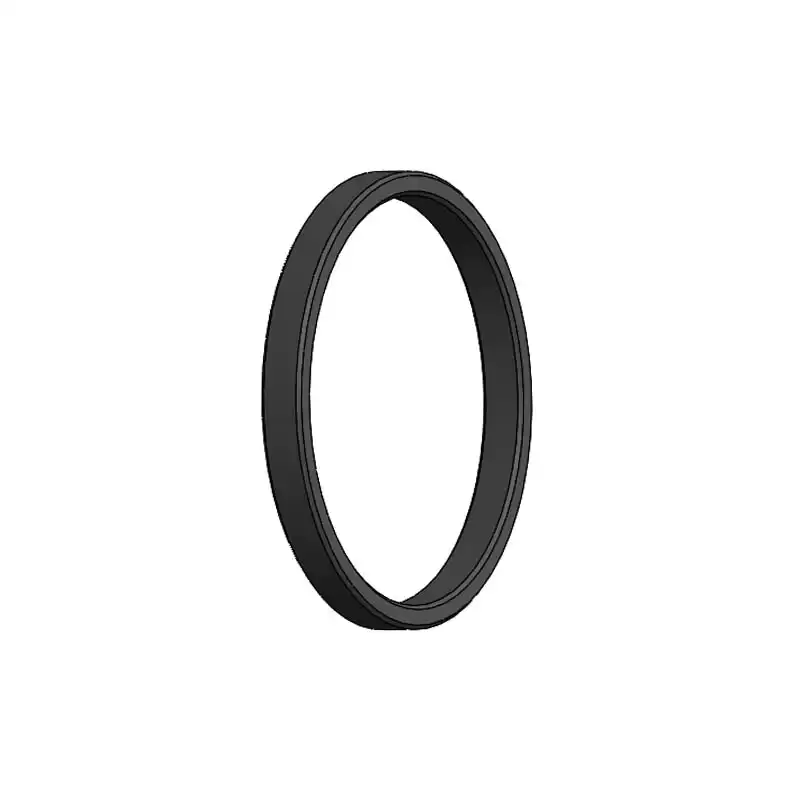

PTFE gate valve seat seal
The PTFE gate valve seat seal for type FC, FLS and FLS-R gate valves is made of durable teflon, it is compatible with the Cameron gate valve type FLS, and used in rotating equipment to minimize o-ring movement.
|
Advantages:
1.Cost-effective
2.Durable
|
Working Conditions
|
Working Pressure
|
Working Temperature
|
Working Medium
|
Material
|
0~15000 PSI
|
PU
|
Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water
|
Filled PTFE/PEEK
|
Application Suggestion:
FC, FLS valve

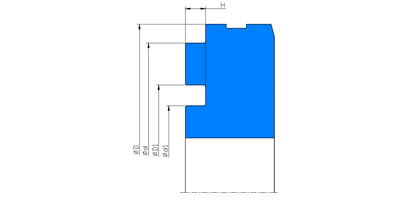

Size:
|
|
|
Pressure Level
|
|
Inch
|
MM
|
PSI
|
Mpa
|
|
1-13/16"
|
46
|
10K/15K
|
70/105
|
|
2-1/16"
|
52
|
2K/3K/5K/10K/15K
|
14/21/35/70/105
|
|
2-9/16"
|
65
|
3K/5K/10K/15K
|
21/35/70/105
|
|
3-1/16"
|
78
|
10K/15K
|
70/105
|
|
3-1/8"
|
80
|
2K/3K/5K
|
14/21/35
|
|
4-1/16"
|
103
|
3K/5K/10K/15K
|
21/35/70/105
|
|
5-1/8"
|
130
|
5K
|
35
|
|
6-3/8"
|
162
|
3K/5K
|
21/35
|
|
7-1/16"
|
180
|
3K/5K
|
21/35
|
|
7-1/16"
|
180
|
3K/5K/10K
|
35/70/105
|
