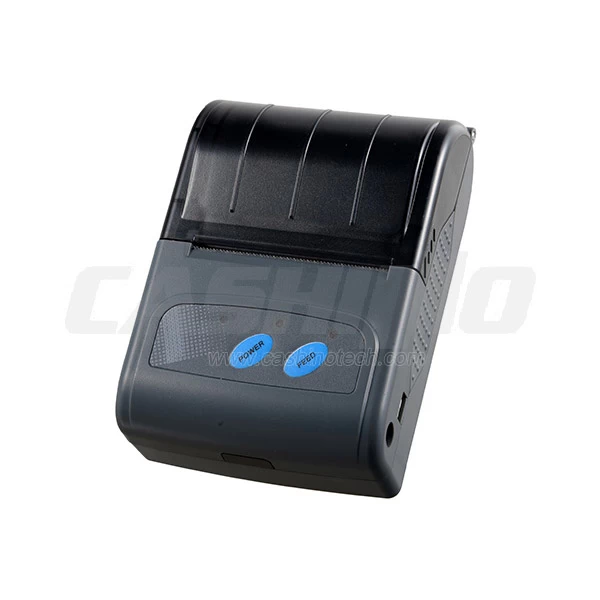

PTP-IIW 58mm portable mobile Wifi thermal printer
Brief:
The PTP-II is designed especially for those transaction applications where small size, fast printing and dependability while staying in budget are vital. Delivering the key features and communication methods, the PTP-II has the flexibility to meet the unique, industry-specific receipt printing and ease of use required to keep up with the mobile worker’s long and demanding shift.
Longer Battery Life with two standard 7.4V,2000mAh Lithium-ion rechargeable batteries.
Feature:
RS232, wifi, USB interface
Support android, ios, windows
Low battery indicator(7.4V,2000mAh)
Equipped with lithium battery for 8 hours continuous work
Specification:
| MODEL |
PTP-II |
| Print |
print mode |
Thermal line printing |
| Printing speed（Max.) |
90mm/s |
| Resolution |
203dpi(8dots/mm) |
| Effective printing width |
48mm |
| Paper spec. |
Paper Type |
Thermal paper roll |
| Paper Thickness |
0.055-0.01mm |
| Paper Width |
57.5mm±0.5mm |
| Paper Diameter |
40mm(Max.) |
| Roll Core Inner Diameter |
13mm(min) |
| Paper supply method |
Drop-in easy loading |
| Reliability |
TPH |
50km(12.5% print ratio) |
| Detection |
Paper ending |
| Barcode |
1D |
EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E |
| 2D |
QR CODE,PDF417 |
| Text and graphic support |
Figure, symbol, graph, curve, icon, multi-languages |
| Command set |
ESC/POS |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK |
| Interface |
Wire |
Raw-ir/RS232/Mini USB |
| Wireless |
Dual bluetooth/WIFI |
| Battery |
2000mAh |
| Recharge adapter |
12V ,1A |
| Accessories |
Standard accessories |
Li-ion battery, AC adapter, USB cable,paper roll, user manual |
| Optional accessories |
Protective Case, CD,user manual,RS232 cable |
| Temperature |
Operating:0℃~50℃ |
| Storage:-20℃ ~ 60℃ |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
