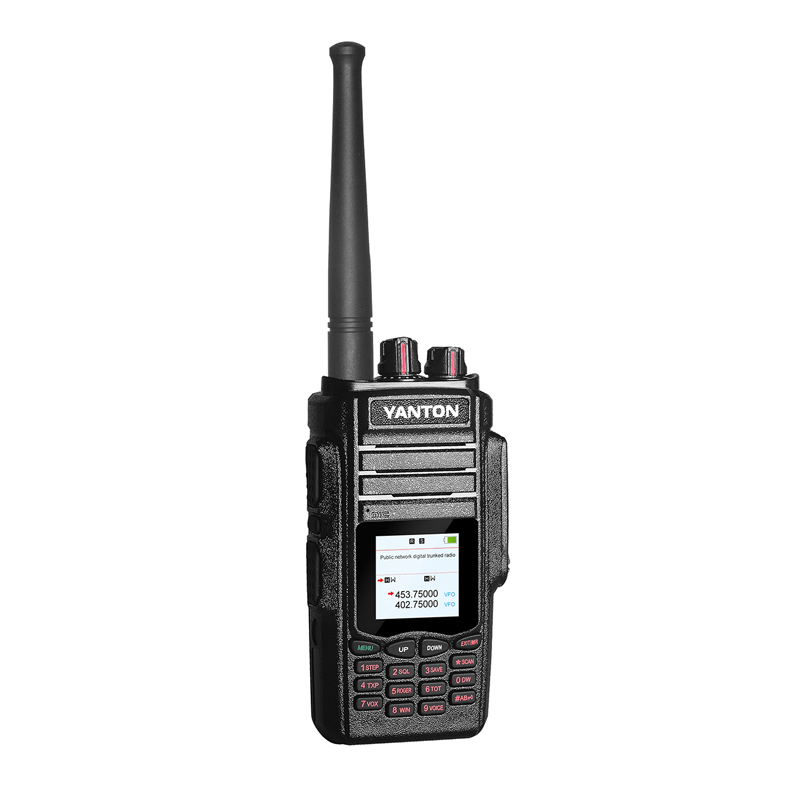

Ptt over cellular smart mobile radio with GPS
T-X7 4G cellphone VHF UHF dual mode radio is a new generation of POC radio that realized the POC and analog switch, POC to analog in repeater function,save the traffic date if communcation distance enough in analog mode, double PTT is convenient to easy communction.
Quick Details
Individual Call /Group Call/All Call
Output Power:1W
Contacts
Built-in 50 set of CTCSS and 105 set of DCS
ANI
Double PTT
Friendly Interface Displays The Calling Information
12V/24V Input Intelligent Charger
Specification
GENERAL
|
(U)SIM/SIMU
|

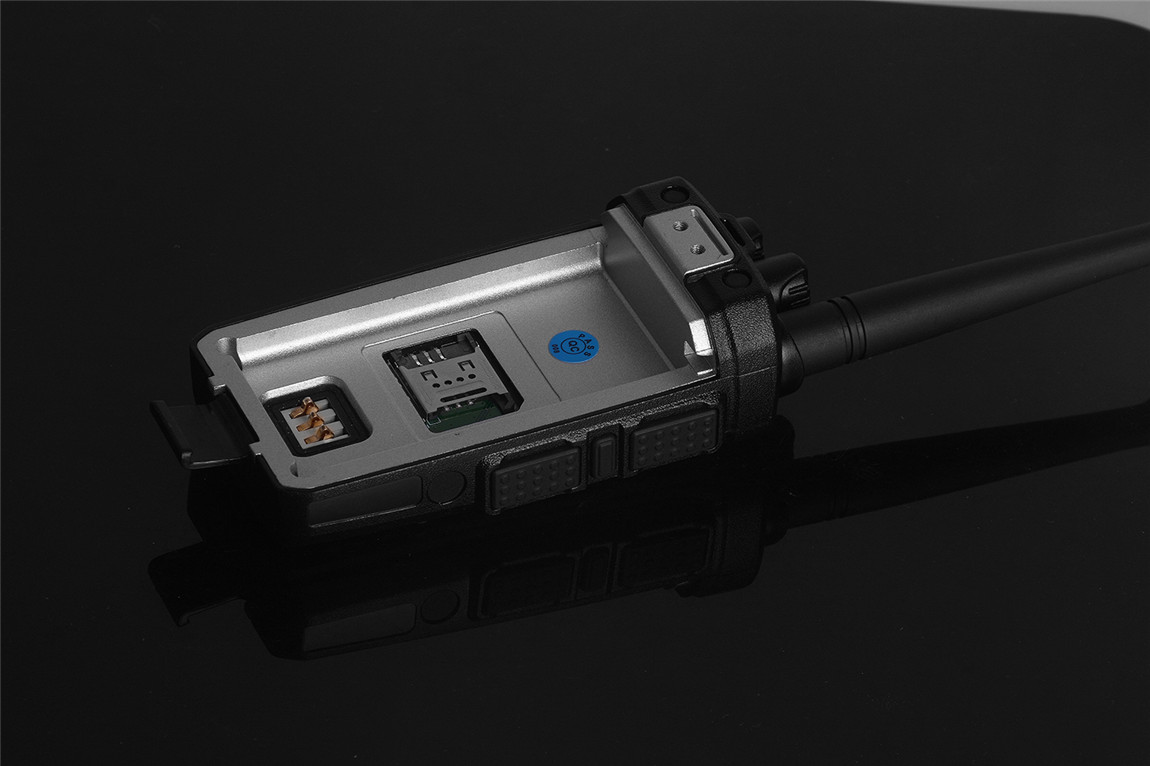

Standard SIM card interface 3V SIM card and 1.8V SIM card
|
Operating Temperature
|
-30℃ to +75℃
|
UMTS Band
|
HSDPA/WCDMA:2100/1900/850(900)MHz
|
Average current
|
About 540mA@UMTS 2100 About 239mA@GSM 900
|
Operation current
|
About 0.6A
|
Working voltage
|
DC 3.3V-4.2V(3.8V is recommended)
|
Standby current
|
About 5mA@UMTS About 5mA@GSM
|
Dimensions
|
102mm*58mm*34mm
|
Weight
|
About 194g
|
TRANSMIT PART
|
RF power
|
Public network mode:About 2.2uw;
Analog mode:2W.
|
Transceiver power
|
UMTS2100/1900/900/850:Power Class 3 (+24dBm +2.5/-1.5dBm)
EDGE 850MHz/900MHz: Power Class E2 (+27dBm +4.5/-1.5dBm)
EDGE 1800MHz/1900MHz: Power Class E2 (+26dBm +4.5/-2.5dBm)
|
UART Interface
|
8-wires UART
|
RECEIVER
|
Receiving Sensitivty
|
WCDMA2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900 : ≤-109dBm
WCDMA850:≤-109 dBm
|

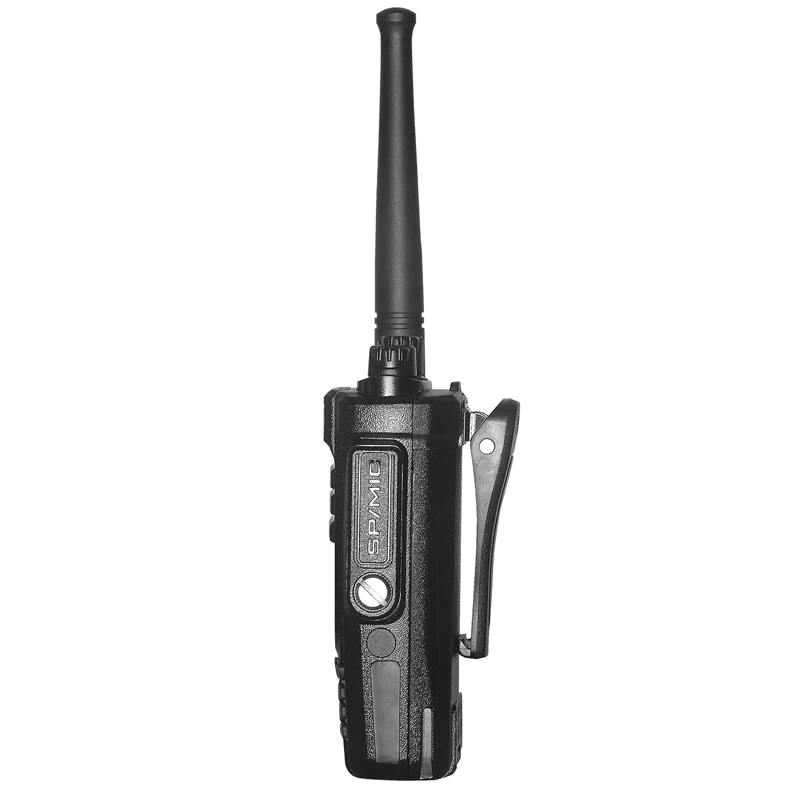

4G cellphone VHF UHF dual mode radio
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
