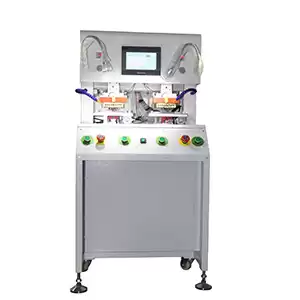

Pulse Heat Bonding Machine With Pre-heat Fixture

Pulse Heat Bonding Machine With Pre-heat Fixture

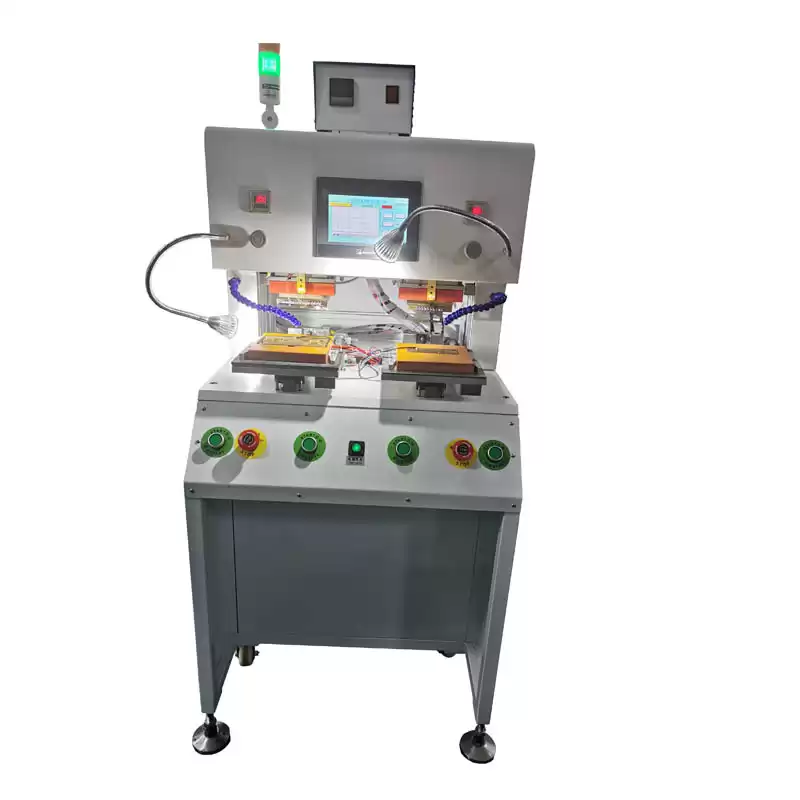

Principles:

Pulse heat bonding machine is intended to solder electric components.
It consists of a reflow head which holds down the object and applies pressure force and the pulse heat power supply which applies the current.

Pulse heating is an instantaneous heating method. Heating is performed only when the solder is desired to be melted.
Electric current is applied to the iron to generate heat by resistance and the solder is melted. When the solder has melted, the current will be stopped and the solder is cooled. And when the solder has hardened, the heater tip is raised.

Because the pressure is kept applied until the solder is hardened, highly reliable joining without lifting up can be achieved.

;

Features:

1. According to different products, optional temperature for your choice.

2. Unique material thermode head, ensure the average pressure.

3. Has vacuum function, easier for adjustment and positioning.

4. NC temperature, clear and high precision.

5. With digital pressure gauge, pressure range can be preset.

6. Microcomputer control, high accuracy and stable.

7. Programmable curve including pre-heating and reflow soldering temperature.

8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.

9. Precise PID control, phase angle replace pulse drive.

10. Less Libration, less noise, avoiding voltage fluctuate.

11. Rotable dual fixtures with high working efficiency.

12. Touch screen input data, simplify the operation.

13. Real-time display temperature curve and temperature data.

;

Specifications: ;

;

Applications:

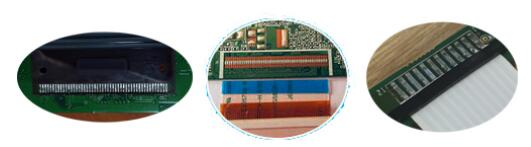

During hot bar soldering, a pulse head bonding machine thermode is heated to a specific temperature by a pulse heat power supply. The thermode applies sufficient heat to cause the solder to melt and flow, after which the components are cooled under pressure, thereby creating an electro-mechanical bond between the two components. It is available for FFC to PCB soldering, FPC to PCB soldering, wires to PCB soldering, copper to copper soldering, ect.

Customized Thermode and Fixtures:

; ; ; ;

Thermode Head Introduction:

Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.

The level of soldering head is adjustable , to ensure uniformpart assembly processing

Digital display to control temperature,easyand clear

With digital pressure meter, can be preset pressure range

Special welding materials

It is equipped with precise PID control, phase Angle instead of pulse drive.

Little vibration, low noise, no voltage fluctuation

Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting
