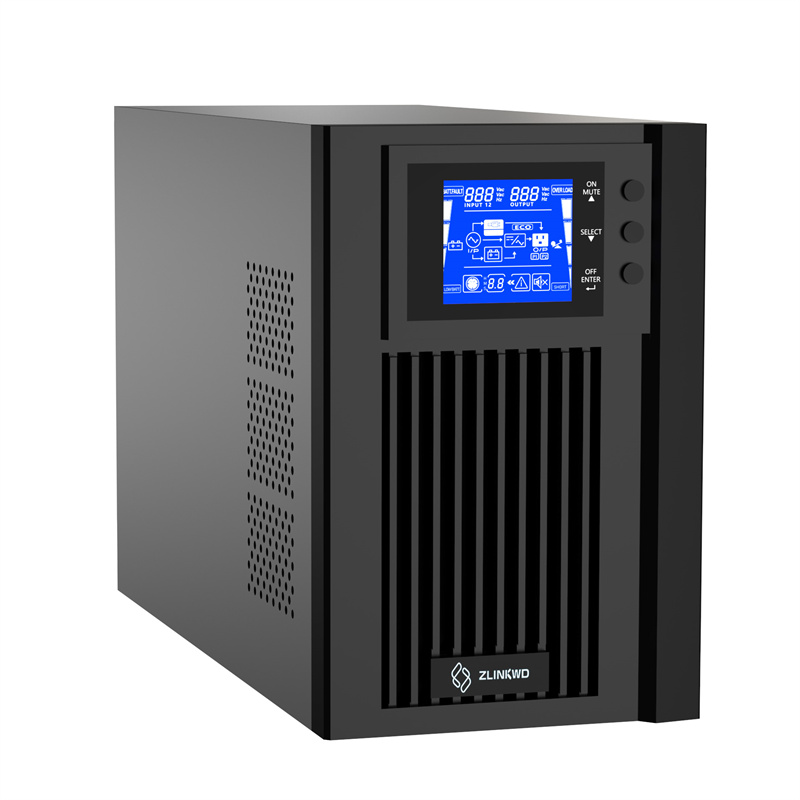

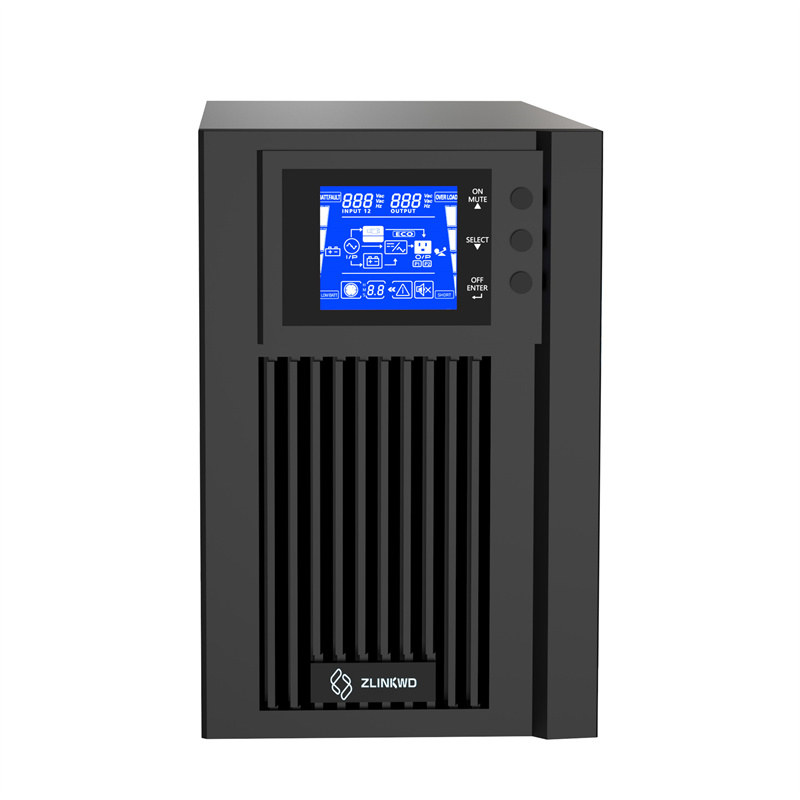

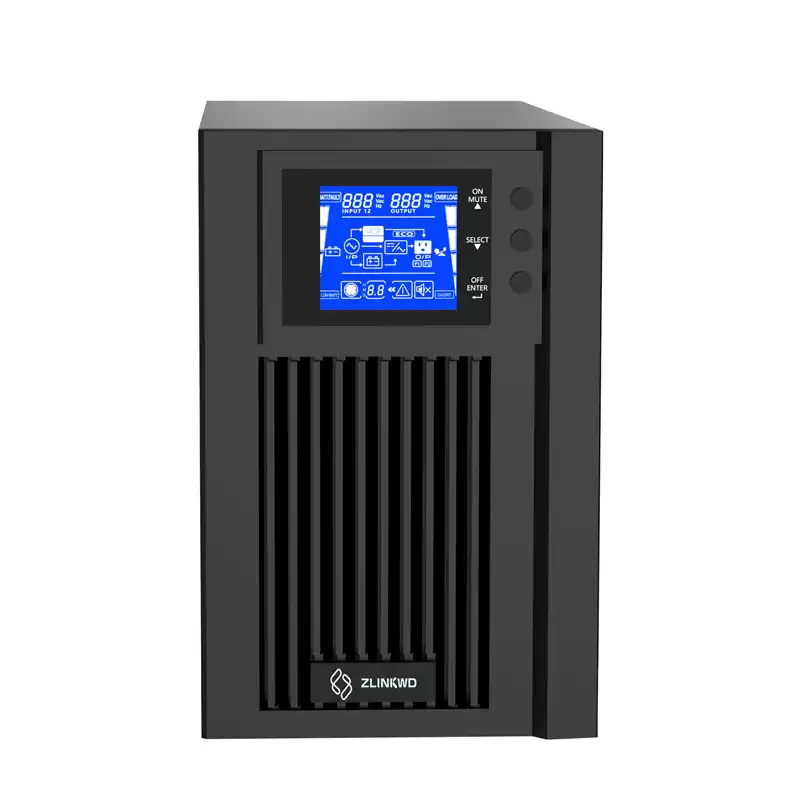

Product Overview
True double-conversion
-
Microprocessor control optimizes reliability
-
Input power factor correction
-
Output power factor 0.8
-
Wide input voltage (110 V – 300 V)
-
Converter mode available
-
ECO mode for energy saving
-
Generator compatible
-
Charger capacity expansion to 6A for long-run models
-
Smart SNMP works well with either USB or RS-232 together
-
Comprehensive display allows easy monitoring and access of UPS status
Application Scenarios
-
-
-
Hydropower station
-
Transportation
-
Coal Mining
Technical Specification
|
Model
Technical Data
|
C6K
|
C6K（R)L
|
C10K
|
C10K(R)L
|
3C10K(R)L
|
3C15K(R)L
|
3C20K(R)L
|
|
Nominal Output Capacity
|
6000VA/4800W
|
10KVA/8KW
|
10KVA/8KW
|
15KVA/12KW
|
20KVA/12KW
|
|
Rated
|
Nominal Voltage
|
220Vac
|
380Vac
|
|
AC INPUT
|
Nominal frequency
|
50Hz
|
|
Input Voltage Range
|
120~275VAC±5
|
305~478VAC
|
|
Input Frequency
|
(45~55) ±0.5Hz
|
|
Bypass Voltage
|
80VAC×(1±5%) ~285VAC×(1±5%)
|
190~520VAC
|
|
Battery
Input
|
Battery Unit Voltage
|
Standard 192VDC (240VDC Optional)
|
|
Battery capacity
&Number
|
12VDC x 16 (20PCS Optional)
|
External 12VDCx16pcs
|
|
Charge Current
|
Charge Current 4A (Long Run UPS)
|
4A
|
|
AC output
|
Output Voltage
|
220Vac ±1%（Inverter Output）
|
220VAC±1%(Inverter output)
|
|
Output Frequency
|
46~54Hz (AC Input Normal) ; 50Hz ± 1% (AC Input Abnormal)
|
|
Wave Form
|
Sine Wave THD < 3% (Linear Load) ; Sine Wave THD < 8% (Non-Linear Load)
|
|
Output Power Factor
|
0.8
|
|
Overload
|
105~125%, Transfer To Bypass After 1 Min
|
|
Communication & Monitoring Function
|
RS232 (optional 485), Dry Contact, Intelligent Slot (Expandable SNMP, SMS, And Other Monitoring Mode)
|
|
Tower
|
Net.Weight(KG)
|
57
|
12.6
|
59
|
13.2
|
14.8
|
15.3
|
15.3
|
|
Gross.Weight(KG)
|
64
|
15.5
|
65
|
15.5
|
15.5
|
16.5
|
16.5
|
|
Unit Dimension
(L x W x H) mm
|
502x250x610
|
425x190x320
|
425x190x320
|
425x190x320
|
425x190x320
|
425x190x320
|
425x190x320
|
|
Carton Dimension
(L x W x H) mm
|
650x350x720
|
525x325x460
|
525x325x460
|
525x325x460
|
525x325x460
|
525x325x460
|
525x325x460
|
|
Rack
|
Weight (kg)
|
-
|
18.5
|
-
|
19.9
|
21
|
21.5
|
21.5
|
|
Dimension
(W x H x D) mm
|
-
|
640x130x440
|
-
|
640x130x440
|
640x130x440
|
640x130x440
|
640x130x440
|
|
Carton Dimension
(W x H x D) mm
|
-
|
795x595x265
|
-
|
795x595x265
|
795x595x265
|
795x595x265
|
795x595x265
|
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
