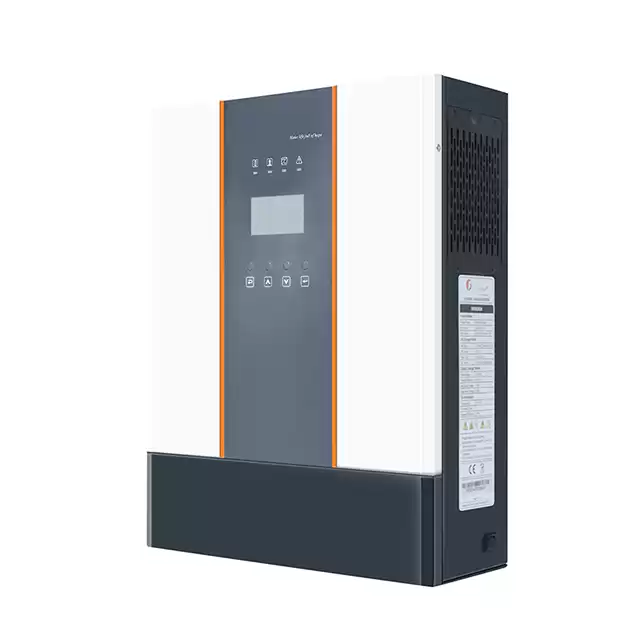

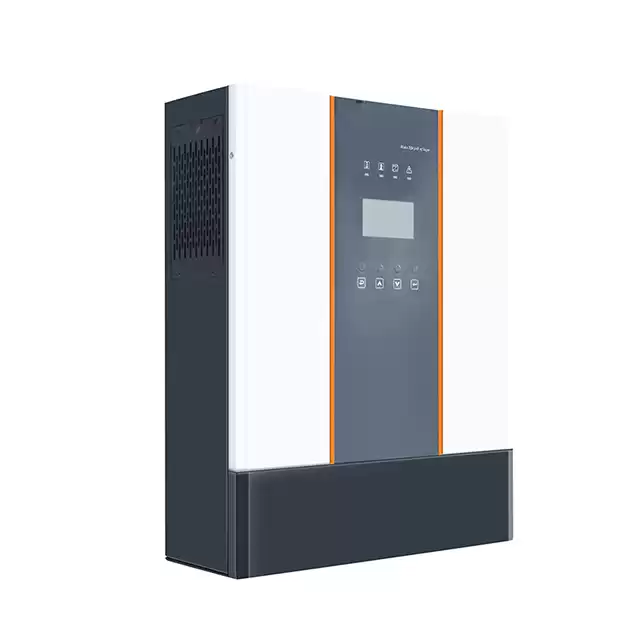

Greystone 24V 3KVA 48V 5KVA Off Grid Solar Inverter
Product Description
Advantages
1.Pure sine wave
2.Built-in MPPT solar charge controlller
3.Configurable solar input voltage up to 450V Maximum
4.Configurable input voltage range for home appliances and personal computers via LCD setting
5.Configurable battery charging current based on applications via LCD setting
6.Configurable AC/Solar Charger priority via LCD setting
7.Compatible to mains voltage or generator power
8.Auto restart while AC or Solar is recovering
9.Capable working without battery connection
10.Capable suppling power to AC output with solar and utility at same time
11.Capable suppling AC output with solar input only
12.Overload/ Over temperature/ short circuit protection
13.Cold start function
14.Parallel operation with up to 9 units only available for 5KVA model
Equipment Parameters
|
|
GSI-FI243
|
GSI-FI485
|
Rated Output Power(VA)
|
3000VA
|
5000VA
|
Rated Output Power(W)
|
3000W
|
5000W
|
Nominal DC Input Voltage
|
24V
|
48V
|
Input Voltage Waveform
|
Sinusoidal(Utility or generator)
|
Nominal Input Voltage
|
230Vac
|
Low Line Disconnect
|
170Vac±7(UPS); 90Vac±7Vac(Appliances)
|
Low Line Re-connect AC Input Range
|
180Vac±7(UPS); 100Vac±7Vac(Appliances)
|
High Line Disconnect
|
280Vac±7Vac
|
High Line Re-connect
|
270Vac±7Vac
|
Max AC Input Voltage
|
280Vrms
|
Nominal Input Frequency
|
50Hz/60Hz(Auto detection)
|
Max PV Open Circuit Voltage
|
450V
|
PV Voltage Working Range
|
120V~450V
|
Max Input Power
|
4000W
|
6000W
|
Max Solar Charging Current
|
100A
|
Max Charging current(Utility + Solar)
|
100A
|
Max Input Current
|
15A
|
20A
|
Min Start Up Voltage
|
125V
|
