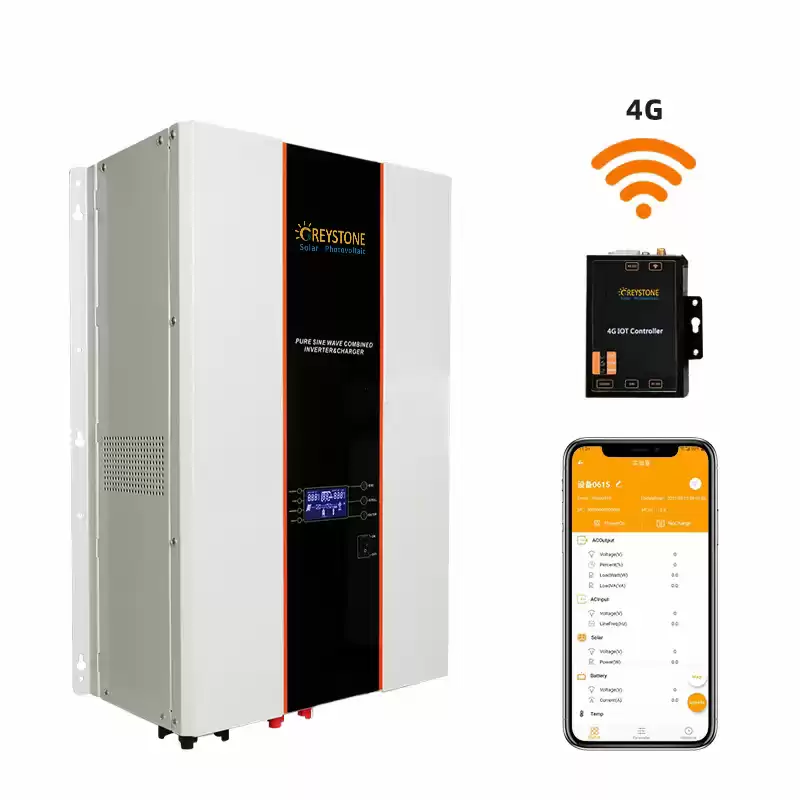

FOTOVO 48V 220V 7.5KVA low frequency off grid inverter with battery charger
Product Description
Advantages
1. Bypass charging function,AC charge available when the unit off
2. 90-280V AC Widely input voltage Grid electricity and battery power priority is optional.
3. Higher charge current and adjustable Communicate with our MPPT charge controller.
4. Intelligentprotection, high class of security.
Equipment Parameters
|
|
GSI-FI S7548
|
GSI-FI M7548
|
Rated Output Power(VA)
|
7500VA 6000W
|
Rated Output Power(W)
|
6000W
|
DC Input Voltage
|
48V
|
Input Voltage Waveform
|
Sine(public facility or generator)
|
Rated Input Voltage
|
220Vac
|
Grid low voltage
|
90Vac±7Vac
|
Grid low voltagerecovery voltage
|
100Vac±7Vac
|
Grid high voltage
|
280Vac±7Vac
|
Grid high voltage recovery voltage
|
270Vac±7Vac
|
Max Input Voltage
|
280Vrms
|
Rated input frequency
|
50Hz/60Hz
|
Grid underfrequency
|
40±1Hz
|
Grid underfrequency recovery
|
42±1Hz
|
Grid overfrequency
|
65±1Hz
|
Grid overfrequency recovery
|
65±1Hz
|
Output waveform
|
Synchronize with input voltage
|
Overload protection
|
Air switch protection
|
Output short circuit protection
|
Air switch protection
|
Efficiency(grid)
|
≥95%
|
Switching time(AC TO DC)
|
15ms Typical value
|
Switching time(DC TO AC)
|
15ms Typical value/30ms special value
|
|
Through battery free
|
NO
|
Grid max bypass current
|
63A
|

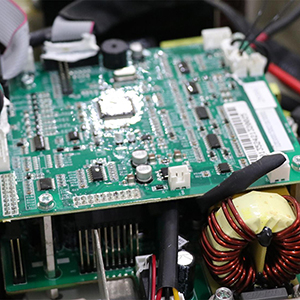

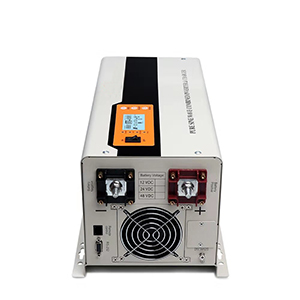

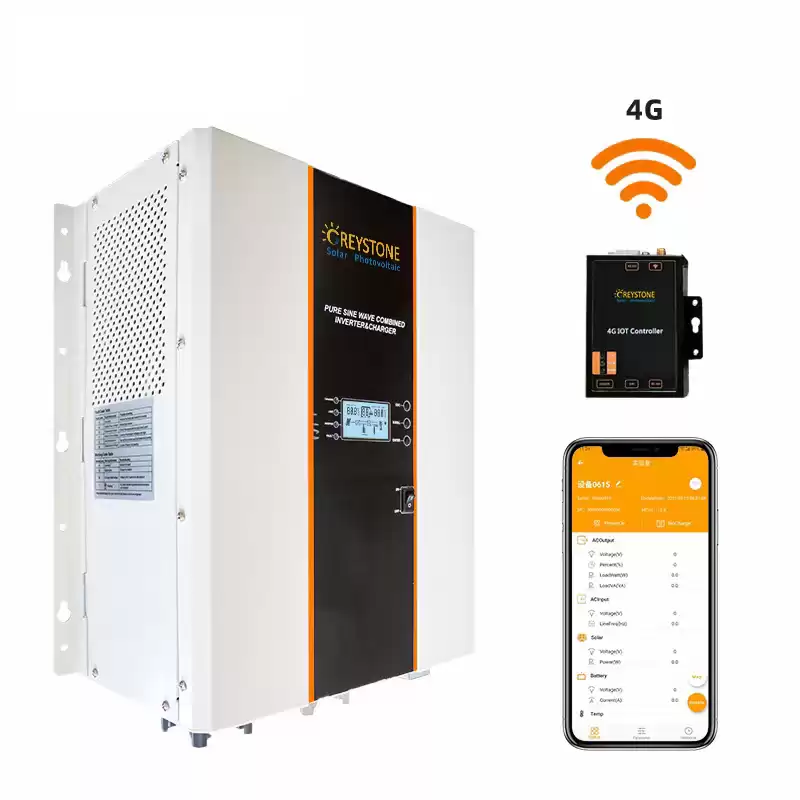

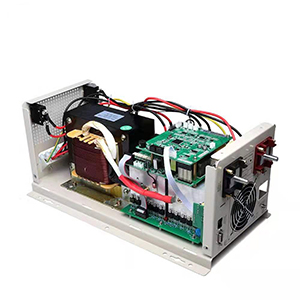

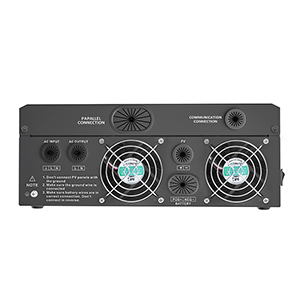

Product Details

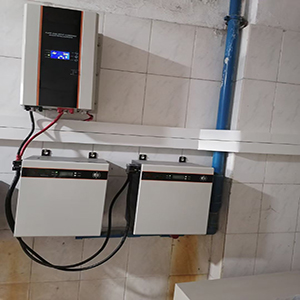

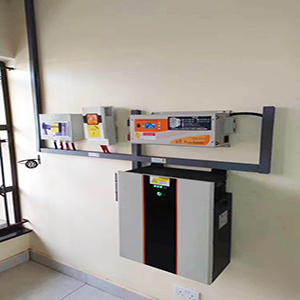

Factory and Delivery
