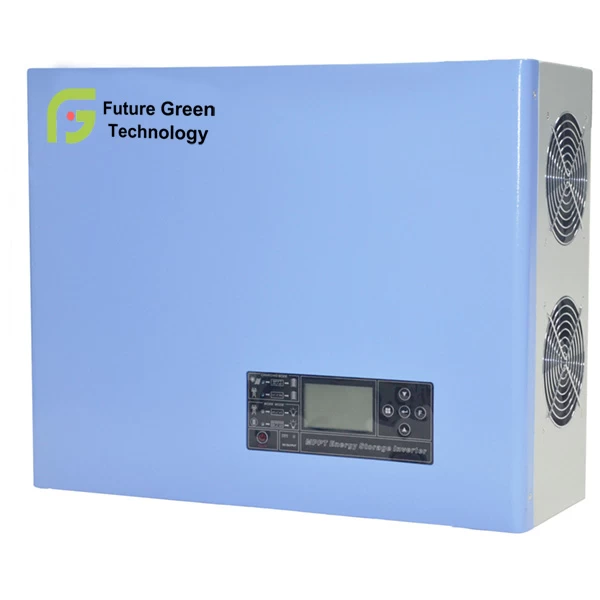

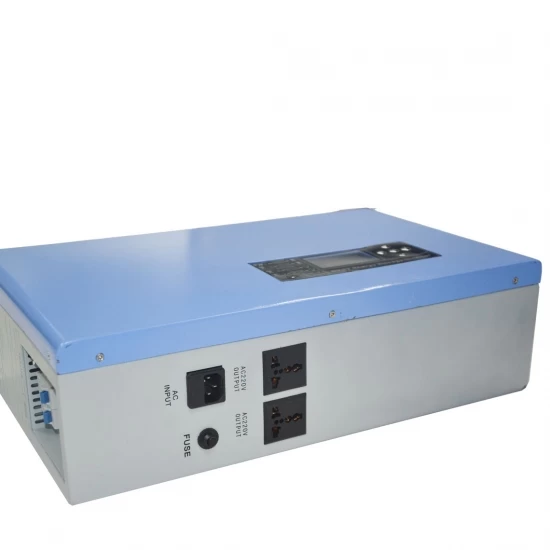

Products Advantages
1. Use 100% sufficient transformer and advanced line design to ensure that the inverter can output at full load.
2. Have UPS, voltage regulation, inverter, charging four functions.
3. Intelligent LCD display, can display real-time parameters of the inverter and solar controller operation.
4. With fault record and fault reminding function, after the fault occurs, the fault type is directly displayed on the LCD screen, which is convenient for the user to eliminate various faults in the operation of the solar power system.
5. This solar inverter has a standby mode, the system will detect the output power, automatically enter the standby mode when there is no output, in this mode the power consumption is very small.
6. With unattended mode, as long as the battery has electricity, the inverter will automatically start.
7. Using a toroidal transformer, the loss is small and the efficiency is high.
8. The utility power supply mode and the solar energy priority power supply mode can be selected to meet the diversified needs of users.
9. You can choose the mains charging mode and the mains and solar energy charging mode.
10. Support lithium batteries, lead-acid batteries and other batteries.
11. The user can adjust various charging parameters and discharge parameters through the display.
12. There is a mobile phone APP, you can browse the various parameters of the inverter operation through the mobile phone.
Products Parameters
|
Model（TIC-）
|
0730
|
1030
|
1530
|
1560
|
2030
|
2060
|
3030
|
3060
|
4060
|
4060-96V
|
5060
|
5060-96V
|
6060
|
6060-96V
|
|
Rated Capacity
|
700W
(1000VA)
|
1000W
(1500VA)
|
1500W
(2000VA)
|
2000W
(3000VA)
|
3000W
(5000VA)
|
4000W
(6000VA)
|
5000W
(7000VA)
|
6000W
(8000VA)
|
|
Max.PV
input voltage(Vdc)
|
12V (DC18V~DC150V)；24V(DC34V~DC150V); 48V(DC65V-150V);
96V(DC130-DC180V）
|
|
Max.charge
current(A)
|
30A
|
30A
|
30A
|
60A
|
30A
|
60A
|
30A
|
60A
|
60A
|
96V60A
|
60A
|
96V60A
|
60A
|
96V60A
|
|
Battery voltage(Vdc)
|
12/24V
|
12/24V
|
24/48V
|
24/48V
|
24/48V
|
24/48V
|
24/48V
|
24/48V
|
24/48V
|
96V
|
48V
|
96V
|
48V
|
96V
|
|
Max.PV input
power(W)
|
420W
/840W
|
420W
/840W
|
420W
/840W
|
1700W
/3400W
|
840W
/1650W
|
1700W
/3400W
|
840W
/1650W
|
1700W
/3400W
|
840W
/1650W
|
6800W
|
3400W
|
6800W
|
3400W
|
6800W
|
|
Battery float
voltage(Vdc)
|
12V(13.75V);24V(27.5V)48V(55V);96V(110V)
|
|
Battery equalizing
charge voltage(Vdc)
|
12V(14.2V); 24V(28.4V);48V(56.8V);96V(113.6V)
|
|
Battery
|
Optional
|
|
AC charging
current (A)
|
Standard:0-30A
|
|
AC output
voltage(Vac)
|
110/220/230/240±3%
|
|
AC output frequency(Hz)
|
50/60±3%
|
|
efficiency
|
≥85%
|
|
Overload capacity
|
105-120%
30S;120-150% 10S;>150% 5S
|
|
Output wave
|
Pure
sine wave
|
|
Output power factor
|
≥0.8(＞30%
Load）
|
|
Wave form
distortion factor
|
≤3%
|
|
Switch time
|
≤4mS
|
|
Complete protections
|
DC&AC
overload,under-voltage,SPD,short-circuit,overcharge,over
discharge,over-temperature,ect
|
|
Cooling
|
High-velocity
fan cooling
|
|
Noise emission [dBA]
|
<60
|
|
Operating temperature
range(℃)
|
-10
～ 50
|
|
Relative humidity
in operation
|
10％
～ 90％(non considensing)
|
|
Max.operating altitude(M)
|
<5000
(>1000m,derating)
|
