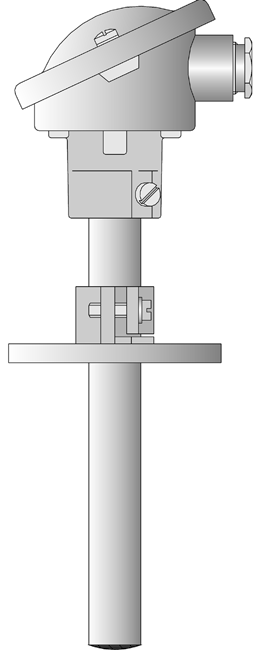

Push-in thermocouples
with terminal head form A
■ For temperatures from -200 to +1600 °C
■ With thermowells made of various materials
■ As single or double thermocouple
■ Available with transmitter
Push-in thermocouples are preferentially used for measuring temperatures in liquids and gases.
The application areas are, among others, in the HVAC, kiln and apparatus engineering sector.
The connection head form A is suitable for ambient temperatures up to +100 °C. The support
tube is made of steel. When using a counter flange, see data sheet 90.9750 (90.9725), the
installation point can be sealed up to 1 bar.
Sheaths made of various ceramic materials and heat resistant steels protect the measuring
insert against chemical influences and mechanical damage. The selection of a suitable sheath
material depends on the conditions on site.
Thermocouples (elements) as per DIN EN 60584 and DIN 43710, class 2, are set into the
measuring insert. Versions with two thermocouples are also possible.
|
