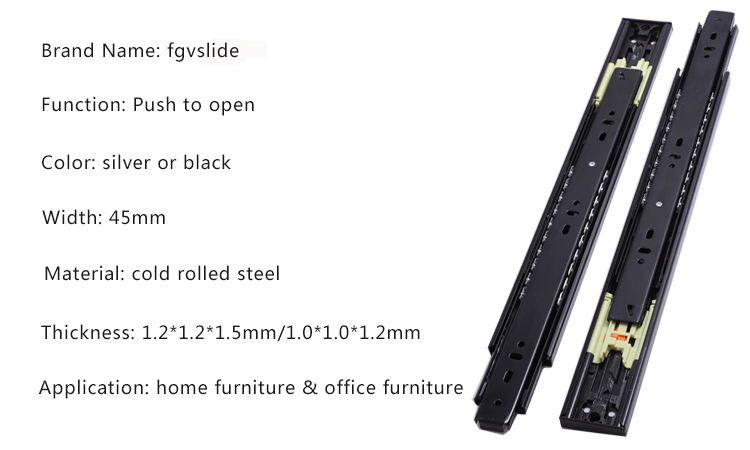

Push to open kitchen furniture fittings manufacturers cabinet drawer slides
|
|
Furniture fittings push to open kitchen cabinet drawer slides
|
|
DY4510SN
|
|
|
Standard
|
|
Zinc Plated
|
|
|
35 KGs / 45 KGs
|
|
10 to 24 inches
|
|
BALLS
|
2 Balls / 3 Balls
|
EDGE
|
Oval / Square
|
|
INSTALLATION
|
side mount
|
MOQ
|
1000 pairs
|
|
EXTENSION
|
full extension
|
TEST
|
pass 48hrs salt spray test
|
|
OUTER MEMBER SIZE(mm)
|
INNER MEMBER SIZE(mm)
|
MIDDLE MEMBER SIZE(mm)
|
|
243
|
238
|
183
|
|
293
|
288
|
233
|
|
343
|
338
|
283
|
|
393
|
388
|
333
|
|
443
|
438
|
383
|
|
493
|
488
|
433
|
|
543
|
538
|
483
|
|
593
|
588
|
533
|
|
Testing
|
SGS TEST
|
|

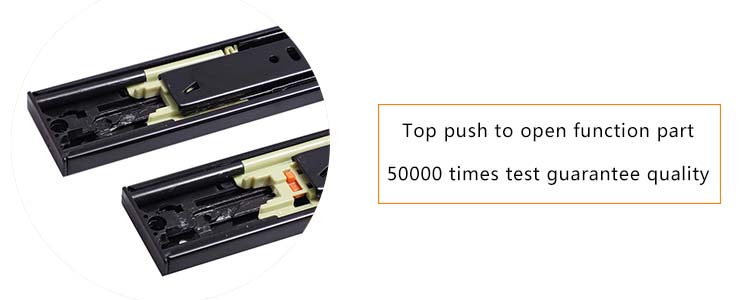

Passed over 50,000 open-close
|
|
Passed 48 hours salt spray test
|
|
Passed 75 pounds load test
|
|
Sample
|
Sample free and small order can be accepted
|
|
Features
|
Strengthened adjustable screw can widen the adjustable ranges and longer using life.
|
|
Strengthened spring, thickness 2.5mm instead of common one thickness:
1.2*1.2*1.5mm or 1.0*1.0*1.2mm
|
|
Adopt advanced hydraulic system,longer life time,smaller volume
|
|
Thickness(mm)
|
Length(mm)
|
N.W.(kg)/box
|
G.W.(kg)/box
|
CTN SIZE(mm)
|
|
1.0*1.0*1.2
|
250
|
10.95
|
11.45
|
270*200*100
|
|
1.0*1.0*1.2
|
300
|
13.14
|
13.64
|
320*200*100
|
|
1.0*1.0*1.2
|
350
|
15.33
|
15.83
|
370*200*100
|
|
1.0*1.0*1.2
|
400
|
17.52
|
18.02
|
420*200*100
|
|
1.0*1.0*1.2
|
450
|
19.71
|
20.21
|
470*200*100
|
|
1.0*1.0*1.2
|
500
|
21.9
|
22.4
|
520*200*100
|
|
1.0*1.0*1.2
|
550
|
24.09
|
24.59
|
570*200*100
|
|
1.0*1.0*1.2
|
600
|
26.28
|
26.78
|
620*200*100
|
1. What’s the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 20 feet container. If there is no need for brand logo and
package, MOQ is 500 pairs per size.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass
production quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose
and the country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-30 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, against B/L
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is very rare. If there are some quality problems, such as finish problem.
