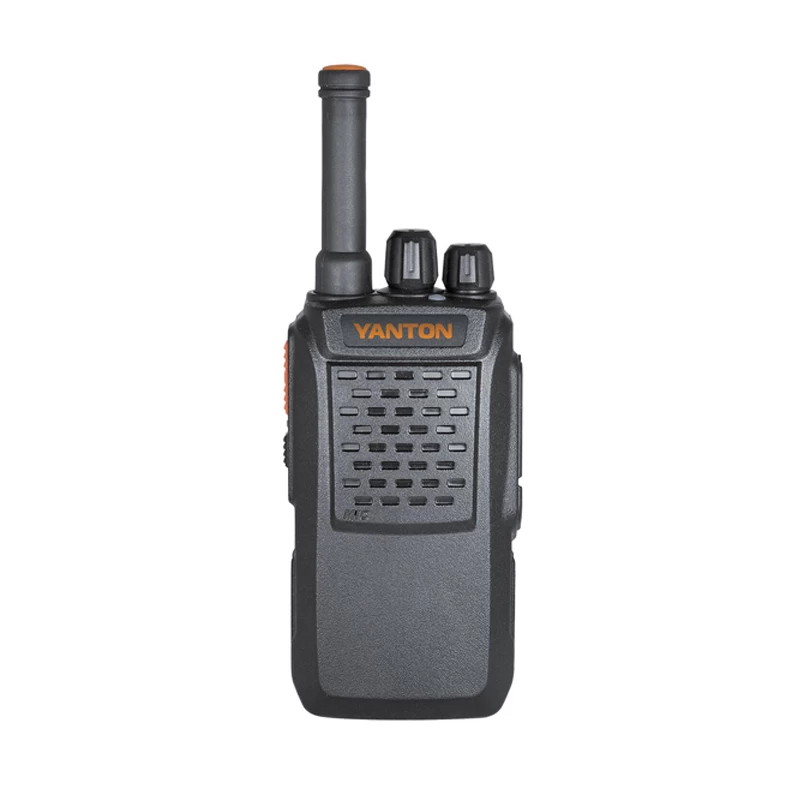

Push to talk over cellular solution 3G Network Radio
T-X2,POC Network WCDMA 3G/2G Radio, is the first generation of radio push-to-talk over cellular that enable the usage of PTT over WCDMA and GSM,delivering wide coverage expansive coverage in every area and situation, excellent data transmission rates and the best speech quality.
Quick Details
1.Selective Call,Group Call and All Call
2.Ultra High Capacity Li-ion Battery
3.12V/24V Input Intelligent Charger
4.Network Signal Strength Prompt
5.Voice Prompt Authority Setting
6.GPS Function Optional
Specification
|
Technique Specification
|
|
General Features
|
Dimensions(without antenna)
|
102mm*58mm*34mm
|
|
Weight(With Battery)
|
About 194g
|
|
Operating Temperature
|
-30℃ to +75℃
|
|
Operating Voltage
|
DC 3.3V-4.2V(3.8V is recommended)
|
|
Operating Current
|
Peak Current
|
About 0.6A
|
|
Average Current
|
About 540mA@UMTS 2100 About 239mA@GSM
900
|
|
Standby Current
|
About 5mA@UMTS About 5mA@GSM
|
|
Baseband
|
(U)SIM/SIMU
|
Standard SIM card interface 3V SIM
card and 1.8V SIM card
|
|
UART Interface
|
8-wires UART
|
|
MAX. Power Consumption
|
About 2.2uw
|
|
Radio Frequency
|
UMTS Band
|
HSDPA/WCDMA:2100/1900/(900)MHz
|
|
Transmit Power
|
UMTS2100/1900/900/:Power Class 3
(+24dBm +2.5/-1.5dBm)
|
|
EDGE 900MHz: Power Class E2 (+27dBm
+4.5/-1.5dBm)
|
|
EDGE 1800MHz/1900MHz: Power Class E2
(+26dBm +4.5/-2.5dBm)
|
|
Receiving Sensitivity
|
WCDMA2100: ≤-108dBm
|
|
WCDMA1900: ≤-109dBm
|
|
WCDMA900 : ≤-109dBm
|
|
|
|
|
|
GENERAL
|
|
Transmit Power
|
UMTS2100/1900/900:Power
Class 3 (+24dBm +2.5/-1.5dBm)
EDGE 900MHz: Power
Class E2 (+27dBm +4.5/-1.5dBm)
EDGE 1800MHz/1900MHz: Power Class E2 (+26dBm +4.5/-2.5dBm)
|
|
Receiving Sensitivity
|
WCDMA2100:
≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900 : ≤-109dBm
GSM900/1800/1900:
≤-107dBm
|
|
Operating Temperature
|
-30℃ to +75℃
|
|
Operating Voltage
|
DC 3.3V-4.2V(3.8V is
recommended)
|
|
Operating Current
|
Peak Current About 0.6A
|
|
Average Current
|
About 540mA@UMTS
2100 About 239mA@GSM 900
|
|
Standby Current
|
About 5mA@UMTS About
5mA@GSM
|
|
(U)SIM/SIMU
|
Standard SIM card interface 3V SIM card and 1.8V SIM card
|
|
UART Interface
|
8-wires UART
|
|
Weight(With Battery)
|
About 194g
|
POC Network WCDMA 3G/2G Radio
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
